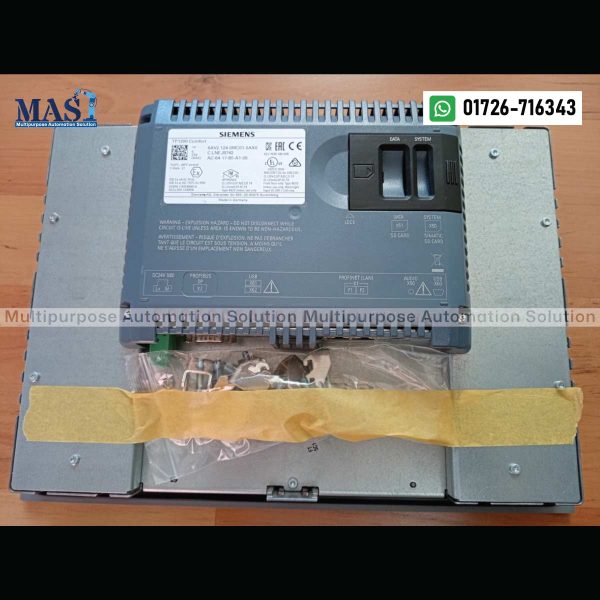

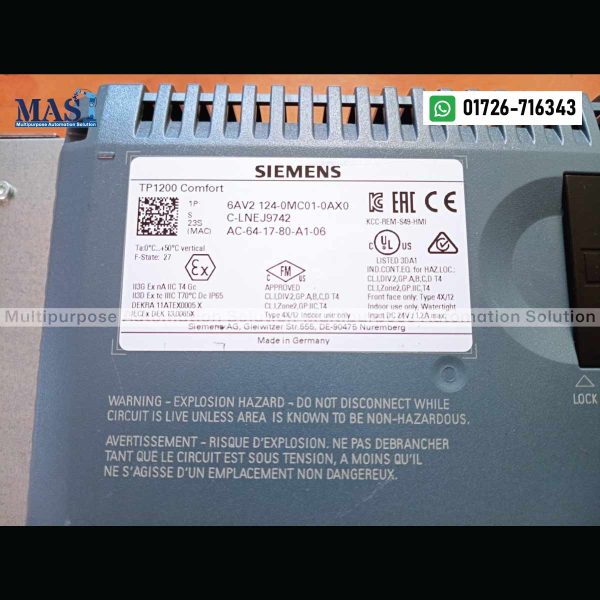

Siemens HMI SIMATIC TP1200 Comfort (6AV2124-0MC01-0AX0) – 12-inch Widescreen TFT Touch Panel – Buy in Bangladesh

Achieve high-performance visualization and operator control for your industrial processes with the Siemens HMI SIMATIC TP1200 Comfort (6AV2124-0MC01-0AX0). This state-of-the-art Comfort Panel features a large 12-inch widescreen TFT display with vibrant 16 million colors and intuitive touch operation. Engineered for demanding HMI tasks, it offers extensive functionality, robust communication options including PROFINET and MPI/PROFIBUS DP, and is designed for seamless integration with SIMATIC S7-1200/1500 PLCs. Available at Multipurpose Automation Solution in Gazipur, Dhaka Division, Bangladesh.

Key Features & Specifications of the Siemens HMI SIMATIC TP1200 Comfort (6AV2124-0MC01-0AX0):

• Model: SIMATIC TP1200 Comfort
• Part Number: 6AV2124-0MC01-0AX0
• Display Size: 12.1-inch Widescreen TFT LCD
• Display Type: Color TFT with LED backlight
• Colors: 16 million colors
• Resolution (Pixels): 1280 x 800 pixels (WXGA)
• Control Elements: High-resolution resistive analog touch screen
• CPU: X86-compatible processor
• Configuration Memory: 12 MB (for user projects)
• Operating System: Windows CE 6.0
• Communication Ports:
  • PROFINET Interface: 1 x RJ45 (10/100 Mbit/s, Integrated 2-port switch)
  • MPI/PROFIBUS DP Interface: 1 x RJ45 (supporting MPI/PROFIBUS DP, up to 12 Mbit/s)
  • USB Host: 2 x USB 2.0 (Type A)
  • USB Device: 1 x USB Mini-B (for project transfer)
• Real-Time Clock (RTC): Yes, with battery backup (approx. 6 years life)
• Audio Output: Buzzer
• Power Supply: 24V DC (19.2 to 28.8 V DC)
• Current Consumption: Max. 0.85 A (at 24V DC)
• Front Panel Protection: IP65 (front) / IP20 (rear)
• Cooling Method: Fan-less (Natural Air Circulation)
• Operating Temperature: 0°C to 50°C (32°F to 122°F)
• Storage/Transport Temperature: -20°C to 60°C (-4°F to 140°F)
• Configuration Software: Configurable from WinCC Comfort V11 (TIA Portal) or higher.
• Key Features:
  • High-performance visualization for complex applications.
  • PROFIenergy function for energy management during idle times.
  • Integrated system diagnostics for efficient troubleshooting.
  • Archiving, logging, recipe management, and scripting capabilities (VB scripts).
  • Viewers for plant documentation (e.g., PDF) and internet websites.
  • Mountable horizontally or vertically.
  • Automatic backup of process-relevant data.
• Dimensions (W x H x D): 330 mm x 241 mm x 70.5 mm
• Mounting Cutout (W x H): 310 mm x 221 mm
• Weight: Approx. 3.46 kg
• Certifications: CE, UL, ATEX, IECEx, KCC, FM Class I Div. 2, Marine approvals.

Why Choose the Siemens HMI SIMATIC TP1200 Comfort (6AV2124-0MC01-0AX0) from Multipurpose Automation Solution in Bangladesh?

At Multipurpose Automation Solution, located in Gazipur, Dhaka Division, Bangladesh, we provide genuine and high-quality industrial automation products. Choosing the Siemens HMI SIMATIC TP1200 Comfort from us ensures:

• Best Price in Bangladesh: Contact us directly to get the BEST PRICE for the Siemens HMI SIMATIC TP1200 Comfort in the Bangladesh market. We are committed to offering competitive pricing for this advanced HMI.
• Superior Performance: With a powerful processor, high-resolution display, and extensive memory, it handles complex visualization tasks and demanding applications with ease.
• Versatile Communication: Equipped with PROFINET and MPI/PROFIBUS DP, it ensures flexible connectivity to a wide range of Siemens PLCs (S7-300/400, S7-1200/1500) and other automation devices.
• Advanced Features: Benefit from functionalities like PROFIenergy for energy saving, comprehensive diagnostics, archiving, and scripting, enhancing your control system’s capabilities.
• Robust Industrial Design: With IP65 front panel protection and a fan-less design, it is built to withstand harsh industrial environments, ensuring long-term reliability.
• Local Availability & Support: Being based in Gazipur, we offer convenient access to this cutting-edge HMI, along with expert technical support for configuration, integration, and troubleshooting to ensure seamless project execution.

Applications:

The Siemens HMI SIMATIC TP1200 Comfort (6AV2124-0MC01-0AX0) is ideally suited for a wide range of industrial applications in Bangladesh requiring advanced visualization and operator control, including:

• Machine control and process visualization in complex manufacturing lines (e.g., automotive, food & beverage, pharmaceuticals, packaging).
• Centralized control and monitoring of production facilities and plant sections.
• Applications demanding high data throughput, extensive archiving, and comprehensive alarm management.
• Integration with modern Siemens SIMATIC S7-1200/1500 PLCs via PROFINET.
• Industries requiring robust and reliable HMI solutions for continuous operation.

Price and Availability in Bangladesh:

For the BEST PRICE and current availability of the Siemens HMI SIMATIC TP1200 Comfort (6AV2124-0MC01-0AX0), please CALL US at Multipurpose Automation Solution in Gazipur, Dhaka Division, Bangladesh. Our team is ready to provide you with a competitive quote and discuss the suitability of this powerful HMI for your specific requirements.
