WEINVIEW HMI MT6071iP – 7-inch Touch Screen HMI with USB Client – Buy in Bangladesh

Experience reliable and intuitive control with the WEINVIEW HMI MT6071iP. This 7-inch Human Machine Interface provides a clear 800×480 resolution display and a responsive touchscreen, making it an excellent choice for various industrial automation applications. It offers essential connectivity for PLC communication and program download. Available at Multipurpose Automation Solution in Gazipur, Dhaka Division, Bangladesh.

Key Features & Specifications of the WEINVIEW HMI MT6071iP:

• Model: MT6071iP
• Display Size: 7-inch widescreen TFT LCD
• Resolution: 800 x 480 pixels
• Colors: 16.7 Million colors (24-bit)
• Brightness: 300 cd/m² (some variations may have 350 cd/m²)
• Contrast Ratio: 500:1
• Processor: 32-bit RISC Cortex-A8 600MHz
• Memory: 128MB Flash, 128MB RAM
• Touchscreen: 4-wire analog resistive

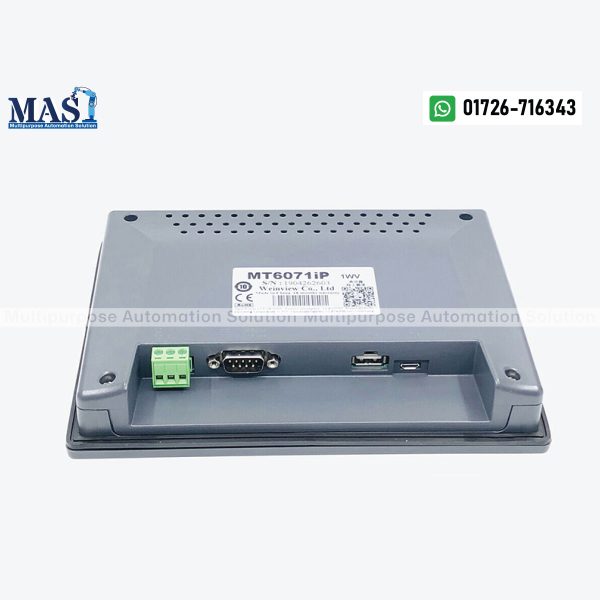

• Communication Ports:
  • COM1: RS-232
  • COM2: RS-485 (2W/4W)
  • USB Host port x 1 (USB 2.0)
  • USB Client port x 1 (Micro USB 2.0 for program download)
  • Ethernet: Not applicable (This model typically does NOT have a built-in Ethernet port. For Ethernet, consider ‘iE’ series models like MT8071iE or MT8072iP.)
• Real-Time Clock (RTC): Built-in
• Power Supply: 10.5~28V DC (Built-in power isolation)
• Power Consumption: Typically 500mA @ 24VDC
• Front Panel Protection: NEMA4 / IP65 Compliant (for protection against dust and water jets)
• PCB Coating: Not typically present (Please verify specific datasheet if crucial for your environment)
• Cooling System: Fan-less
• Operating Temperature: 0°C to 50°C (32°F to 122°F)
• Software: Programmed with EasyBuilder Pro.
• Compact Design: Designed for panel mounting with optimized dimensions (approx. 200.4 x 146.5 x 34 mm).

Why Choose the WEINVIEW HMI MT6071iP from Multipurpose Automation Solution in Bangladesh?

At Multipurpose Automation Solution, located in Gazipur, Dhaka Division, Bangladesh, we provide genuine and high-quality industrial automation products. Choosing the WEINVIEW HMI MT6071iP from us ensures:

• Best Price in Bangladesh: Contact us directly to get the BEST PRICE for the WEINVIEW HMI MT6071iP in the Bangladesh market. We are committed to offering competitive pricing.
• Clear and Responsive Display: The 7-inch display with 800×480 resolution and 16.7 million colors provides good visual feedback for your control applications.
• Reliable Performance: This HMI is designed for industrial environments, ensuring stable and reliable operation for your control systems with its 600MHz processor.
• Local Availability & Support: Being based in Gazipur, we offer convenient access to this essential HMI, along with technical support to assist with selection, programming, and integration into your existing systems.
• Cost-Effective Solution: The MT6071iP offers a great balance of features and performance for applications that do not require an integrated Ethernet port, providing a more economical option.
• User-Friendly Programming: Compatible with EasyBuilder Pro software, HMI screen design and project management are streamlined and intuitive.

Applications:

The WEINVIEW HMI MT6071iP is well-suited for a broad spectrum of industrial applications in Bangladesh, including:

• Machine control and simple process visualization.
• Operator interface for various industrial equipment.
• Data display and alarm handling in local control panels.
• Integration with PLCs and other devices via serial communication (RS-232/RS-485).
• Applications where a compact HMI with solid performance and reliable serial communication is key, without the need for integrated Ethernet.

Price and Availability in Bangladesh:

For the BEST PRICE and current availability of the WEINVIEW HMI MT6071iP, please CALL US at Multipurpose Automation Solution in Gazipur, Dhaka Division, Bangladesh. Our team is ready to provide you with a competitive quote and assist with your HMI requirements.
