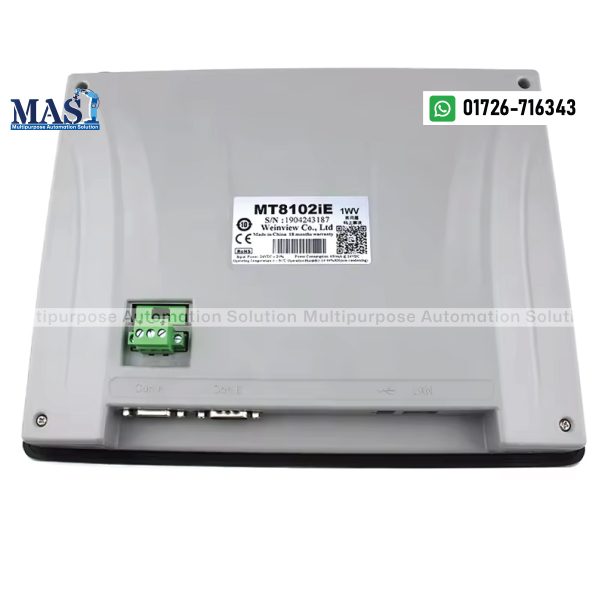

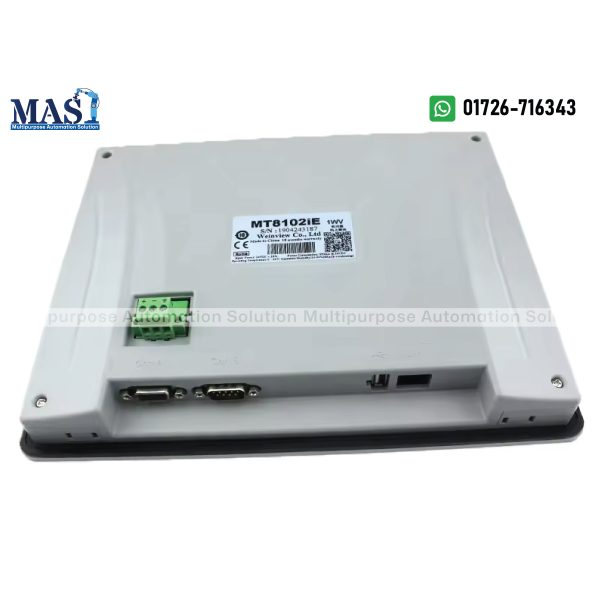

WEINVIEW HMI MT8102iE – 10.1-inch Advanced Touch Screen HMI with Ethernet – Buy in Bangladesh

Step into advanced industrial visualization and control with the WEINVIEW HMI MT8102iE. This 10.1-inch Human Machine Interface offers a high-resolution display, a powerful processor, and integrated Ethernet capabilities, making it an excellent choice for complex and networked automation systems. Available at Multipurpose Automation Solution in Gazipur, Dhaka Division, Bangladesh.

Key Features & Specifications of the WEINVIEW HMI MT8102iE:

• Model: MT8102iE
• Display Size: 10.1-inch widescreen TFT LCD
• Resolution: 1024 x 600 pixels
• Colors: 16.7 Million colors (24-bit)
• Brightness: 350 cd/m²
• Processor: 32-bit RISC Cortex-A8 600MHz
• Memory: 128MB Flash, 128MB DDR2 RAM
• Touchscreen: 4-wire analog resistive
• Communication Ports:
  • COM1: RS-232
  • COM2: RS-485 (2W/4W)
  • COM3: RS-485 (2W) / RS-232 (Note: COM port configurations can be flexible, refer to datasheet for specifics)
  • Ethernet: 10/100 Base-T x 1 (RJ45 port)
  • USB Host port x 1 (USB 2.0)
• Real-Time Clock (RTC): Built-in
• Power Supply: 24V DC ±20% (Built-in power isolation for enhanced reliability)
• Power Consumption: Typically 600mA to 650mA @ 24VDC
• Front Panel Protection: NEMA4 / IP65 Compliant (for protection against dust and water jets)
• PCB Coating: Yes (for enhanced reliability in harsh environments)
• Cooling System: Fan-less
• Operating Temperature: 0°C to 50°C (32°F to 122°F)
• Software: Programmed with EasyBuilder Pro.
• Compact Design: Designed for panel mounting with optimized dimensions.

Why Choose the WEINVIEW HMI MT8102iE from Multipurpose Automation Solution in Bangladesh?

At Multipurpose Automation Solution, located in Gazipur, Dhaka Division, Bangladesh, we provide genuine and high-quality industrial automation products. Choosing the WEINVIEW HMI MT8102iE from us ensures:

• Best Price in Bangladesh: Contact us directly to get the BEST PRICE for the WEINVIEW HMI MT8102iE in the Bangladesh market. We are committed to offering competitive pricing.
• High-Resolution and Vibrant Display: The 10.1-inch screen with 1024×600 resolution and 16.7 million colors provides crisp and detailed visual feedback for complex graphics and data.
• Powerful Performance: Equipped with a 600MHz Cortex-A8 processor, this HMI ensures fast boot-up times, smooth screen transitions, and efficient data processing.
• Local Availability & Support: Being based in Gazipur, we offer convenient access to this essential HMI, along with technical support to assist with selection, programming, and integration.
• Integrated Ethernet & Versatile Connectivity: The built-in Ethernet port enables seamless networking with PLCs, remote monitoring, and data exchange. Multiple serial ports further enhance connectivity options.
• Robust Industrial Design: With IP65 front panel protection and PCB coating, the MT8102iE is built to withstand challenging industrial environments.

Applications:

The WEINVIEW HMI MT8102iE is well-suited for a broad spectrum of demanding industrial applications in Bangladesh, including:

• Advanced machine control and intricate process visualization
• SCADA systems and centralized control rooms
• Factory automation lines requiring networked HMIs
• Data acquisition, logging, and historical trending with network access
• Operator interface for large and complex industrial machinery
• Building automation and energy management systems.

Price and Availability in Bangladesh:

For the BEST PRICE and current availability of the WEINVIEW HMI MT8102iE, please CALL US at Multipurpose Automation Solution in Gazipur, Dhaka Division, Bangladesh. Our team is ready to provide you with a competitive quote and assist with your HMI requirements.
