Siemens HMI SIMATIC KTP600 Basic Color DP (6AV6647-0AC11-3AX0) – 5.7-inch Color Key/Touch Panel – Buy in Bangladesh

For reliable and cost-effective operator control and monitoring in existing PROFIBUS-based systems, consider the Siemens HMI SIMATIC KTP600 Basic Color DP (6AV6647-0AC11-3AX0). This 1st generation Basic Panel combines a clear 5.7-inch TFT color display with 256 colors, offering both intuitive touch operation and tactile feedback via 6 integrated function keys. Equipped with an MPI/PROFIBUS DP interface, it provides robust communication for a wide range of basic HMI applications. Available at Multipurpose Automation Solution in Gazipur, Dhaka Division, Bangladesh.

Key Features & Specifications of the Siemens HMI SIMATIC KTP600 Basic Color DP (6AV6647-0AC11-3AX0):

• Model: SIMATIC KTP600 Basic Color DP (Key/Touch Panel 600 Basic DP)
• Part Number: 6AV6647-0AC11-3AX0
• Display Size: 5.7-inch TFT LCD
• Display Type: Color TFT with LED backlight
• Colors: 256 colors
• Resolution (Pixels): 320 x 240 pixels (QVGA)
• Control Elements:
  • Resistive analog touch screen
  • 6 freely configurable function keys
• CPU: 32-bit RISC processor (typ. 75 MHz)
• Memory for User Data: 1 MB (Flash / RAM)
• Operating System: Proprietary

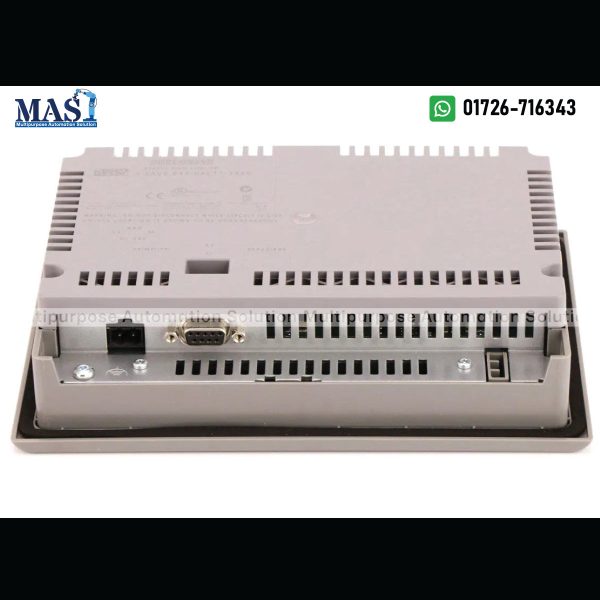

• Communication Ports:
  • 1 x MPI/PROFIBUS DP interface (RS-485, up to 187.5 kbit/s)
  • Note: This model does NOT feature an Ethernet (PROFINET) interface or USB port.
• Real-Time Clock (RTC): Software clock (not hardware-based, may require synchronization from PLC)
• Audio Output: Buzzer
• Power Supply: 24V DC (19.2 V to 28.8 V DC)
• Current Consumption (rated value): Max. 0.35 A (typ. active power input 9 W)
• Front Panel Protection: IP65 (front) / IP20 (rear)
• Cooling Method: Fan-less (Natural Air Circulation)
• Operating Temperature: 0°C to 50°C (32°F to 122°F)
• Storage/Transport Temperature: -20°C to 60°C (-4°F to 140°F)
• Configuration Software: Configurable with WinCC flexible 2008 SP2 Compact or higher, or WinCC Basic V11 (TIA Portal) or higher.
• Key Features:
  • Cost-effective solution for basic visualization tasks.
  • Combined touch and key operation for flexibility.
  • Supports basic HMI functions like alarm logging, recipe management, and language switching.
  • Suitable for integration with SIMATIC S7-300/400 and S7-1200 (via MPI/DP) PLCs.
• Dimensions (W x H x D): 214 mm x 158 mm x 44 mm
• Mounting Cutout (W x H): 197 mm x 141 mm
• Weight: Approx. 1.07 kg
• Certifications: CE, cULus, RCM (formerly C-Tick).

Why Choose the Siemens HMI SIMATIC KTP600 Basic Color DP from Multipurpose Automation Solution in Bangladesh?

At Multipurpose Automation Solution, located in Gazipur, Dhaka Division, Bangladesh, we specialize in providing genuine and high-quality industrial automation products, including essential legacy components for maintaining operational systems. Choosing the Siemens HMI SIMATIC KTP600 Basic Color DP from us ensures:

• Best Price in Bangladesh: Contact us directly to get the BEST PRICE for the Siemens HMI SIMATIC KTP600 Basic Color DP in the Bangladesh market. We are committed to offering competitive pricing for this specialized and often critical spare part.
• Authentic Siemens Product: Guarantee of original Siemens quality, ensuring compatibility and reliable performance when replacing existing units.
• Perfect for Legacy Systems: This HMI is a crucial component for maintaining and repairing older SIMATIC S7-300/400 and PROFIBUS-based systems, extending their operational life.
• Local Availability & Expert Support: Being based in Gazipur, we offer convenient access to this HMI, along with technical understanding to assist with compatibility and integration within your existing Siemens control systems.

Applications:

The Siemens HMI SIMATIC KTP600 Basic Color DP (6AV6647-0AC11-3AX0) is ideally suited for:

• Replacing failed KTP600 Basic Color DP units in existing industrial machines and plants.
• Maintenance and upgrades of older automation systems utilizing Siemens S7-300/400 PLCs with PROFIBUS DP communication.
• Basic operator control and monitoring applications where the existing infrastructure relies on PROFIBUS DP and a cost-effective color HMI is required.

Price and Availability in Bangladesh:

For the BEST PRICE and current availability of the Siemens HMI SIMATIC KTP600 Basic Color DP (6AV6647-0AC11-3AX0), please CALL US at Multipurpose Automation Solution in Gazipur, Dhaka Division, Bangladesh. Our team is ready to provide you with a competitive quote and discuss the suitability of this HMI for your specific requirements.
