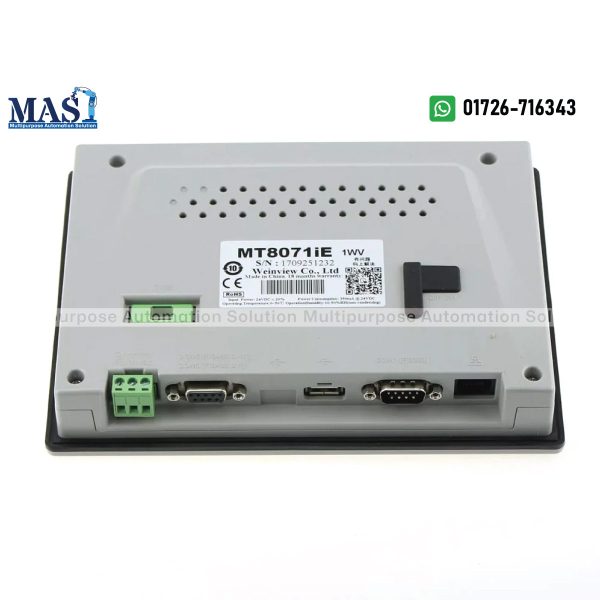

WEINVIEW HMI MT8071iE – 7-inch Advanced Touch Screen HMI with Ethernet – Buy in Bangladesh

Enhance your industrial control and monitoring systems with the sophisticated WEINVIEW HMI MT8071iE. This 7-inch Human Machine Interface features a high-resolution display, a powerful processor, and integrated Ethernet connectivity, making it a robust solution for modern networked automation applications. Available at Multipurpose Automation Solution in Gazipur, Dhaka Division, Bangladesh.

Key Features & Specifications of the WEINVIEW HMI MT8071iE:

• Model: MT8071iE
• Display Size: 7-inch widescreen TFT LCD
• Resolution: 800 x 480 pixels
• Colors: 16.7 Million colors (24-bit)
• Brightness: 400 cd/m²
• Contrast Ratio: 800:1
• Processor: 32-bit RISC 600MHz (typically Cortex-A8)
• Memory: 128MB Flash, 128MB RAM
• Touchscreen: 4-wire analog resistive
• Communication Ports:
  • COM1: RS-232
  • COM2: RS-485 (2W/4W), supports MPI 187.5K
  • COM3: RS-485 (2W) (Note: Some configurations might allow COM3 as RS-232)
  • Ethernet: 10/100 Base-T x 1 (RJ45 port)
  • USB Host port x 1 (USB 2.0)
• Real-Time Clock (RTC): Built-in
• Power Supply: 24V DC ±20% (Built-in power isolation for enhanced reliability)
• Power Consumption: Typically 450mA @ 24VDC
• Front Panel Protection: NEMA4 / IP65 Compliant (for protection against dust and water jets)
• PCB Coating: Yes (ensures high reliability against corrosion in harsh environments)
• Cooling System: Fan-less
• Operating Temperature: 0°C to 50°C (32°F to 122°F)
• Software: Programmed with EasyBuilder Pro V4.10.04 or later.
• Compact Design: Designed for panel mounting with optimized dimensions (approx. 200.3 x 146.3 x 34 mm).

Why Choose the WEINVIEW HMI MT8071iE from Multipurpose Automation Solution in Bangladesh?

At Multipurpose Automation Solution, located in Gazipur, Dhaka Division, Bangladesh, we provide genuine and high-quality industrial automation products. Choosing the WEINVIEW HMI MT8071iE from us ensures:

• Best Price in Bangladesh: Contact us directly to get the BEST PRICE for the WEINVIEW HMI MT8071iE in the Bangladesh market. We are committed to offering competitive pricing.
• High-Resolution and Vibrant Display: The 7-inch screen with 800×480 resolution and 16.7 million colors provides crisp, clear, and detailed visual feedback for various control screens and data.
• Powerful Processing: Equipped with a 600MHz RISC processor, this HMI ensures fast boot-up times, smooth screen transitions, and efficient execution of your HMI applications.
• Local Availability & Support: Being based in Gazipur, we offer convenient access to this essential HMI, along with technical support to assist with selection, programming, and integration into your existing or new systems.
• Integrated Ethernet & Versatile Connectivity: The built-in Ethernet port allows for seamless networking with PLCs and other devices, enabling remote monitoring, data exchange, and network-based control. Multiple serial ports (RS-232/RS-485) provide broad compatibility.
• Robust Industrial Design: With IP65 front panel protection and PCB coating, the MT8071iE is built to withstand challenging industrial environments and ensure long-term reliability.

Applications:

The WEINVIEW HMI MT8071iE is well-suited for a broad spectrum of demanding industrial applications in Bangladesh, including:

• Machine control and intricate process visualization
• Factory automation lines requiring networked HMIs
• Data acquisition, logging, and historical trending with network access
• Operator interface for small to medium-sized industrial machinery
• Building automation and energy management systems
• Applications requiring communication with Siemens PLCs via MPI protocol (via COM2 RS-485 2W support).

Price and Availability in Bangladesh:

For the BEST PRICE and current availability of the WEINVIEW HMI MT8071iE, please CALL US at Multipurpose Automation Solution in Gazipur, Dhaka Division, Bangladesh. Our team is ready to provide you with a competitive quote and assist with your HMI requirements.
