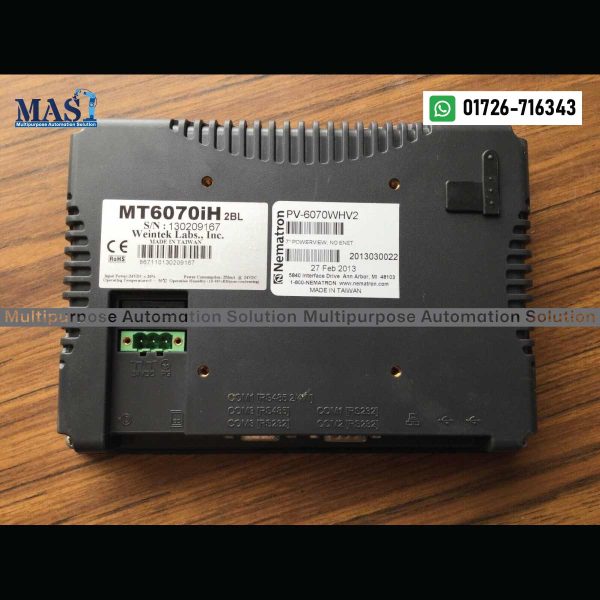

Weintek HMI MT6070iH (Also known as WeinView HMI MT6070iH) – 7-inch Widescreen Industrial Ethernet & Serial Touch Panel – Buy in Bangladesh

For efficient and cost-effective visualization and control in a wide range of industrial automation applications, the Weintek HMI MT6070iH (often referred to as WeinView) offers a powerful and compact solution. This Human Machine Interface features a vibrant 7-inch widescreen TFT LCD display with 65,536 colors, providing clear and intuitive process visualization through its responsive resistive touch screen. Equipped with versatile communication options including multiple serial ports (RS-232, RS-485 2W/4W) and a USB host/client, it ensures flexible connectivity to various PLCs and industrial devices. Available at Multipurpose Automation Solution in Gazipur, Dhaka Division, Bangladesh.

Key Features & Specifications of the Weintek HMI MT6070iH:

• Model: MT6070iH
• Manufacturer: Weintek (often referred to as WeinView in some regions)
• Display Size: 7-inch Widescreen TFT LCD
• Display Type: Color TFT with LED backlight
• Colors: 65,536 colors
• Resolution (Pixels): 800 x 480 pixels (WVGA)
• Control Elements:
  • 4-wire resistive analog touch screen
• Processor: 32-bit RISC CPU, 400 MHz
• Memory:
  • 64 MB DDR2 RAM on board
  • 128 MB Flash Memory on board
• Operating System: Proprietary (optimized for HMI applications)
• Communication Ports:
  • COM1: RS-232 / RS-485 (2-wire/4-wire selectable) – Supports MPI 187.5K (when using RS485).
  • COM2: RS-232
  • COM3: RS-232 / RS-485 (2-wire)
  • 1 x USB Host 1.1 (Type A) for connecting peripheral devices (e.g., USB stick for data archiving/project transfer).
  • 1 x USB Client 2.0 (Mini-B) for PC connection (project download).
  • Note: This specific MT6070iH model typically does NOT have a built-in Ethernet port. (Some “iE” models like MT6071iE do).
• Real-Time Clock (RTC): Built-in
• Audio Output: Buzzer
• Power Supply: 24V DC (24 ±20% VDC)
• Power Consumption: Typ. 250mA @ 24VDC
• Front Panel Protection: NEMA4 / IP65 compliant front panel
• Cooling Method: Fan-less cooling system
• Operating Temperature: 0°C to 50°C (32°F to 122°F)
• Storage/Transport Temperature: -20°C to 60°C (-4°F to 140°F)
• Configuration Software: Programmed with Weintek’s EasyBuilder 8000 (V2.0.0 or later) or EasyBuilder Pro software (for compatible versions, though older iH models primarily use EB8000).
• Key Features:
  • High-resolution widescreen display for clear graphics and information.
  • Robust plastic molding housing for industrial environments.
  • Multiple serial ports provide extensive connectivity to various PLCs (Siemens, Mitsubishi, Delta, Omron, Allen-Bradley, etc.) using their respective drivers.
  • Supports a wide range of HMI functions including alarm management, recipe management, trend displays, and data logging.
  • Fan-less design ensures long-term reliability and low maintenance.
  • Supports USB for project transfer and data backup.
  • Built-in power isolator for enhanced stability.
• Dimensions (W x H x D): 200 mm x 146 mm x 42.5 mm
• Panel Cutout (W x H): 192 mm x 138 mm
• Weight: Approx. 0.85 kg
• Certifications: CE, UL (E248297).

Why Choose the Weintek HMI MT6070iH from Multipurpose Automation Solution in Bangladesh?

At Multipurpose Automation Solution, located in Gazipur, Dhaka Division, Bangladesh, we provide genuine and high-quality industrial automation products. Choosing the Weintek HMI MT6070iH from us ensures:

• Best Price in Bangladesh: Contact us directly to get the BEST PRICE for the Weintek HMI MT6070iH in the Bangladesh market. We are committed to offering competitive pricing for this widely used HMI for replacements.
• Reliable Replacement: As a discontinued model, its availability is crucial for maintaining existing automation systems. We strive to provide reliable units for your replacement needs.
• Cost-Effective Solution: Weintek HMIs are known for their competitive pricing, offering a strong feature set for the investment, even for older models.
• Versatile Serial Connectivity: The multiple serial ports make it highly adaptable for connecting to a diverse range of PLCs and devices that rely on RS-232 or RS-485 communication.
• Proven Performance: The MT6070iH has been a widely deployed HMI, demonstrating its robust performance in various industrial settings.
• Local Availability & Expert Support: Being based in Gazipur, we offer convenient access to this HMI, along with technical understanding to assist with compatibility and configuration within your existing automation setups.

Applications:

The Weintek HMI MT6070iH is ideally suited for a variety of industrial applications in Bangladesh where reliable and cost-effective human-machine interaction is required, particularly for:

• Replacement of failed MT6070iH units in existing machines and small-to-medium scale automation systems.
• Operator control panels for packaging machines, textile machinery, and general manufacturing equipment.
• Control interfaces for process control in sectors like water treatment, food & beverage, or pharmaceuticals, especially those relying on serial communication.
• Applications requiring basic data monitoring, alarm display, and recipe management.

Price and Availability in Bangladesh:

For the BEST PRICE and current availability of the Weintek HMI MT6070iH, please CALL US at Multipurpose Automation Solution in Gazipur, Dhaka Division, Bangladesh. Our team is ready to provide you with a competitive quote and discuss the suitability of this HMI for your specific requirements.
