WEIGHT TRANSMITTER MODEL: DY610(4~20mA) – High-Precision Load Cell Amplifier – Buy in Bangladesh

Achieve precise and reliable weight and force measurement with the WEIGHT TRANSMITTER MODEL: DY610(4~20mA). This compact and high-performance load cell amplifier is engineered to accurately convert the minute analog signals from load cells into a standard 4-20mA current output, making it ideal for seamless integration into PLCs, DCS, and other industrial control systems. With its robust design, integrated digital display, and user-friendly calibration features, the DY610 provides an efficient and cost-effective solution for various weighing, tension, and pressure measurement applications. Available at Multipurpose Automation Solution in Gazipur, Dhaka Division, Bangladesh.

Key Features & Specifications of the WEIGHT TRANSMITTER MODEL: DY610(4~20mA):

• Model: DY610 (Specifically configured for 4-20mA output)
• Manufacturer: Generic industrial electronic component supplier (common for high-value, cost-effective modules)
• Module Type: High-Precision Load Cell Amplifier / Weight Transmitter
• Function: Converts mV output from load cells into a stable, linearized 4-20mA analog signal.
• Display:
  • Integrated 6-digit Red LED display for clear indication of weight/force values.
  • Display Range: -99999 to 999999.
• Keypad: 3-key operation for convenient parameter settings and calibration (e.g., Tare, Zero, Calibration).
• Weighing Signal Input:
  • Input Signal Range: 0 ~ ±20mV (compatible with most standard strain gauge load cells).
  • Excitation Voltage: DC 5V (suitable for driving up to 4 load cells, 350Ω each).
• Accuracy: High precision with typical accuracy of ±0.2% FS ±1 digit, ensuring reliable measurements.
• Output Signal:
  • Analog Output: 1 x 4-20mA current output (standard industrial signal for control systems).
  • Other versions may support 0-5V, 0-10V, and RS485 (Modbus-RTU) outputs.
• Sampling Rate: Selectable sampling rates (e.g., 20 times/s, 80 times/s) for different application needs.
• Power Supply: DC 12-30V, offering flexibility for various power sources.
• Max. Power Consumption: Typically <1W, ensuring energy efficiency.
• Calibration Functions: Supports online calibration for zero and span adjustment directly from the keypad. Parameters like division value and decimal point position are settable.
• Advanced Features:
  • Adjustable digital filtering (from 1 to 99) to suppress environmental noise and vibration, ensuring stable readings.
  • Input overload protection and output short circuit protection for enhanced reliability and safety.
  • Robust power supply filtering to maintain signal stability.

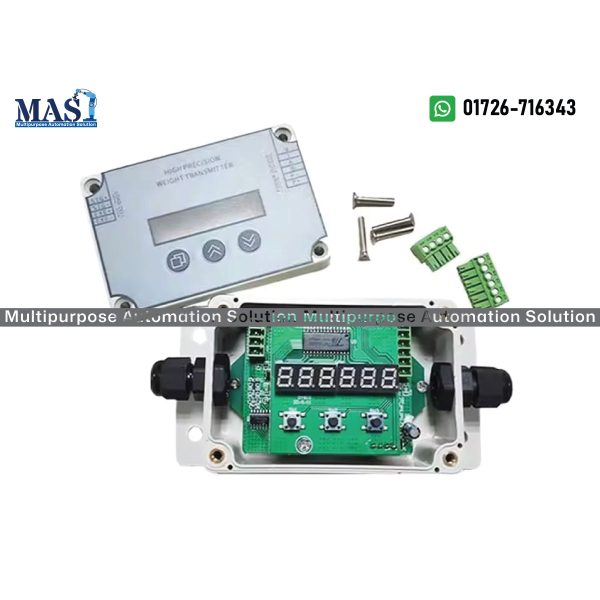

• Mounting: Compact module design, suitable for integration into control panels or enclosures (often via screws or a cutout).

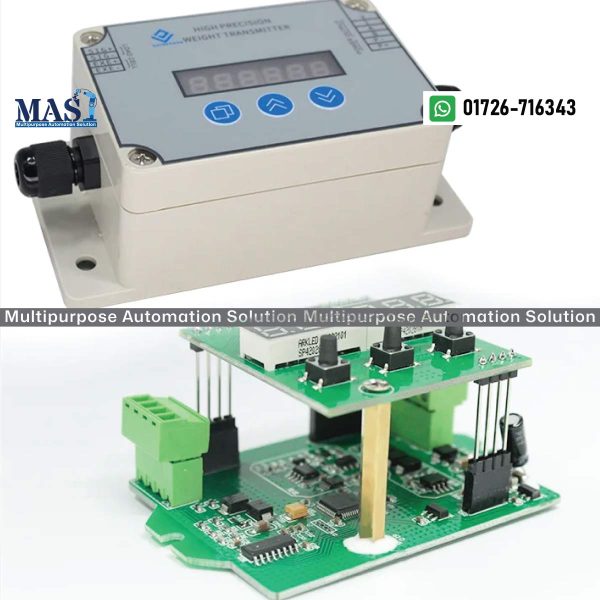

• Dimensions: Typically a compact PCB module, approx. 90mm x 52mm x 25mm.
• Operating Temperature: Wide operating temperature range, typically -20°C to 60°C.
• Humidity: <90% RH (non-condensing).

Why Choose the WEIGHT TRANSMITTER MODEL: DY610(4~20mA) from Multipurpose Automation Solution in Bangladesh?

At Multipurpose Automation Solution, located in Gazipur, Dhaka Division, Bangladesh, we are committed to providing reliable and cost-effective industrial automation components. Choosing the WEIGHT TRANSMITTER MODEL: DY610(4~20mA) from us offers:

• Exceptional Value: Available for just 7000 BDT, this transmitter offers a high-precision, feature-rich solution at a competitive price in the Bangladesh market.
• High Accuracy & Stability: The advanced signal processing and filtering ensure accurate and stable weight readings, crucial for precision applications.
• Seamless PLC Integration: The standard 4-20mA output allows for easy and reliable connection to any PLC or DCS system, simplifying automation setup.
• User-Friendly Operation: The integrated display and keypad make setup, calibration, and monitoring straightforward, reducing commissioning time.
• Robust & Reliable: Designed with industrial environments in mind, it includes protection features for consistent performance.
• Local Availability & Support: Being based in Gazipur, we offer convenient access to this essential weighing component, along with local technical support and assistance for its application and integration in your systems.

Applications:

The WEIGHT TRANSMITTER MODEL: DY610(4~20mA) is suitable for a wide range of industrial weighing, force, and tension measurement applications in Bangladesh, including:

• Industrial Scales: Platform scales, hopper scales, tank weighing systems.
• Batching & Filling: Automated control of material dispensing for precise ingredient measurement.
• Process Control: Integration into systems requiring real-time weight or force feedback.
• Tension/Pressure Measurement: Converting strain gauge sensor signals for various force monitoring tasks.
• Automated Equipment: Enhancing control accuracy in packaging machines, material handling, and testing equipment.
• PLC-Based Systems: Acting as a reliable front-end for analog input modules in automation panels.

Price and Availability in Bangladesh:

The WEIGHT TRANSMITTER MODEL: DY610(4~20mA) is available for 7000 BDT. To purchase or inquire further, please contact Multipurpose Automation Solution in Gazipur, Dhaka Division, Bangladesh. Our team is ready to assist you with your industrial weighing and automation needs.
