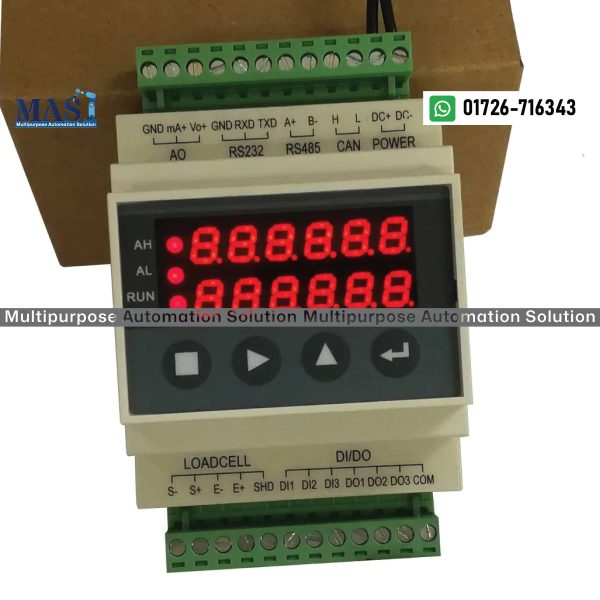

WEIGHT TRANSMITTER MODEL: BST106-M60S(L) – High-Precision Guide Rail Type – Buy in Bangladesh

Enhance the accuracy and control of your weighing and force measurement systems with the WEIGHT TRANSMITTER MODEL: BST106-M60S(L). This high-precision, guide-rail type weighing/force measuring control module, typically manufactured by Supmeter (Baoshen), is designed to convert raw load cell signals into stable, accurate digital and analog outputs. Featuring a powerful 32-bit ARM CPU, a high-resolution 24-bit A/D converter, versatile communication options, and integrated display, the BST106-M60S(L) is an ideal solution for a wide range of industrial weighing, batching, and force control applications requiring reliability and performance. Available at Multipurpose Automation Solution in Gazipur, Dhaka Division, Bangladesh.

Key Features & Specifications of the WEIGHT TRANSMITTER MODEL: BST106-M60S(L):

• Model: BST106-M60S(L)
• Manufacturer: Supmeter (Changsha Supmeter Technological Co.,Ltd. / Baoshen Weighing Apparatus Co., Ltd.)
• Module Type: Guide Rail (DIN Rail) Type Weighing / Force Measuring Control Module / Transmitter
• Applications: Weight/Force Display, Peak Value Detection & Display Holding, Auto Weight-checking, Setpoint Digital Output (DO), Analog Output (AO)/Digital Transmission.
• Display:
  • Integrated 6+6 Red LED digital tubes for clear display of English characters and digits.
  • Weight Display Range: -9,999 to +99,999.
  • Scale Capacity Setting Range: 1 to 99,999.
  • Display Resolution: 1/50,000.
  • Scale Division: Selectable (1, 2, 5, 10, 20, 50, 100, 200, 500).
• Keypad: 4-key English keypad for intuitive menu navigation and shortcut operations.
• Weighing Signal Input:
  • Excitation Voltage: DC5V / 120mA, capable of connecting up to 8 load cells (350Ω each).
  • Signal Input Range: 0 to 12.5mV.
  • Load Cell Output Sensitivity: 1.0 to 2.5mV/V.
  • A/D Conversion: High-precision 24-bit ∑-△A/D converter with 1/1,000,000 internal resolution.
  • Sampling Frequency: Selectable (e.g., 3200Hz, 1600Hz, 800Hz, 400Hz, 200Hz, 5Hz) for optimal response.
  • Filtering: Special anti-vibration digital filtering algorithm ensures stability and accuracy even with strong vibrations on the load receptor.
  • Precision: Zero Drift: ±0.1μV/ºC RTI; Gain Drift: ±5ppm/ºC; Non-linearity: 0.005% FS.
• Switch & Analog Signal Interface:
  • Digital Inputs (DI): 3 definable normally open switch inputs.
  • Digital Outputs (DO): 3 definable normally open transistor switch outputs (DC24V, 250mA).
  • Analog Output (AO): 1 optional & definable current signal output (0~20mA), Non-linearity: 0.05%FS.
  • Voltage Output (VO): 1 optional & definable voltage signal output (0~10V), Non-linearity: 0.05%FS.
• Digital Communication Interface:
  • COM1: RS232 port.
  • COM2: Optional RS485 port (supports Modbus RTU protocol for integration with PLCs, HMIs, etc.).
  • COM3: Optional CANBUS port.
  • Allows connection to Host IPC/PLC and LED Remote Displays.
• Calibration Functions: Includes Zero Calibration, Load Calibration, Data Calibration, Segmenting Span Correction, Segmenting Weight Calculation, Auto Zero Tracking, and more.
• Operating Voltage: DC24V ±20%.
• Max. Power Consumption: 3W.
• Processor: High-performance 32-bit ARM CPU with 48MHz clock speed.
• EMC Design: Engineered for high anti-jamming capability, making it suitable for demanding industrial environments.
• Mounting: Standard Guide Rail (DIN Rail) type installation.
• Outline Size (W x H x D): 71.5 mm x 115.6 mm x 57.9 mm (Compact design).
• Operating Temperature: -25ºC to +45ºC.
• Storage Temperature: -30ºC to +60ºC.
• Relative Humidity: Max. 85% RH (non-condensing).
• Weight: Approximately 167g.
• Certifications: CE certified.

Why Choose the WEIGHT TRANSMITTER MODEL: BST106-M60S(L) from Multipurpose Automation Solution in Bangladesh?

At Multipurpose Automation Solution, located in Gazipur, Dhaka Division, Bangladesh, we are committed to providing high-quality industrial weighing and automation components. Choosing the WEIGHT TRANSMITTER MODEL: BST106-M60S(L) from us offers:

• Competitive Pricing: Get this high-quality weight transmitter for only 13000 BDT. We strive to offer excellent value for advanced industrial products in the Bangladesh market.
• High Precision & Stability: Benefit from 24-bit A/D conversion and advanced anti-vibration filtering, ensuring highly accurate and stable weight readings even in challenging industrial conditions.
• Versatile I/O: With multiple digital inputs, digital outputs, and configurable analog (current/voltage) outputs, it provides comprehensive control and integration capabilities for various weighing applications.
• Flexible Communication: RS232, RS485 (Modbus RTU), and optional CANBUS ports enable seamless connectivity with PLCs, HMIs, industrial PCs, and other smart devices for integrated system control.
• Compact & Easy to Integrate: Its guide-rail mounting and compact dimensions allow for easy installation into control cabinets, saving valuable space.
• Reliable Performance: Built with an EMC-designed, robust 32-bit ARM CPU, this transmitter ensures reliable and consistent performance in demanding industrial environments.
• Local Availability & Support: Being based in Gazipur, we offer convenient access to this essential weighing component, along with local technical support and assistance for its application and integration in your systems.

Applications:

The WEIGHT TRANSMITTER MODEL: BST106-M60S(L) is suitable for a wide array of industrial weighing and force measurement applications in Bangladesh, including:

• Batching Systems: Precise control of material dispensing in mixing and blending processes.
• Filling Machines: Accurate filling by weight in packaging and bottling lines.
• Checkweighers: High-speed weight verification and sorting.
• Tank & Silo Weighing: Continuous monitoring of liquid or solid levels by weight.
• Conveyor Weighing: Real-time weight measurement on conveyor belts.
• Force Measurement Systems: Applications requiring precise force detection and control.
• Material Handling Automation: Integration into automated production lines for weight-based control.

Price and Availability in Bangladesh:

The WEIGHT TRANSMITTER MODEL: BST106-M60S(L) is available for 13000 BDT. To purchase or inquire further, please contact Multipurpose Automation Solution in Gazipur, Dhaka Division, Bangladesh. Our team is ready to assist you with your industrial weighing and automation needs.
