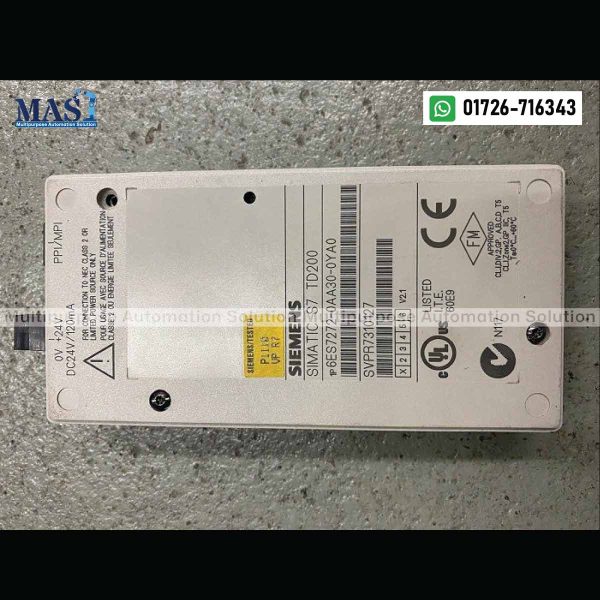

Siemens HMI TD 200 – 2-Line Text Display with Function Keys – Buy in Bangladesh

For straightforward monitoring and control with Siemens S7-200 PLCs, consider the Siemens HMI TD 200 Text Display. This compact operator interface features a 2-line backlit LCD, allowing for clear display of messages and basic parameter adjustments. Equipped with programmable function keys and reliable RS-485 communication, the TD 200 offers a cost-effective solution for simple industrial applications where a full graphic display is not required. Available at Multipurpose Automation Solution in Gazipur, Dhaka Division, Bangladesh.

Key Features & Specifications of the Siemens HMI TD 200:

• Model: TD 200 (Text Display 200) – Common Part Numbers: 6ES7272-0AA30-0YA0, 6ES7272-0AA30-0YA1
• Display Type: Backlit LCD
• Number of Lines: 2 lines
• Characters per Line: 20 characters per line (ASCII, Cyrillic); 10 characters per line (Chinese)
• Character Size: 5 mm
• Keys: 9 keys total (5 predefined context-sensitive keys, 4 user-programmable function keys)
• Communication Ports:
  • 1 x RS-485 (PPI interface for direct connection to S7-200 PLCs)
• Processor: (Optimized for text display operations)
• Memory: (Internal memory sufficient for message and parameter storage)
• Real-Time Clock (RTC): Not typically built-in to the display itself, depends on connected PLC.
• Power Supply: 24V DC (Power supplied via the S7-200 communications interface or optional external power supply unit)
• Current Consumption: Max. 120 mA (at 24V DC)
• Front Panel Protection: IP65 (at the front)
• Cooling Method: Fan-less (Natural Air Circulation)
• Operating Temperature: 0°C to 60°C (32°F to 140°F)
• Storage/Transport Temperature: -40°C to 70°C (-40°F to 158°F)
• Software: Configured using Siemens STEP 7-Micro/WIN software (compatible with S7-200 PLCs).
• Advanced Features:
  • Display of messages from the S7-200 CPU.
  • Adjustment of designated program variables.
  • Ability to force/unforce I/O points (with appropriate PLC programming).
  • Setting time and date for CPUs with real-time clocks.
  • Supports various character sets (ASCII, Cyrillic, Chinese).
• Dimensions (W x H x D): Approx. 148 mm x 76 mm x 27 mm
• Mounting Cutout (W x H): Approx. 138 mm x 68 mm
• Weight: Approx. 250 g
• Certifications: UL, CE (Specific certifications may vary by exact part number)

Note: The Siemens TD 200 is specifically designed for the SIMATIC S7-200 series PLCs, which are now an older generation of micro PLCs and have been largely superseded by the SIMATIC S7-1200 series. Consequently, the TD 200 is also a mature/discontinued product. For new automation projects, Siemens recommends current HMI options like the LOGO! Text Display (TDE) for LOGO! PLCs or SIMATIC Basic Panels (e.g., KTP400, KTP700) for S7-1200/1500 PLCs, which offer color displays, touch functionality, and Ethernet connectivity. The TD 200 is primarily used for replacement in existing S7-200 systems.

Why Choose the Siemens HMI TD 200 from Multipurpose Automation Solution in Bangladesh?

At Multipurpose Automation Solution, located in Gazipur, Dhaka Division, Bangladesh, we provide genuine and high-quality industrial automation products, including legacy components for existing systems. Choosing the Siemens HMI TD 200 from us ensures:

• Best Price in Bangladesh: Contact us directly to get the BEST PRICE for the Siemens HMI TD 200 in the Bangladesh market. We are committed to offering competitive pricing for these specialized components.
• Reliable Siemens Quality: Benefit from Siemens’ reputation for robust and dependable industrial control equipment, even for older product lines.
• Compatibility: Perfect for direct replacement in existing SIMATIC S7-200 systems.
• Compact & Functional: Provides essential text display and basic operator control in a small form factor, ideal for simple machine interfaces.
• Local Availability & Support: Being based in Gazipur, we offer convenient access to this HMI, along with technical understanding to assist with compatibility and basic integration for S7-200 systems.

Applications:

The Siemens HMI TD 200 is primarily suited for specific industrial applications in Bangladesh, including:

• Replacing existing TD 200 units in older SIMATIC S7-200 PLC-based control systems.
• Basic machine control and status display in simple, standalone applications.
• Small-scale process monitoring where only text-based feedback and limited user input are required.

Price and Availability in Bangladesh:

For the BEST PRICE and current availability of the Siemens HMI TD 200, please CALL US at Multipurpose Automation Solution in Gazipur, Dhaka Division, Bangladesh. Our team is ready to provide you with a competitive quote and discuss the suitability of this model for your specific requirements.
