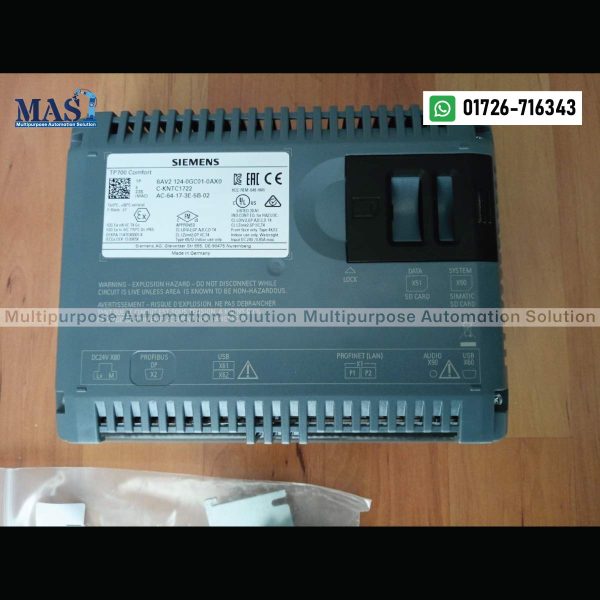

Siemens HMI SIMATIC TP700 Comfort (6AV2124-0GC01-0AX0) – 7-inch Widescreen TFT Touch Panel – Buy in Bangladesh

Optimize your industrial processes with the powerful and intuitive Siemens HMI SIMATIC TP700 Comfort (6AV2124-0GC01-0AX0). This versatile Comfort Panel features a crisp 7-inch widescreen TFT display with vibrant 16 million colors and highly responsive touch operation. Designed for high-performance HMI tasks, it offers comprehensive functionalities, robust communication options including PROFINET and MPI/PROFIBUS DP, and is engineered for seamless integration within the SIMATIC automation family. Available at Multipurpose Automation Solution in Gazipur, Dhaka Division, Bangladesh.

Key Features & Specifications of the Siemens HMI SIMATIC TP700 Comfort (6AV2124-0GC01-0AX0):

• Model: SIMATIC TP700 Comfort
• Part Number: 6AV2124-0GC01-0AX0
• Display Size: 7-inch Widescreen TFT LCD
• Display Type: Color TFT with LED backlight
• Colors: 16 million colors (16,777,216)
• Resolution (Pixels): 800 x 480 pixels (WVGA)
• Control Elements: High-resolution resistive analog touch screen
• CPU: X86-compatible processor
• Configuration Memory: 12 MB (for user projects)
• Operating System: Windows CE 6.0
• Communication Ports:
  • PROFINET Interface: 1 x RJ45 (10/100 Mbit/s, with integrated 2-port switch for line topology)
  • MPI/PROFIBUS DP Interface: 1 x RJ45 (supporting MPI/PROFIBUS DP, up to 12 Mbit/s)
  • USB Host: 2 x USB 2.0 (Type A)
  • USB Device: 1 x USB Mini-B (for project transfer)
  • SD Card Slot: 2 (for project backup, data archiving, and additional memory)
• Real-Time Clock (RTC): Yes, with battery backup (typically 6 years)
• Audio Output: Buzzer
• Power Supply: 24V DC (19.2 to 28.8 V DC)
• Current Consumption: Max. 0.5 A (at 24V DC)
• Active Power Input, typ.: 12 W
• Front Panel Protection: IP65 (front) / IP20 (rear)
• Cooling Method: Fan-less (Natural Air Circulation)
• Operating Temperature: 0°C to 50°C (32°F to 122°F)
• Storage/Transport Temperature: -20°C to 60°C (-4°F to 140°F)
• Configuration Software: Configurable from WinCC Comfort V11 (TIA Portal) or higher.
• Key Features:
  • High-performance visualization for complex applications.
  • PROFIenergy function for intelligent energy management during breaks.
  • Integrated system diagnostics for efficient troubleshooting and error handling.
  • Extensive functionality: archiving, logging, recipe management, and scripting capabilities (VB scripts).
  • Viewers for plant documentation (e.g., PDF) and internet websites.
  • Flexible mounting: can be installed horizontally or vertically.
  • Automatic backup of process-relevant data.
• Dimensions (W x H x D): 214 mm x 158 mm x 63 mm
• Mounting Cutout (W x H): 197 mm x 141 mm
• Weight: Approx. 1.6 kg
• Certifications: CE, UL, ATEX, IECEx, KCC, FM Class I Div. 2, Marine approvals.

Why Choose the Siemens HMI SIMATIC TP700 Comfort (6AV2124-0GC01-0AX0) from Multipurpose Automation Solution in Bangladesh?

At Multipurpose Automation Solution, located in Gazipur, Dhaka Division, Bangladesh, we provide genuine and high-quality industrial automation products. Choosing the Siemens HMI SIMATIC TP700 Comfort from us ensures:

• Best Price in Bangladesh: Contact us directly to get the BEST PRICE for the Siemens HMI SIMATIC TP700 Comfort in the Bangladesh market. We are committed to offering competitive pricing for this advanced HMI.
• Exceptional Performance: With a powerful processor and vibrant high-resolution display, it delivers smooth operation and clear visualization for a wide range of industrial applications.
• Robust Communication: Equipped with PROFINET and MPI/PROFIBUS DP, along with a 2-port integrated switch, it offers flexible and reliable connectivity to various Siemens PLCs (S7-300/400, S7-1200/1500) and other automation devices.
• Advanced Features: Benefit from functionalities like PROFIenergy for energy savings, comprehensive system diagnostics, extensive archiving, and scripting capabilities, enhancing the overall efficiency and intelligence of your control system.
• Durable Industrial Design: With IP65 front panel protection and a fan-less construction, it is built to withstand harsh industrial environments, ensuring long-term reliability and minimal maintenance.
• Local Availability & Expert Support: Being based in Gazipur, we offer convenient access to this cutting-edge HMI, coupled with expert technical support for seamless configuration, integration, and troubleshooting, helping you achieve optimal performance in your automation projects.

Applications:

The Siemens HMI SIMATIC TP700 Comfort (6AV2124-0GC01-0AX0) is ideally suited for a wide range of industrial applications in Bangladesh requiring advanced visualization and operator control, including:

• Machine control and process visualization in diverse industries such as manufacturing, food & beverage, pharmaceuticals, packaging, and textiles.
• Centralized control and monitoring of production lines and plant sections.
• Applications demanding high data throughput, extensive archiving, and comprehensive alarm management.
• Seamless integration with modern Siemens SIMATIC S7-1200/1500 PLCs via PROFINET for high-speed data exchange.
• Industrial environments where a robust, reliable, and feature-rich HMI is essential for continuous operation and efficiency.

Price and Availability in Bangladesh:

For the BEST PRICE and current availability of the Siemens HMI SIMATIC TP700 Comfort (6AV2124-0GC01-0AX0), please CALL US at Multipurpose Automation Solution in Gazipur, Dhaka Division, Bangladesh. Our team is ready to provide you with a competitive quote and discuss the suitability of this powerful HMI for your specific requirements.
