Siemens HMI SIMATIC KTP700 Basic (6AV2123-2GB03-0AX0) – 7-inch Widescreen PROFINET Key/Touch Panel – Buy in Bangladesh

For efficient and intuitive operator control and monitoring of compact machines and plants, choose the Siemens HMI SIMATIC KTP700 Basic (6AV2123-2GB03-0AX0). This 2nd Generation Basic Panel features a vibrant 7-inch widescreen TFT display with 65,536 colors, offering both precise touch operation and tactile feedback via 8 integrated function keys. With its standard PROFINET (Ethernet) interface, it provides high-speed and reliable connectivity, making it an ideal entry-level device for a wide range of HMI applications in modern automation systems. Available at Multipurpose Automation Solution in Gazipur, Dhaka Division, Bangladesh.

Key Features & Specifications of the Siemens HMI SIMATIC KTP700 Basic (6AV2123-2GB03-0AX0):

• Model: SIMATIC KTP700 Basic (Key/Touch Panel 700 Basic PN)
• Part Number: 6AV2123-2GB03-0AX0
• Display Size: 7-inch Widescreen TFT LCD
• Display Type: Color TFT with LED backlight
• Colors: 65,536 colors
• Resolution (Pixels): 800 x 480 pixels (WVGA)
• Control Elements:
  • Resistive analog touch screen
  • 8 freely configurable function keys
• CPU: ARM processor
• Memory for User Data: 10 MB
• Operating System: Proprietary (optimised for HMI applications)

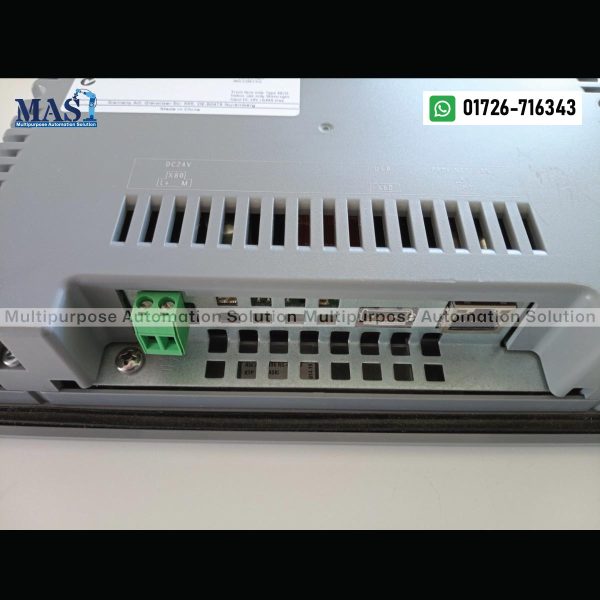

• Communication Ports:
  • 1 x PROFINET (Ethernet) interface (RJ45, 10/100 Mbit/s)
  • 1 x USB Host 2.0 (Type A) for connecting peripheral devices (e.g., mouse, keyboard, USB stick for data archiving/project transfer).
  • Note: This model does NOT have an integrated PROFIBUS DP interface (for that, see the 6AV2123-2GA03-0AX0 model). It does support MPI/PROFIBUS DP via an external adapter.
• Real-Time Clock (RTC): Yes, hardware clock, retentive (typically 6 weeks backup duration)
• Audio Output: Buzzer
• Power Supply: 24V DC (19.2 V to 28.8 V DC)
• Current Consumption (rated value): 230 mA (typ. active power input 5.5 W)
• Front Panel Protection: IP65 (front) / IP20 (rear)
• Cooling Method: Fan-less (Natural Air Circulation)
• Operating Temperature: 0°C to 50°C (32°F to 122°F)
• Storage/Transport Temperature: -20°C to 60°C (-4°F to 140°F)
• Configuration Software: Configurable with WinCC Basic V13 (TIA Portal) or higher.
• Key Features:
  • Ideal entry-level HMI for simple applications with excellent price/performance ratio.
  • High-resolution widescreen display with dimmable LED backlight.
  • Combined touch and key operation for flexible and reliable user interaction.
  • Supports essential HMI functions such as alarm logging, recipe management, trend displays, and multi-language switching.
  • User-friendly interface with modern controls and graphics.
  • Efficient engineering within the Totally Integrated Automation (TIA) Portal environment.
  • Can be mounted in portrait or landscape format.
• Dimensions (W x H x D): 214 mm x 158 mm x 39 mm
• Mounting Cutout (W x H): 197 mm x 141 mm
• Weight: Approx. 0.977 kg
• Certifications: CE, cULus, RCM (formerly C-Tick), KC approval, Marine approvals (e.g., GL, ABS, BV).

Why Choose the Siemens HMI SIMATIC KTP700 Basic from Multipurpose Automation Solution in Bangladesh?

At Multipurpose Automation Solution, located in Gazipur, Dhaka Division, Bangladesh, we provide genuine and high-quality industrial automation products. Choosing the Siemens HMI SIMATIC KTP700 Basic from us ensures:

• Best Price in Bangladesh: Contact us directly to get the BEST PRICE for the Siemens HMI SIMATIC KTP700 Basic in the Bangladesh market. We are committed to offering competitive pricing for this widely used HMI.
• Excellent Value: Offers a powerful combination of a high-resolution color display, dual operation (touch/key), and essential HMI functions at a cost-effective price, making it perfect for budget-conscious projects.
• PROFINET Connectivity: The integrated PROFINET (Ethernet) interface provides high-speed and modern communication with Siemens SIMATIC S7-1200/1500 PLCs and other PROFINET-enabled devices, facilitating seamless integration into contemporary automation architectures.
• User-Friendly & Robust: Designed for intuitive operation and built to withstand typical industrial environments with its IP65 front panel protection and fan-less design, ensuring reliable long-term performance and minimal maintenance.
• TIA Portal Integration: Seamlessly configured within the Siemens TIA Portal, simplifying the engineering process and enhancing efficiency for your automation projects.
• Local Availability & Expert Support: Being based in Gazipur, we offer convenient access to this HMI, along with technical support for configuration, integration, and troubleshooting to ensure smooth project execution and optimal system performance.

Applications:

The Siemens HMI SIMATIC KTP700 Basic (6AV2123-2GB03-0AX0) is ideally suited for a variety of industrial applications in Bangladesh that require reliable and cost-effective visualization and operator control, including:

• Small to medium-sized machines and standalone plants.
• Control panels for pumps, conveyors, fans, and simple manufacturing processes.
• Applications where PROFINET (Ethernet) communication with the PLC is standard or preferred.
• Industries such as packaging, material handling, water/wastewater treatment, and general machinery, looking for a modern and efficient basic HMI solution.

Price and Availability in Bangladesh:

For the BEST PRICE and current availability of the Siemens HMI SIMATIC KTP700 Basic (6AV2123-2GB03-0AX0), please CALL US at Multipurpose Automation Solution in Gazipur, Dhaka Division, Bangladesh. Our team is ready to provide you with a competitive quote and discuss the suitability of this HMI for your specific requirements.
