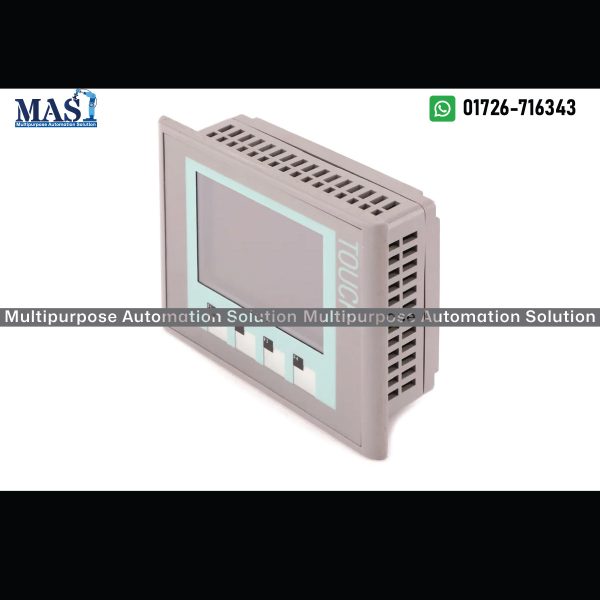

Siemens HMI SIMATIC KTP400 Basic mono PN (6AV6647-0AA11-3AX0) – 4-inch Monochrome Key/Touch Panel – Buy in Bangladesh

For fundamental and cost-effective visualization in compact applications, the Siemens HMI SIMATIC KTP400 Basic mono PN (6AV6647-0AA11-3AX0) offers a robust solution. This 1st generation Basic Panel features a clear 4-inch STN monochrome display with 4 gray levels, combining intuitive touch operation with the precision of 4 integrated function keys. Equipped with a PROFINET (Ethernet) interface, it provides reliable communication for basic HMI tasks. Available at Multipurpose Automation Solution in Gazipur, Dhaka Division, Bangladesh.

Key Features & Specifications of the Siemens HMI SIMATIC KTP400 Basic mono PN (6AV6647-0AA11-3AX0):

• Model: SIMATIC KTP400 Basic mono PN (Key/Touch Panel 400 Basic monochrome PN)

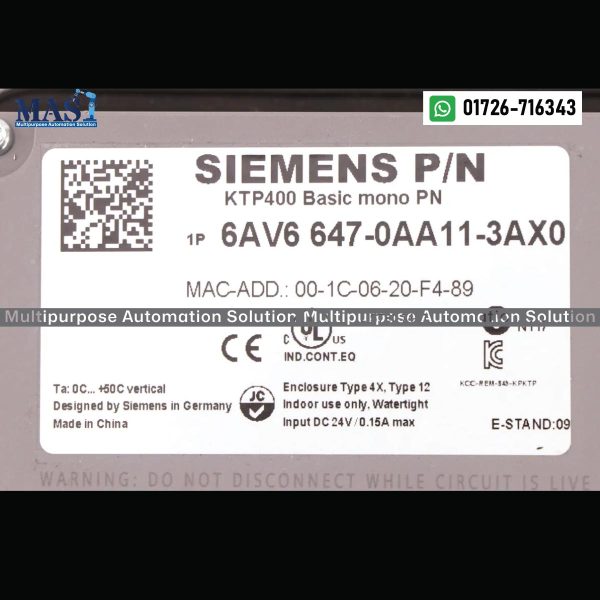

• Part Number: 6AV6647-0AA11-3AX0
• Display Size: 4-inch STN LCD
• Display Type: Monochrome STN (Super-Twisted Nematic) display with LED backlight
• Colors/Grayscale: 4 gray levels
• Resolution (Pixels): 320 x 240 pixels (QVGA)
• Control Elements:
  • Resistive analog touch screen
  • 4 freely configurable function keys
• Processor: 32-bit RISC processor (typ. 75 MHz)
• Memory for User Data: 512 KB
• Operating System: Proprietary
• Communication Ports:

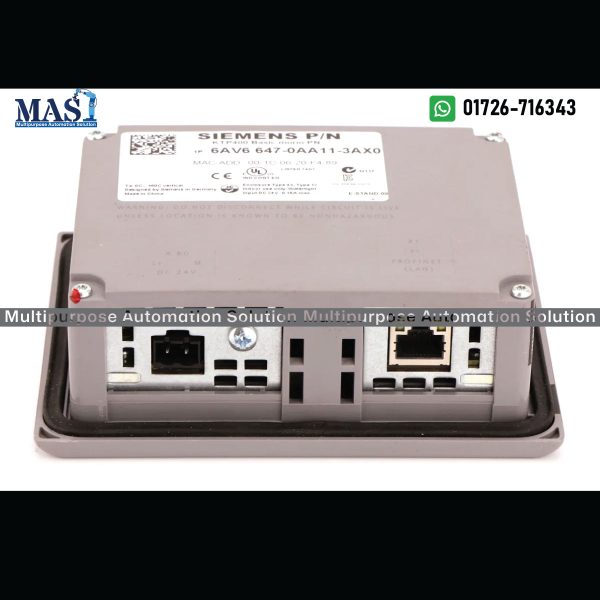

  • 1 x PROFINET (Ethernet) interface (RJ45, 10/100 Mbit/s)
  • Note: This model does NOT feature a USB port or a PROFIBUS DP interface directly.
• Real-Time Clock (RTC): Software clock (may require synchronization from PLC)
• Audio Output: Buzzer (for alarms/system sounds)
• Power Supply: 24V DC (19.2 V to 28.8 V DC)
• Current Consumption (rated value): Typ. 125 mA (Active power input typ. 3 W)
• Front Panel Protection: IP65 (front) / IP20 (rear)
• Cooling Method: Fan-less (Natural Air Circulation)
• Operating Temperature: 0°C to 50°C (32°F to 122°F)
• Storage/Transport Temperature: -20°C to 60°C (-4°F to 140°F)
• Configuration Software: Configurable with WinCC flexible 2008 SP2 Compact or higher, or WinCC Basic V10.5 (TIA Portal) or higher.
• Key Features:
  • Cost-effective solution for basic visualization tasks in PROFINET environments.
  • Combined touch and key operation for flexible user interaction.
  • Supports basic HMI functions like alarm logging and language switching.
  • Suitable for integration with SIMATIC S7-1200/1500 and other PROFINET-enabled PLCs.
• Dimensions (W x H x D): 140 mm x 116 mm x 46.2 mm
• Mounting Cutout (W x H): 123 mm x 99 mm
• Weight: Approx. 0.534 kg
• Certifications: CE, cULus, RCM (formerly C-Tick).

Why Choose the Siemens HMI SIMATIC KTP400 Basic mono PN from Multipurpose Automation Solution in Bangladesh?

At Multipurpose Automation Solution, located in Gazipur, Dhaka Division, Bangladesh, we specialize in providing genuine and high-quality industrial automation products, including essential legacy components for maintaining operational systems. Choosing the Siemens HMI SIMATIC KTP400 Basic mono PN from us ensures:

• Best Price in Bangladesh: Contact us directly to get the BEST PRICE for the Siemens HMI SIMATIC KTP400 Basic mono PN in the Bangladesh market. We are committed to offering competitive pricing for this specialized and often critical spare part.
• Authentic Siemens Product: Guarantee of original Siemens quality, ensuring compatibility and reliable performance when replacing existing units.
• Perfect for Legacy PROFINET Systems: This HMI is a crucial component for maintaining and repairing older PROFINET-based systems, extending their operational life with a direct replacement.
• Local Availability & Expert Support: Being based in Gazipur, we offer convenient access to this HMI, along with technical understanding to assist with compatibility and integration within your existing Siemens control systems.

Applications:

The Siemens HMI SIMATIC KTP400 Basic mono PN (6AV6647-0AA11-3AX0) is ideally suited for:

• Replacing failed KTP400 Basic mono PN units in existing industrial machines and plants.
• Maintenance and upgrades of older automation systems utilizing Siemens S7-1200/1500 (earlier versions) and other PROFINET-enabled PLCs where a monochrome Ethernet HMI is required.
• Basic operator control and monitoring applications where the existing infrastructure relies on PROFINET (Ethernet) and a cost-effective monochrome HMI is sufficient.

Price and Availability in Bangladesh:

For the BEST PRICE and current availability of the Siemens HMI SIMATIC KTP400 Basic mono PN (6AV6647-0AA11-3AX0), please CALL US at Multipurpose Automation Solution in Gazipur, Dhaka Division, Bangladesh. Our team is ready to provide you with a competitive quote and discuss the suitability of this HMI for your specific requirements.
