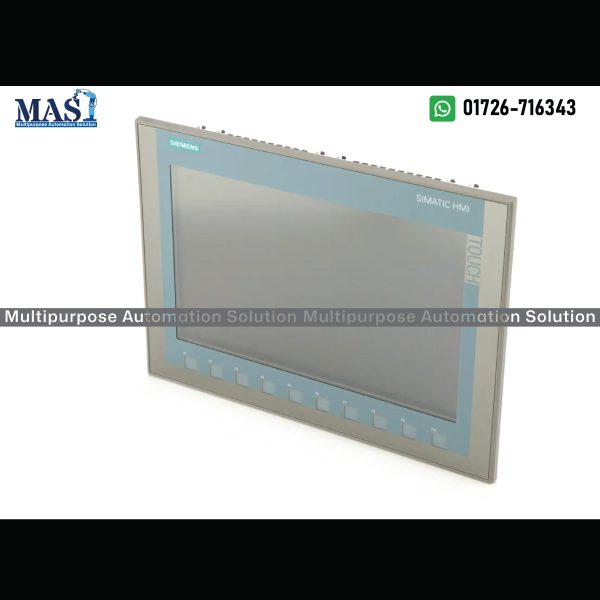

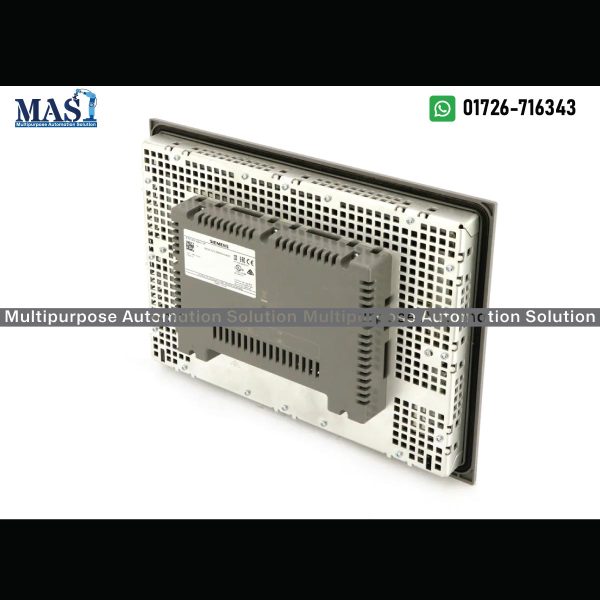

Siemens HMI SIMATIC KTP1200 Basic DP (6AV2123-2MA03-0AX0) – 12-inch Widescreen PROFIBUS Key/Touch Panel – Buy in Bangladesh

For larger basic visualization applications requiring PROFIBUS DP connectivity, the Siemens HMI SIMATIC KTP1200 Basic DP (6AV2123-2MA03-0AX0) offers a powerful and cost-effective solution. This 2nd Generation Basic Panel features an expansive 12-inch widescreen TFT display with 65,536 colors, ensuring clear and vibrant process visualization. It combines precise touch screen operation with the tactile feedback of 10 integrated function keys. With its dedicated PROFIBUS DP interface and robust feature set, it provides reliable communication for complex machines and plants. Available at Multipurpose Automation Solution in Gazipur, Dhaka Division, Bangladesh.

Key Features & Specifications of the Siemens HMI SIMATIC KTP1200 Basic DP (6AV2123-2MA03-0AX0):

• Model: SIMATIC KTP1200 Basic DP (Key/Touch Panel 1200 Basic DP)
• Part Number: 6AV2123-2MA03-0AX0
• Display Size: 12-inch Widescreen TFT LCD
• Display Type: Color TFT with LED backlight
• Colors: 65,536 colors
• Resolution (Pixels): 1280 x 800 pixels (WXGA)
• Control Elements:
  • Resistive analog touch screen
  • 10 freely configurable function keys
• Processor: ARM processor
• Memory for User Data: 10 MB
• Operating System: Proprietary (optimized for HMI applications)

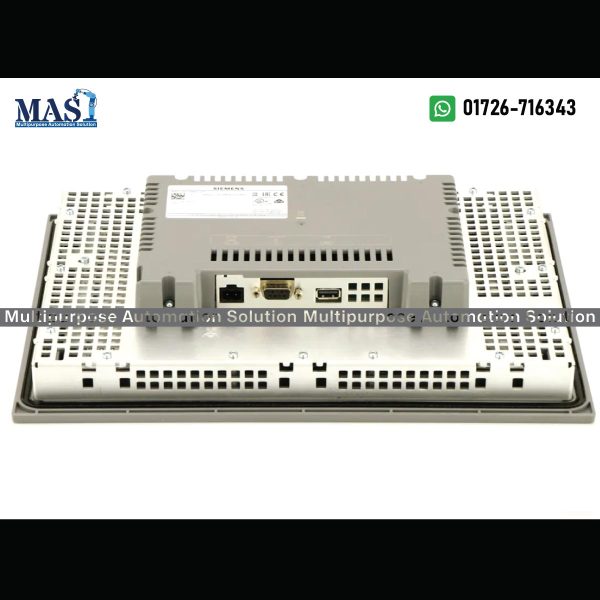

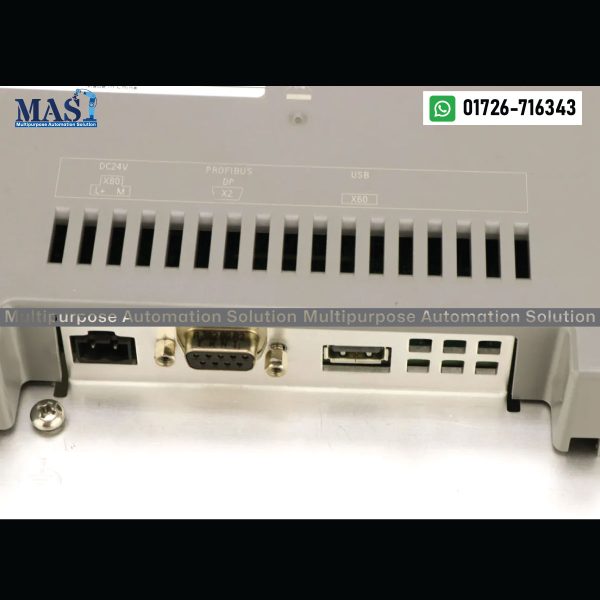

• Communication Ports:
  • 1 x MPI/PROFIBUS DP interface (RS-485, up to 12 Mbit/s)
  • 1 x USB Host 2.0 (Type A) for connecting peripheral devices (e.g., USB stick for data archiving/project transfer, keyboard, mouse, barcode scanner).
  • Note: This specific “DP” model does NOT have an integrated PROFINET (Ethernet) interface.
• Real-Time Clock (RTC): Yes, hardware clock, retentive (typically 6 weeks backup duration)
• Audio Output: Buzzer
• Power Supply: 24V DC (19.2 V to 28.8 V DC)
• Current Consumption (rated value): Typ. 550 mA (Active power input typ. 13.2 W)
• Front Panel Protection: IP65 (front) / IP20 (rear)
• Cooling Method: Fan-less (Natural Air Circulation)
• Operating Temperature: 0°C to 50°C (32°F to 122°F)
• Storage/Transport Temperature: -20°C to 60°C (-4°F to 140°F)
• Configuration Software: Configurable with WinCC Basic V13 (TIA Portal) or higher.
• Key Features:
  • Large, high-resolution widescreen display for extensive visualization.
  • Combines precise touch operation with the reliability of physical keys.
  • Dimmable LED backlight (up to 100%) for optimal visibility and energy efficiency.
  • Supports essential HMI functions such as alarm logging, recipe management (up to 50 recipes), trend displays, and multi-language switching (up to 10 online languages).
  • User-friendly interface with modern controls and graphics, making operation intuitive.
  • Efficient engineering within the Totally Integrated Automation (TIA) Portal environment.
  • Can be mounted in portrait or landscape format.
• Dimensions (W x H x D): 330 mm x 245 mm x 60 mm
• Mounting Cutout (W x H): 310 mm x 221 mm
• Weight: Approx. 2.05 kg
• Certifications: CE, cULus, RCM (formerly C-Tick), KC approval.
• Product Lifecycle: PM300: Active Product (ensuring ongoing availability and. support)

Why Choose the Siemens HMI SIMATIC KTP1200 Basic DP from Multipurpose Automation Solution in Bangladesh?

At Multipurpose Automation Solution, located in Gazipur, Dhaka Division, Bangladesh, we provide genuine and high-quality industrial automation products. Choosing the Siemens HMI SIMATIC KTP1200 Basic DP from us ensures:

• Best Price in Bangladesh: Contact us directly to get the BEST PRICE for the Siemens HMI SIMATIC KTP1200 Basic DP in the Bangladesh market. We are committed to offering competitive pricing for this powerful HMI.
• Large-Scale Basic Visualization: The expansive 12-inch display is perfect for applications requiring more screen real estate for overviews, complex graphics, or detailed information display.
• PROFIBUS DP Integration: Provides seamless and robust communication with Siemens SIMATIC S7-300/400 PLCs and other PROFIBUS DP-enabled devices, ideal for existing or dedicated PROFIBUS networks.
• User-Friendly & Robust: Offers an intuitive touch and key interface and is built with an IP65-rated front panel, ensuring reliable operation even in challenging industrial environments with dust and water splashes.
• TIA Portal Integration: Fully configurable within the Siemens TIA Portal, simplifying the engineering process and reducing development time for your automation projects.
• Local Availability & Expert Support: Being based in Gazipur, we offer convenient access to this HMI, along with technical support for configuration, integration, and troubleshooting to ensure smooth project execution and optimal system performance.

Applications:

The Siemens HMI SIMATIC KTP1200 Basic DP (6AV2123-2MA03-0AX0) is ideally suited for a variety of industrial applications in Bangladesh that require extensive, cost-effective, and reliable visualization and operator control, particularly where PROFIBUS DP is the primary communication medium, including:

• Large standalone machines and processing units.
• Control panels for complex conveyor systems, material handling, or assembly lines.
• Applications with a high volume of process data or alarms requiring clear presentation.
• Integration into existing systems where PROFIBUS DP remains the established communication network.

Price and Availability in Bangladesh:

For the BEST PRICE and current availability of the Siemens HMI SIMATIC KTP1200 Basic DP (6AV2123-2MA03-0AX0), please CALL US at Multipurpose Automation Solution in Gazipur, Dhaka Division, Bangladesh. Our team is ready to provide you with a competitive quote and discuss the suitability of this HMI for your specific requirements.
