Delta HMI DOP-110IS – 10.1-inch Widescreen TFT Touch Screen HMI with Ethernet – Buy in Bangladesh

Elevate your industrial automation with the versatile and powerful Delta HMI DOP-110IS. This 10.1-inch Human Machine Interface features a clear widescreen display, a fast processor, and integrated Ethernet capabilities, making it an excellent solution for complex and networked control systems. Part of Delta’s advanced DOP-100 series, it offers robust performance and rich features. Available at Multipurpose Automation Solution in Gazipur, Dhaka Division, Bangladesh.

Key Features & Specifications of the Delta HMI DOP-110IS:

• Model: DOP-110IS (I-Type Standard HMI with Ethernet)
• Display Size: 10.1-inch TFT LCD
• Resolution (Pixels): 1024 x 600 (WVGA)
• Colors: 16-bit (65,536 colors)
• Luminance (Brightness): 300 cd/m² (Typical)
• Backlight: LED Backlight
• Backlight Life: > 20,000 hours (at 25°C)
• CPU: ARM Cortex-A8 (800 MHz)
• Flash ROM: 256 MB
• RAM: 256 MB
• Touchscreen: 4-wire resistive type, with a lifespan of > 10,000,000 presses

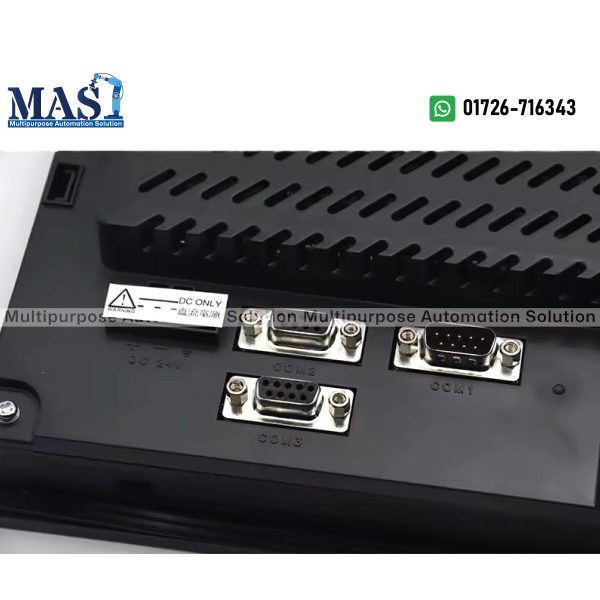

• Communication Ports:
  • COM1: RS-232
  • COM2: RS-232 / RS-485
  • COM3: RS-232 / RS-422 / RS-485 (Total 3 serial COM ports)
  • Ethernet: 1 Port, 10/100 Mbps auto-sensing (with built-in isolated power circuit)
  • USB Slave: 1 (Ver 2.0, Type B, for program download)
  • USB Host: 1 (Ver 2.0, Type A, for USB memory stick)
  • SD Card Slot: 1 (supports SDHC)
• Real-Time Clock (RTC): Built-in (with backup battery CR2032, approx. 3 years life at 25°C)
• Audio Output: Buzzer (Multi-tone frequency 2K – 4K Hz / 80 dB)
• Power Supply: 24V DC (-15% to +15%) (Isolated power supply recommended)
• Power Consumption: Max. 9.6 W
• Front Panel Protection: IP65 / NEMA4 (Indoor use only)
• Cooling Method: Natural Air Circulation (Fan-less)
• Operating Temperature: 0°C to 50°C (32°F to 122°F)
• Storage Temperature: -20°C to 60°C (-4°F to 140°F)
• Software: Programmed with Delta DOPSoft (often available as a free download).
• Dimensions (W x H x D): 272.6 x 200.6 x 54 mm
• Mounting Dimensions (W x H): 261.3 x 189.3 mm
• Weight: Approx. 1130 g
• Certifications: CE / UL

Why Choose the Delta HMI DOP-110IS from Multipurpose Automation Solution in Bangladesh?

At Multipurpose Automation Solution, located in Gazipur, Dhaka Division, Bangladesh, we provide genuine and high-quality industrial automation products. Choosing the Delta HMI DOP-110IS from us ensures:

• Best Price in Bangladesh: Contact us directly to get the BEST PRICE for the Delta HMI DOP-110IS in the Bangladesh market. We are committed to offering competitive pricing.
• Superior Performance: Equipped with an 800MHz Cortex-A8 CPU and ample memory, this HMI offers fast boot-up, smooth screen transitions, and efficient operation for complex applications.
• Rich Communication Options: With 3 serial COM ports, an Ethernet port, and USB/SD card slots, it provides extensive connectivity for a wide range of PLCs, drives, and other industrial devices.
• Crisp Widescreen Display: The 10.1-inch 1024×600 resolution TFT LCD offers excellent clarity and more screen real estate for detailed graphics, trends, and comprehensive control layouts.
• Robust Industrial Design: With IP65 front panel protection and a fan-less design, the DOP-110IS is built to withstand demanding industrial environments.
• Local Availability & Support: Being based in Gazipur, we offer convenient access to this HMI, along with expert technical support to assist with selection, programming, and seamless integration into your systems.

Applications:

The Delta HMI DOP-110IS is ideally suited for a broad spectrum of industrial applications in Bangladesh, including:

• Advanced machine control and complex process visualization in various industries (e.g., packaging, textiles, woodworking, rubber & plastics).
• Factory automation lines requiring networked HMIs for centralized control and data exchange.
• Data acquisition, logging, and historical trending with convenient data transfer via USB/SD.
• Operator interface for medium to large-scale industrial machinery.
• Integration with Delta PLCs and other brands of controllers using serial or Ethernet communication.

Price and Availability in Bangladesh:

For the BEST PRICE and current availability of the Delta HMI DOP-110IS, please CALL US at Multipurpose Automation Solution in Gazipur, Dhaka Division, Bangladesh. Our team is ready to provide you with a competitive quote and discuss the suitability of this model for your specific requirements.
