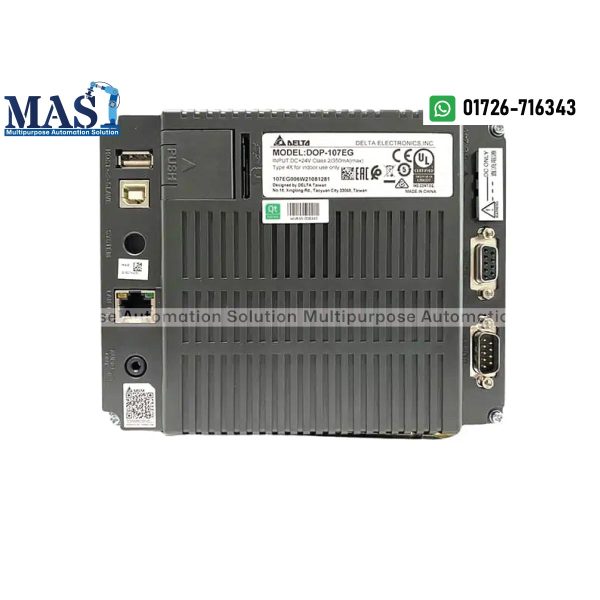

Delta HMI DOP-107EG – 7-inch SVGA Color TFT Touch Screen HMI with Ethernet – Buy in Bangladesh

Elevate your industrial automation with the versatile and powerful Delta HMI DOP-107EG. This 7-inch Human Machine Interface features a sharp SVGA (800 x 600 pixels) color TFT display, a fast 800MHz ARM Cortex-A8 processor, and built-in Ethernet capabilities, making it an excellent solution for a wide range of control and monitoring systems that require high-resolution graphics and networked communication. Part of Delta’s DOP-100 Standard Series, it offers robust performance and rich features. Available at Multipurpose Automation Solution in Gazipur, Dhaka Division, Bangladesh.

Key Features & Specifications of the Delta HMI DOP-107EG:

• Model: DOP-107EG (E-Type Standard HMI with Ethernet)
• Display Size: 7-inch TFT LCD
• Resolution (Pixels): 800 x 600 (SVGA)
• Colors: 16-bit (65,536 colors)
• Luminance (Brightness): 450 cd/m² (Typical)
• Backlight: LED Backlight
• Backlight Life: > 20,000 hours (at 25°C)
• CPU: ARM Cortex-A8 (800 MHz)
• Flash ROM: 256 MB
• RAM: 256 MB
• Touchscreen: 4-wire resistive type, with a lifespan of > 10,000,000 presses
• Communication Ports:
  • COM1: RS-232 (supports hardware flow control)
  • COM2: RS-232 (supports hardware flow control) / RS-485
  • COM3: RS-422 / RS-485 (Total 3 serial COM ports)
  • Ethernet: 1 Port, 10/100 Mbps auto-sensing (with built-in isolated power circuit)
  • USB Slave: 1 (Ver 2.0, Type B, for program download)
  • USB Host: 1 (Ver 2.0, Type A, for USB memory stick)
  • SD Card Slot: 1 (supports SDHC)
• Real-Time Clock (RTC): Built-in (with backup battery CR2032, approx. 3 years life at 25°C)
• Audio Output: Buzzer (Multi-tone frequency 2K – 4K Hz / 80 dB)
• Power Supply: 24V DC (-15% to +15%) (Please use an isolated power supply; Supplied by Class 2 or SELV circuit)
• Power Consumption: Max. 8.4 W
• Front Panel Protection: IP65 / NEMA4 / UL Type 4X (indoor use only)
• Cooling Method: Natural Air Circulation (Fan-less)
• Operating Temperature: 0°C to 50°C (32°F to 122°F)
• Storage Temperature: -20°C to 60°C (-4°F to 140°F)
• Software: Programmed with Delta DOPSoft (often available as a free download).
• Dimensions (W x H x D): 184 x 144 x 51.5 mm
• Mounting Dimensions (W x H): 172.4 x 132.4 mm
• Weight: Approx. 800 g
• Certifications: CE / UL

Why Choose the Delta HMI DOP-107EG from Multipurpose Automation Solution in Bangladesh?

At Multipurpose Automation Solution, located in Gazipur, Dhaka Division, Bangladesh, we provide genuine and high-quality industrial automation products. Choosing the Delta HMI DOP-107EG from us ensures:

• Best Price in Bangladesh: Contact us directly to get the BEST PRICE for the Delta HMI DOP-107EG in the Bangladesh market. We are committed to offering competitive pricing.
• High-Resolution Display: The 7-inch SVGA (800×600) TFT LCD offers superior clarity and more detailed graphics compared to lower resolution screens, enhancing the user experience.
• Powerful Performance: Equipped with an 800MHz Cortex-A8 CPU and ample memory, this HMI provides fast response times, smooth screen transitions, and efficient operation for complex graphic-intensive applications.
• Integrated Ethernet & Versatile Serial Ports: Direct Ethernet connectivity allows for seamless integration into networked systems, while three serial COM ports ensure broad compatibility with a wide range of PLCs and industrial devices.
• Robust Industrial Design: With IP65 / NEMA4 / UL Type 4X front panel protection and a fan-less design, the DOP-107EG is built to withstand demanding industrial environments.
• Local Availability & Support: Being based in Gazipur, we offer convenient access to this HMI, along with expert technical support to assist with selection, programming, and seamless integration into your systems.

Applications:

The Delta HMI DOP-107EG is ideally suited for a broad spectrum of industrial applications in Bangladesh, including:

• Advanced machine control and high-detail process visualization in various industries (e.g., packaging, textiles, woodworking, rubber & plastics, food & beverage).
• Factory automation lines requiring networked HMIs for centralized control and data exchange.
• Data acquisition, logging, and historical trending with convenient data transfer via USB/SD.
• Operator interface for medium to large-sized industrial machinery where both high resolution and robust communication are critical.
• Integration with Delta PLCs and other brands of controllers using serial or Ethernet communication.

Price and Availability in Bangladesh:

For the BEST PRICE and current availability of the Delta HMI DOP-107EG, please CALL US at Multipurpose Automation Solution in Gazipur, Dhaka Division, Bangladesh. Our team is ready to provide you with a competitive quote and discuss the suitability of this model for your specific requirements.
