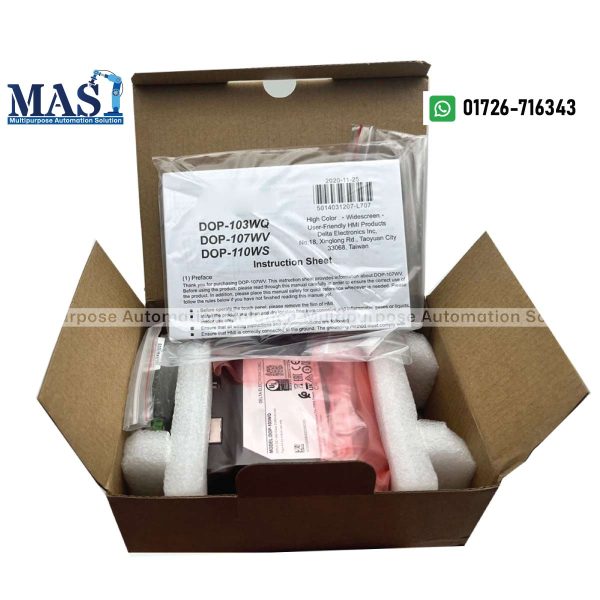

Delta HMI DOP-103WQ – 4.3-inch Widescreen TFT Touch Screen HMI with Ethernet – Buy in Bangladesh

Enhance your industrial automation with the compact, high-performance Delta HMI DOP-103WQ. This 4.3-inch Human Machine Interface features a vibrant WVGA (480 x 272 pixels) widescreen display, a powerful 800MHz ARM Cortex-A8 processor, and built-in Ethernet capabilities, making it an excellent solution for space-constrained applications requiring clear visuals and networked communication. Part of Delta’s advanced DOP-100 series, it offers robust features for efficient control. Available at Multipurpose Automation Solution in Gazipur, Dhaka Division, Bangladesh.

Key Features & Specifications of the Delta HMI DOP-103WQ:

• Model: DOP-103WQ (W-Type Advanced HMI with Ethernet & Narrow Frame)
• Display Size: 4.3-inch TFT LCD
• Resolution (Pixels): 480 x 272 (WVGA)
• Colors: 16-bit (65,536 colors)
• Luminance (Brightness): 400 cd/m² (Typical)
• Backlight: LED Backlight
• Backlight Life: > 10,000 hours (at 25°C)
• CPU: ARM Cortex-A8 (800 MHz)
• Flash ROM: 256 MB
• RAM: 512 MB
• Touchscreen: 4-wire resistive type, with a lifespan of > 10,000,000 presses
• Communication Ports:
  • COM1: RS-232 (supports hardware flow control) / RS-485
  • COM2: RS-422 / RS-485 (Total 2 serial COM ports)
  • Ethernet: 1 Port, 10/100 Mbps auto-sensing (with built-in isolated power circuit)
  • USB Slave: 1 (Ver 2.0, Type B, for program download)
  • USB Host: 1 (Ver 2.0, Type A, for USB memory stick)
• Real-Time Clock (RTC): Built-in (with backup battery CR2032, approx. 3 years life at 25°C)
• Audio Output: Buzzer (Multi-tone frequency 2K – 4K Hz / 80 dB)
• Power Supply: 24V DC (-15% to +15%) (Please use an isolated power supply; Supplied by Class 2 or SELV circuit)
• Power Consumption: Max. 5.8 W
• Front Panel Protection: IP65 / NEMA4 / UL Type 4X (indoor use only)
• Cooling Method: Natural Air Circulation (Fan-less)
• Operating Temperature: 0°C to 50°C (32°F to 122°F)
• Storage Temperature: -20°C to 60°C (-4°F to 140°F)
• Software: Programmed with Delta DOPSoft.
• Dimensions (W x H x D): 137 x 103 x 37.1 mm
• Mounting Dimensions (W x H): 118.8 x 92.8 mm
• Weight: Approx. 280 g
• Certifications: CE / UL

Why Choose the Delta HMI DOP-103WQ from Multipurpose Automation Solution in Bangladesh?

At Multipurpose Automation Solution, located in Gazipur, Dhaka Division, Bangladesh, we provide genuine and high-quality industrial automation products. Choosing the Delta HMI DOP-103WQ from us ensures:

• Best Price in Bangladesh: Contact us directly to get the BEST PRICE for the Delta HMI DOP-103WQ in the Bangladesh market. We are committed to offering competitive pricing.
• Compact with High Performance: Despite its small footprint, it features an 800MHz Cortex-A8 CPU and 512MB RAM, providing fast response times and efficient operation for advanced HMI tasks.
• Integrated Ethernet: Direct Ethernet connectivity allows for seamless integration into networked systems, enabling faster data exchange and remote monitoring, crucial for modern automation.
• Clear Widescreen Display: The 4.3-inch WVGA (480×272) resolution TFT LCD offers clear graphics and ample screen real estate for compact control panels.
• Robust Industrial Design: With IP65 / NEMA4 / UL Type 4X front panel protection and a fan-less design, the DOP-103WQ is built to withstand demanding industrial environments.
• Local Availability & Support: Being based in Gazipur, we offer convenient access to this HMI, along with expert technical support to assist with selection, programming, and seamless integration into your systems.

Applications:

The Delta HMI DOP-103WQ is ideally suited for a broad spectrum of industrial applications in Bangladesh, including:

• Compact machine control and visualization in various industries (e.g., small packaging machines, textile equipment, basic conveying systems).
• Applications requiring both network connectivity (Ethernet) and a small form factor HMI.
• Data acquisition, logging, and historical trending with convenient data transfer via USB.
• Operator interface for small industrial machinery where both clear graphics and network communication are essential.
• Integration with Delta PLCs and other brands of controllers using serial or Ethernet communication.

Price and Availability in Bangladesh:

For the BEST PRICE and current availability of the Delta HMI DOP-103WQ, please CALL US at Multipurpose Automation Solution in Gazipur, Dhaka Division, Bangladesh. Our team is ready to provide you with a competitive quote and discuss the suitability of this model for your specific requirements.
