Siemens PLC SIMATIC S7-1200 CPU 1212C DC/DC/DC (6ES7212-1AE40-0XB0) – Enhanced Compact Controller – Buy in Bangladesh

Elevate your automation solutions with the Siemens PLC SIMATIC S7-1200 CPU 1212C DC/DC/DC, precisely identified by its Siemens Material Number 6ES7212-1AE40-0XB0. As a step up from the 1211C, this compact yet more capable CPU from the renowned SIMATIC S7-1200 series offers increased onboard I/O, expanded memory, and enhanced expansion possibilities, making it ideal for a broader range of small to medium-sized applications. Featuring a 24V DC power supply, DC digital inputs, and DC transistor outputs, the 1212C ensures reliable and precise control in diverse industrial environments. Available now at Multipurpose Automation Solution in Gazipur, Dhaka Division, Bangladesh.

Key Features & Specifications of the Siemens PLC SIMATIC S7-1200 CPU 1212C (6ES7212-1AE40-0XB0):

• Model: SIMATIC S7-1200 CPU 1212C DC/DC/DC
• Material Number (MLFB): 6ES7212-1AE40-0XB0
• Manufacturer: Siemens AG
• Series: SIMATIC S7-1200 Basic Controllers
• CPU Type: Compact CPU (Processor 1212C)
• Power Supply: DC 24V (Permissible range: 20.4 – 28.8V DC)
• Integrated I/O:
  • Digital Inputs (DI): 8 x 24V DC (Built-in, 6 inputs usable for High-Speed Counting up to 100 kHz)
  • Digital Outputs (DO): 6 x 24V DC Transistor Outputs (Built-in, 4 outputs capable of Pulse Train Output (PTO) for motion control and Pulse Width Modulation (PWM))
  • Analog Inputs (AI): 2 x 0-10V DC (Built-in, with 10-bit resolution for precise analog signal acquisition)
  • Analog Outputs (AO): 0 (No onboard analog outputs; expandability via Signal Boards or Signal Modules)
• Memory:
  • Work Memory: 100 KB (for user program and data – significantly larger than 1211C)
  • Load Memory: 2 MB (integrated, for project storage – also expanded from 1211C)
  • Memory Expansion: Supports optional SIMATIC Memory Card for additional load memory.
• Communication:

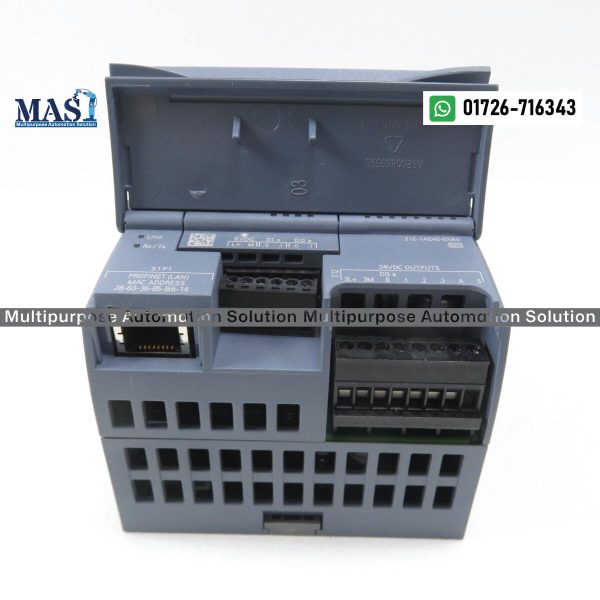

  • PROFINET Interface: 1 x RJ45 Ethernet port, integrated for seamless communication with HMI, other PLCs, and PROFINET devices. Supports PROFINET IO Controller and IO Device functionality.
  • Expandable Communication: Allows addition of 1 Signal Board (SB) and up to 3 Communication Modules (CM) (e.g., RS232, RS485).
• High-Speed Functions:
  • High-Speed Counters (HSC): 6 integrated HSCs (3 x 100 kHz, 3 x 30 kHz) for precise counting applications like flow meters or encoders.
  • Pulse Train Output (PTO) / Pulse Width Modulation (PWM): Up to 4 channels for open-loop speed and position control (e.g., stepper motors) or analog-like control (e.g., proportional valves) at up to 100 kHz.
• Programming: Configured and programmed using the powerful Siemens TIA Portal software (STEP 7 Basic V13 SP1 or higher).
• Integrated Features: Built-in web server for diagnostics and remote access, comprehensive diagnostic capabilities, integrated technology objects for motion control and PID control.
• Expansion Capabilities: Supports 1 Signal Board (SB) and crucially, up to 2 Signal Modules (SMs) for expanding digital or analog I/O, providing greater flexibility compared to the 1211C.
• Design: Compact, space-saving design suitable for installation in tight control cabinets.
• Dimensions (W x H x D): Approx. 90 mm x 100 mm x 75 mm
• Weight: Approx. 0.294 kg
• Mounting: Flexible DIN rail or direct wall mounting.
• Operating Temperature: Wide operating temperature range of -20°C to +60°C, ensuring reliable operation in diverse industrial environments.
• Certifications: Active Product status (PM300) from Siemens, RoHS compliant, and various international approvals ensure quality and compliance.

Why Choose the Siemens PLC SIMATIC S7-1200 CPU 1212C from Multipurpose Automation Solution in Bangladesh?

At Multipurpose Automation Solution, located in Gazipur, Dhaka Division, Bangladesh, we are committed to providing genuine and high-quality industrial automation products. Opting for the Siemens PLC SIMATIC S7-1200 CPU 1212C from us ensures:

• Competitive Pricing: Acquire this enhanced Siemens PLC CPU for just 30,000 BDT. We strive to offer the best value for your automation investments in the Bangladesh market.
• Authentic Siemens Product: Guaranteed genuine Siemens AG product, ensuring full compatibility, superior performance, and the renowned reliability of SIMATIC controllers.
• Increased I/O & Memory: Offers a larger number of onboard digital I/Os and significantly more program/data memory compared to the 1211C, handling more complex applications efficiently.
• Flexible Expansion with Signal Modules: The ability to add Signal Modules directly to the CPU greatly enhances its scalability for future growth or specific I/O requirements, a key advantage over the 1211C.
• Integrated PROFINET: The built-in PROFINET interface provides a single, high-performance communication backbone for programming, HMI connection, and distributed I/O, simplifying network design.
• Powerful Software Ecosystem: Leverages the intuitive and comprehensive TIA Portal for efficient engineering, programming (LAD, FBD, SCL), diagnostics, and visualization.
• Robust & Reliable: Designed to withstand challenging industrial conditions with its robust construction and wide operating temperature range.
• Local Availability & Support: As your local automation partner in Gazipur, we offer readily available stock, quick delivery, and expert technical assistance for your Siemens automation projects in Bangladesh.

Applications:

The Siemens PLC SIMATIC S7-1200 CPU 1212C is widely adopted across various industries in Bangladesh for a broader range of small to medium-sized automation tasks that benefit from its increased capacity and expandability, including:

• Automated Machines: Control of packaging machines, filling machines, assembly machines with more I/O requirements.
• Material Handling Systems: Conveyor systems with multiple sorting points, small robotic cells.
• Building Management Systems: More complex HVAC systems, energy management, security systems.
• Process Control: Batching processes, pumping stations with advanced control loops, small-scale manufacturing.
• Food & Beverage: Control of mixing, bottling, or baking processes.
• Water & Wastewater: Automation of filtration, pumping, and treatment processes.

Price and Availability in Bangladesh:

The Siemens PLC SIMATIC S7-1200 CPU 1212C DC/DC/DC (6ES7212-1AE40-0XB0) is available for 30,000 BDT. To purchase or inquire further, please contact Multipurpose Automation Solution in Gazipur, Dhaka Division, Bangladesh. Our team is ready to assist you with your industrial automation and control system requirements.
