Siemens HMI SIMATIC TP900 Comfort (6AV2124-0JC01-0AX0) – 9-inch Widescreen TFT Touch Panel – Buy in Bangladesh

Achieve high-performance visualization and operator control for your industrial processes with the Siemens HMI SIMATIC TP900 Comfort (6AV2124-0JC01-0AX0). This advanced Comfort Panel features a vibrant 9-inch widescreen TFT display with 16 million colors and intuitive touch operation. Engineered for demanding HMI tasks, it offers extensive functionality, robust communication options including PROFINET and MPI/PROFIBUS DP, and is designed for seamless integration with SIMATIC S7-1200/1500 PLCs. Available at Multipurpose Automation Solution in Gazipur, Dhaka Division, Bangladesh.

Key Features & Specifications of the Siemens HMI SIMATIC TP900 Comfort (6AV2124-0JC01-0AX0):

• Model: SIMATIC TP900 Comfort
• Part Number: 6AV2124-0JC01-0AX0
• Display Size: 9-inch Widescreen TFT LCD
• Display Type: Color TFT with LED backlight
• Colors: 16 million colors
• Resolution (Pixels): 800 x 480 pixels (WVGA)
• Control Elements: High-resolution resistive analog touch screen
• CPU: X86-compatible processor
• Configuration Memory: 12 MB (for user projects)
• Operating System: Windows CE 6.0

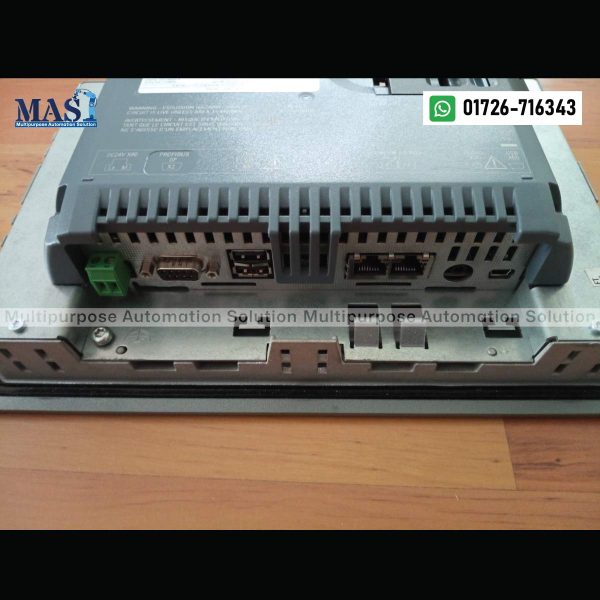

• Communication Ports:
  • PROFINET Interface: 1 x RJ45 (10/100 Mbit/s, Integrated 2-port switch)
  • MPI/PROFIBUS DP Interface: 1 x RJ45 (supporting MPI/PROFIBUS DP, up to 12 Mbit/s)
  • USB Host: 2 x USB 2.0 (Type A)
  • USB Device: 1 x USB Mini-B (for project transfer)
• Real-Time Clock (RTC): Yes, with battery backup (typically 6 years)
• Audio Output: Buzzer
• Power Supply: 24V DC (19.2 to 28.8 V DC)
• Current Consumption: Max. 0.6 A (at 24V DC)
• Front Panel Protection: IP65 (front) / IP20 (rear)
• Cooling Method: Fan-less (Natural Air Circulation)
• Operating Temperature: 0°C to 50°C (32°F to 122°F)
• Storage/Transport Temperature: -20°C to 60°C (-4°F to 140°F)
• Configuration Software: Configurable from WinCC Comfort V11 (TIA Portal) or higher.
• Key Features:
  • High-performance visualization for demanding applications.
  • PROFIenergy function for intelligent energy management.
  • Integrated system diagnostics for efficient troubleshooting and error handling.
  • Archiving, logging, recipe management, and scripting capabilities (VB scripts).
  • Viewers for plant documentation (e.g., PDF) and web browsing.
  • Mountable horizontally or vertically for flexible installation.
  • Automatic backup of process-relevant data.
• Dimensions (W x H x D): 262 mm x 194 mm x 63 mm
• Mounting Cutout (W x H): 244 mm x 176 mm
• Weight: Approx. 2.1 kg

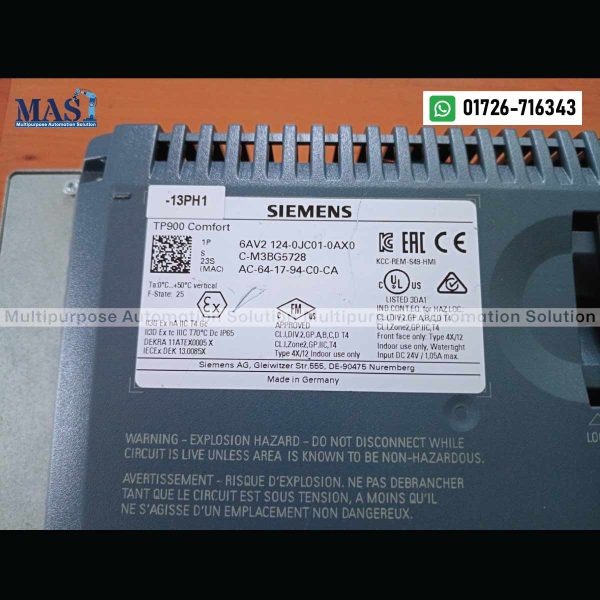

• Certifications: CE, UL, ATEX, IECEx, KCC, FM Class I Div. 2, Marine approvals.

Why Choose the Siemens HMI SIMATIC TP900 Comfort (6AV2124-0JC01-0AX0) from Multipurpose Automation Solution in Bangladesh?

At Multipurpose Automation Solution, located in Gazipur, Dhaka Division, Bangladesh, we provide genuine and high-quality industrial automation products. Choosing the Siemens HMI SIMATIC TP900 Comfort from us ensures:

• Best Price in Bangladesh: Contact us directly to get the BEST PRICE for the Siemens HMI SIMATIC TP900 Comfort in the Bangladesh market. We are committed to offering competitive pricing for this advanced HMI solution.
• Superior Performance: With a powerful processor and ample memory, it delivers smooth operation even with complex graphics and demanding HMI tasks.
• Versatile Communication: Equipped with PROFINET and MPI/PROFIBUS DP, it offers seamless connectivity to a wide array of Siemens PLCs (S7-300/400, S7-1200/1500) and other automation devices.
• Advanced Features: Benefit from functionalities like PROFIenergy for energy saving, comprehensive diagnostics, archiving, and scripting, enhancing your control system’s capabilities and efficiency.
• Robust Industrial Design: With IP65 front panel protection and a fan-less design, it is built to withstand harsh industrial environments, ensuring long-term reliability and minimal downtime.
• Local Availability & Support: Being based in Gazipur, we offer convenient access to this cutting-edge HMI, along with expert technical support for configuration, integration, and troubleshooting to ensure seamless project execution and optimal performance.

Applications:

The Siemens HMI SIMATIC TP900 Comfort (6AV2124-0JC01-0AX0) is ideally suited for a wide range of industrial applications in Bangladesh requiring advanced visualization and operator control, including:

• Machine control and process visualization in various industries (e.g., automotive, food & beverage, pharmaceuticals, packaging, textiles).
• Centralized control and monitoring of production facilities and plant sections.
• Applications demanding high data throughput, extensive archiving, and comprehensive alarm management.
• Integration with modern Siemens SIMATIC S7-1200/1500 PLCs via PROFINET for high-speed communication and data exchange.
• Industries requiring robust and reliable HMI solutions for continuous operation and demanding environments.

Price and Availability in Bangladesh:

For the BEST PRICE and current availability of the Siemens HMI SIMATIC TP900 Comfort (6AV2124-0JC01-0AX0), please CALL US at Multipurpose Automation Solution in Gazipur, Dhaka Division, Bangladesh. Our team is ready to provide you with a competitive quote and discuss the suitability of this powerful HMI for your specific requirements.
