Siemens HMI SIMATIC MP 377 (6AV6644-0AA01-2AX0) – 12.1-inch Touch Multi Panel with PROFINET/PROFIBUS – Buy in Bangladesh

For high-performance visualization and operator control in demanding industrial automation applications, the Siemens HMI SIMATIC MP 377 (6AV6644-0AA01-2AX0) provides a robust and feature-rich solution. This Multi Panel boasts a generous 12.1-inch TFT color display with 65,536 vibrant colors, offering clear and detailed process visualization through its precise resistive touch screen. Equipped with dual Industrial Ethernet (PROFINET) interfaces, MPI/PROFIBUS DP, multiple USB ports, and a CF/SD card slot, the MP 377 delivers extensive connectivity and expandability for complex HMI tasks. Available at Multipurpose Automation Solution in Gazipur, Dhaka Division, Bangladesh.

Key Features & Specifications of the Siemens HMI SIMATIC MP 377 (6AV6644-0AA01-2AX0):

• Model: SIMATIC MP 377 12″ Touch (Multi Panel 377 12.1″ Touch)

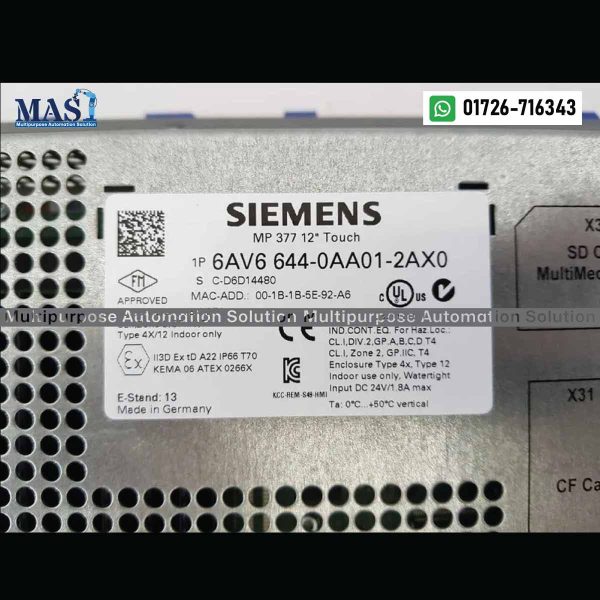

• Part Number: 6AV6644-0AA01-2AX0
• Display Size: 12.1-inch TFT LCD
• Display Type: Color TFT with LED backlight
• Colors: 65,536 colors
• Resolution (Pixels): 800 x 600 pixels (SVGA)
• Control Elements:
  • Resistive analog touch screen
  • On-screen numeric and alphanumeric keyboards
• Operating System: Microsoft Windows CE 5.0
• Memory for User Data: 12 MB (Flash / RAM)

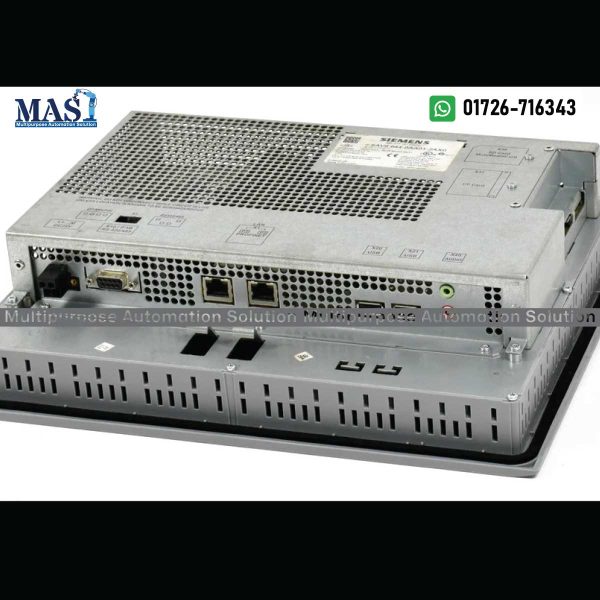

• Communication Ports:
  • 2 x Industrial Ethernet (PROFINET) interfaces (RJ45, 10/100 Mbit/s)
  • 1 x MPI/PROFIBUS DP interface (RS-485, up to 12 Mbit/s)
  • 2 x USB 2.0 Host ports (Type A) for connecting peripheral devices (e.g., USB stick, keyboard, mouse, barcode scanner)
  • 1 x CompactFlash (CF) card slot for external memory / project backup
• Real-Time Clock (RTC): Yes, hardware clock, retentive (battery-buffered)
• Audio Output: Buzzer
• Power Supply: 24V DC (20.4 V to 28.8 V DC)
• Current Consumption (rated value): Typ. 1.5 A (Active power input typ. 36 W)
• Front Panel Protection: IP65 (front) / IP20 (rear)
• Cooling Method: Fan-less (Natural Air Circulation)
• Operating Temperature: 0°C to 50°C (32°F to 122°F)
• Storage/Transport Temperature: -20°C to 60°C (-4°F to 140°F)
• Configuration Software: Configurable from WinCC flexible 2007 or WinCC flexible 2008 Standard/Advanced.
• Key Features:
  • High-performance Multi Panel with advanced functionality for complex HMI tasks.
  • Bright, high-resolution TFT display with extensive color depth for rich visualization.
  • Dual Ethernet ports allow for flexible network topologies and redundancy.
  • Supports a wide range of HMI functions including comprehensive alarm systems (4000 messages), recipe management (up to 50 recipes), trend displays, user management, and diagnostics.
  • Integrated with Windows CE 5.0, offering flexibility for custom applications.
  • Robust industrial design suitable for harsh environments.
  • Supports archiving of process values and messages on external memory (CF card).
• Dimensions (W x H x D): 335 mm x 275 mm x 72 mm (approximate, based on cutout/front dimensions)
• Mounting Cutout (W x H): 310 mm x 260 mm
• Weight: Approx. 3.755 kg to 4.96 kg (shipping weight varies)
• Certifications: CE, cULus, FM Class I Division 2 (for hazardous areas).
• Connectivity Protocols: Supports PROFINET IO, PROFIBUS DP, Modbus TCP/RTU, TCP/IP, and more.

Why Choose the Siemens HMI SIMATIC MP 377 from Multipurpose Automation Solution in Bangladesh?

At Multipurpose Automation Solution, located in Gazipur, Dhaka Division, Bangladesh, we specialize in providing genuine and high-quality industrial automation products, including essential legacy components for maintaining operational systems. Choosing the Siemens HMI SIMATIC MP 377 from us ensures:

• Best Price in Bangladesh: Contact us directly to get the BEST PRICE for the Siemens HMI SIMATIC MP 377 in the Bangladesh market. We are committed to offering competitive pricing for this critical spare part for existing installations.
• Authentic Siemens Product: Guarantee of original Siemens quality, ensuring compatibility and reliable performance when replacing existing units.
• Ideal for Legacy Systems: This HMI is crucial for maintaining and repairing older SIMATIC automation systems that rely on MP 377 panels, extending their operational life without costly system overhauls.
• Extensive Connectivity: With both PROFINET (Ethernet) and PROFIBUS DP, along with multiple USB and CF card slots, it offers broad compatibility for integration into diverse industrial networks and systems.
• Robust & Proven Design: The MP 377 series is known for its durability and reliability in demanding industrial environments, making it a dependable choice for replacements.
• Local Availability & Expert Support: Being based in Gazipur, we offer convenient access to this HMI, along with technical understanding to assist with compatibility, configuration, and troubleshooting within your existing Siemens control systems.

Applications:

The Siemens HMI SIMATIC MP 377 (6AV6644-0AA01-2AX0) is ideally suited for:

• Replacing failed MP 377 touch panels in existing industrial machines, complex production lines, and processing plants.
• Maintenance and repair projects for older automation systems where the established communication infrastructure includes PROFINET and/or PROFIBUS DP.
• Applications requiring advanced HMI functionality, comprehensive data management, recipe handling, and detailed diagnostics where a robust and proven Multi Panel is essential.

Price and Availability in Bangladesh:

For the BEST PRICE and current availability of the Siemens HMI SIMATIC MP 377 (6AV6644-0AA01-2AX0), please CALL US at Multipurpose Automation Solution in Gazipur, Dhaka Division, Bangladesh. Our team is ready to provide you with a competitive quote and discuss the suitability of this HMI for your specific requirements.
