Siemens HMI SIMATIC MP 277 (6AV6643-0CD01-1AX1) – 10.4-inch Touch Multi Panel with PROFINET/PROFIBUS – Buy in Bangladesh

For robust and versatile operator control and monitoring in complex industrial automation environments, the Siemens HMI SIMATIC MP 277 (6AV6643-0CD01-1AX1) offers a comprehensive solution. This Multi Panel features a bright 10.4-inch TFT color display with 65,536 colors, providing detailed process visualization through its resistive touch screen. Equipped with both Industrial Ethernet (PROFINET) and MPI/PROFIBUS DP interfaces, along with multiple USB and a Multimedia Card slot, the MP 277 delivers extensive connectivity for a wide range of demanding HMI applications. Available at Multipurpose Automation Solution in Gazipur, Dhaka Division, Bangladesh.

Important Note: The Siemens SIMATIC MP 277 (6AV6643-0CD01-1AX1) is a discontinued product, with product phase-out started since October 1, 2012 (PM400 status) and has been superseded by newer generations like the Comfort Panels. It is now primarily available for spare parts, maintenance, and replacement in existing installations. Siemens aims to provide spare parts availability until October 1, 2026.

Key Features & Specifications of the Siemens HMI SIMATIC MP 277 (6AV6643-0CD01-1AX1):

• Model: SIMATIC MP 277 10″ Touch (Multi Panel 277 10.4″ Touch)
• Part Number: 6AV6643-0CD01-1AX1
• Display Size: 10.4-inch TFT LCD
• Display Type: Color TFT with LED backlight
• Colors: 65,536 colors
• Resolution (Pixels): 640 x 480 pixels (VGA)
• Control Elements:
  • Resistive analog touch screen
  • On-screen numeric and alphanumeric keyboards
  • (Note: This is the Touch model, not the Keypad version of MP 277)
• Memory for User Data: 6 MB (Flash / RAM)
• Operating System: Microsoft Windows CE 5.0

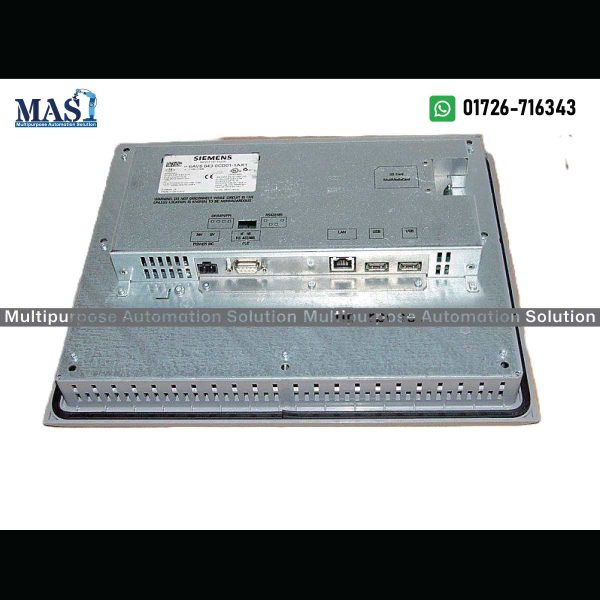

• Communication Ports:
  • 1 x Industrial Ethernet (PROFINET) interface (RJ45, 10/100 Mbit/s)
  • 1 x MPI/PROFIBUS DP interface (RS-485, up to 12 Mbit/s)
  • 2 x USB 2.0 ports (1 Host, 1 Client) for connecting peripheral devices (e.g., USB stick for data archiving/project transfer, keyboard, mouse)
  • 1 x Multimedia Card (MMC)/SD card slot (up to 128 MB MMC supported)
  • (Note: Some sources indicate 2 x COM ports as RS232/RS422/RS485, but primary documentation highlights RS422/485 for MPI/DP and Ethernet for PN, while USB is standard for peripherals).
• Real-Time Clock (RTC): Yes, hardware clock, retentive
• Audio Output: Buzzer
• Power Supply: 24V DC (19.2 V to 28.8 V DC)
• Current Consumption (rated value): Typ. 0.5 A (Active power input typ. 12 W)
• Front Panel Protection: IP65 (front) / IP20 (rear)
• Cooling Method: Fan-less (Natural Air Circulation)
• Operating Temperature: 0°C to 50°C (32°F to 122°F)
• Storage/Transport Temperature: -20°C to 60°C (-4°F to 140°F)
• Configuration Software: Configurable with WinCC flexible 2005 Standard SP1 or higher (e.g., WinCC flexible 2008 Standard SP3), or potentially TIA Portal versions that support legacy panels (e.g., TIA Portal V13 or V14 for migration/viewing, but typically programmed in WinCC flexible).
• Key Features:
  • Multi-functional platform with advanced capabilities beyond basic HMI.
  • High-quality TFT display suitable for detailed graphics and process visualization.
  • Extensive communication options for integrating into diverse control systems.
  • Support for comprehensive HMI functions like alarm logging, recipe management, trend functions, and diagnostics.
  • Robust design suitable for demanding industrial environments.
  • Retentive memory to maintain data even after power loss.
• Dimensions (W x H x D): Approx. 335 mm x 275 mm x 61 mm
• Mounting Cutout (W x H): Approx. 310 mm x 260 mm
• Weight: Approx. 3.287 kg
• Certifications: CE, cULus.

Why Choose the Siemens HMI SIMATIC MP 277 from Multipurpose Automation Solution in Bangladesh?

At Multipurpose Automation Solution, located in Gazipur, Dhaka Division, Bangladesh, we specialize in providing genuine and high-quality industrial automation products, including essential legacy components for maintaining operational systems. Choosing the Siemens HMI SIMATIC MP 277 from us ensures:

• Best Price in Bangladesh: Contact us directly to get the BEST PRICE for the Siemens HMI SIMATIC MP 277 in the Bangladesh market. We are committed to offering competitive pricing for this critical spare part.
• Authentic Siemens Product: Guarantee of original Siemens quality, ensuring compatibility and reliable performance when replacing existing units.
• Ideal for Legacy Systems: This HMI is a crucial component for maintaining and repairing older SIMATIC automation systems that rely on MP 277 panels, extending their operational life.
• Versatile Connectivity: With both Ethernet (PROFINET) and PROFIBUS DP, along with USB and MMC slots, it offers broad compatibility for integration into various industrial networks.
• Local Availability & Expert Support: Being based in Gazipur, we offer convenient access to this HMI, along with technical understanding to assist with compatibility, configuration, and troubleshooting within your existing Siemens control systems.

Applications:

The Siemens HMI SIMATIC MP 277 (6AV6643-0CD01-1AX1) is ideally suited for:

• Replacing failed MP 277 panels in existing industrial machines, complex production lines, and processing plants.
• Maintenance and upgrade projects for older automation systems where the established communication infrastructure includes PROFINET and/or PROFIBUS DP.
• Applications requiring advanced HMI functionality, data logging, recipe management, and detailed diagnostics where a robust and proven Multi Panel is preferred.

Price and Availability in Bangladesh:

For the BEST PRICE and current availability of the Siemens HMI SIMATIC MP 277 (6AV6643-0CD01-1AX1), please CALL US at Multipurpose Automation Solution in Gazipur, Dhaka Division, Bangladesh. Our team is ready to provide you with a competitive quote and discuss the suitability of this HMI for your specific requirements.
