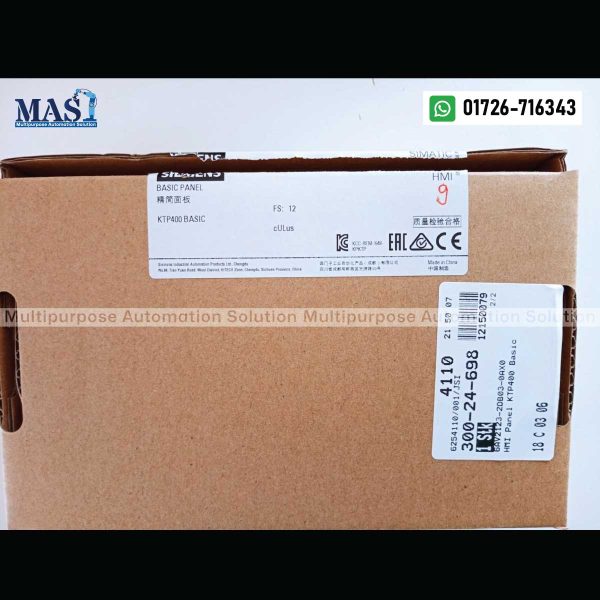

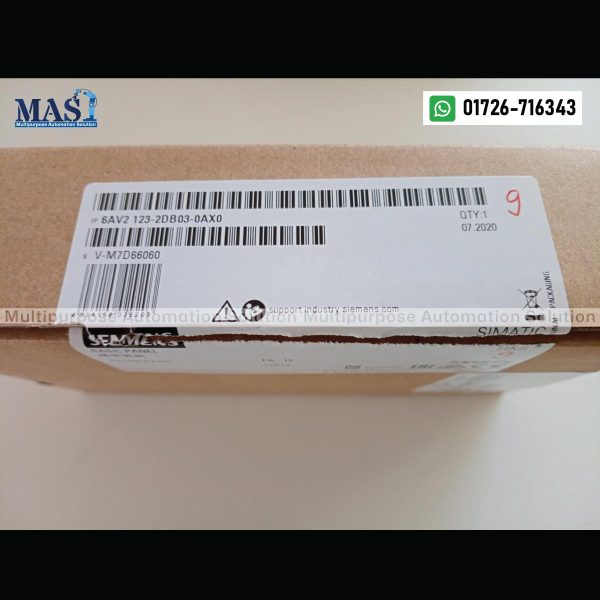

Siemens HMI SIMATIC KTP400 Basic (6AV2123-2DB03-0AX0) – 4.3-inch Widescreen PROFINET Key/Touch Panel – Buy in Bangladesh

For compact and cost-effective visualization and operator control, the Siemens HMI SIMATIC KTP400 Basic (6AV2123-2DB03-0AX0) is an excellent entry-level solution. This 2nd Generation Basic Panel features a crisp 4.3-inch widescreen TFT display capable of showing 65,536 colors, offering both intuitive touch functionality and precise operation via 4 integrated function keys. With its integrated PROFINET (Ethernet) interface, it provides modern and reliable communication for small machines and plant applications. Available at Multipurpose Automation Solution in Gazipur, Dhaka Division, Bangladesh.

Key Features & Specifications of the Siemens HMI SIMATIC KTP400 Basic (6AV2123-2DB03-0AX0):

• Model: SIMATIC KTP400 Basic (Key/Touch Panel 400 Basic PN)
• Part Number: 6AV2123-2DB03-0AX0
• Display Size: 4.3-inch Widescreen TFT LCD
• Display Type: Color TFT with LED backlight
• Colors: 65,536 colors
• Resolution (Pixels): 480 x 272 pixels (WQVGA)
• Control Elements:
  • Resistive analog touch screen
  • 4 freely configurable function keys
• Processor: ARM processor
• Memory for User Data: 10 MB
• Operating System: Proprietary (optimized for HMI applications)
• Communication Ports:
  • 1 x PROFINET (Ethernet) interface (RJ45, 10/100 Mbit/s)
  • 1 x USB Host 2.0 (Type A) for connecting peripheral devices (e.g., USB stick for data archiving/project transfer, keyboard, mouse, barcode scanner).
  • Note: This model does NOT have an integrated PROFIBUS DP interface.
• Real-Time Clock (RTC): Yes, hardware clock, retentive (backup duration typically 6 weeks)
• Audio Output: Buzzer (for alarms/system sounds)
• Power Supply: 24V DC (19.2 V to 28.8 V DC)
• Current Consumption (rated value): Typ. 125 mA (Active power input typ. 3 W)
• Front Panel Protection: IP65 (front) / IP20 (rear)
• Cooling Method: Fan-less (Natural Air Circulation)
• Operating Temperature: 0°C to 50°C (32°F to 122°F)
• Storage/Transport Temperature: -20°C to 60°C (-4°F to 140°F)
• Configuration Software: Configurable with WinCC Basic V13 (TIA Portal) or higher.
• Key Features:
  • Ideal entry-level HMI for simple applications with excellent price/performance ratio.
  • High-resolution widescreen display with dimmable LED backlight (up to 100%).
  • Combined touch and key operation provides flexibility and reliability.
  • Supports essential HMI functions such as alarm logging, recipe management, trend functions, and multi-language switching (up to 10 online languages).
  • User-friendly interface with modern controls and graphics.
  • Efficient engineering within the Totally Integrated Automation (TIA) Portal.
  • Can be mounted in portrait or landscape format.
• Dimensions (W x H x D): 140 mm x 116 mm x 34.9 mm
• Mounting Cutout (W x H): 123 mm x 99 mm
• Weight: Approx. 0.458 kg
• Certifications: CE, cULus, RCM (formerly C-Tick), KC approval.
• Product Lifecycle: PM300: Active Product (ensuring ongoing availability and support)

Why Choose the Siemens HMI SIMATIC KTP400 Basic from Multipurpose Automation Solution in Bangladesh?

At Multipurpose Automation Solution, located in Gazipur, Dhaka Division, Bangladesh, we provide genuine and high-quality industrial automation products. Choosing the Siemens HMI SIMATIC KTP400 Basic from us ensures:

• Best Price in Bangladesh: Contact us directly to get the BEST PRICE for the Siemens HMI SIMATIC KTP400 Basic in the Bangladesh market. We are committed to offering competitive pricing for this popular and essential HMI.
• Compact & Powerful: Delivers robust HMI functionality in a small form factor, making it perfect for space-constrained applications without compromising performance.
• PROFINET Connectivity: Seamlessly integrates into modern PROFINET (Ethernet) networks, ensuring high-speed and reliable communication with Siemens SIMATIC S7-1200/1500 PLCs and other Ethernet-enabled devices.
• User-Friendly & Durable: Features an intuitive touch and key interface and is built with an IP65-rated front panel, ensuring reliable operation even in challenging industrial environments.
• TIA Portal Integration: Fully configurable within the Siemens TIA Portal, simplifying the engineering process and reducing development time for your automation projects.
• Local Availability & Expert Support: Being based in Gazipur, we offer convenient access to this HMI, along with technical support for configuration, integration, and troubleshooting to ensure smooth project execution and optimal system performance.

Applications:

The Siemens HMI SIMATIC KTP400 Basic (6AV2123-2DB03-0AX0) is ideally suited for a variety of industrial applications in Bangladesh that require compact, cost-effective, and reliable visualization and operator control, including:

• Small machines and compact control systems.
• Conveyor belts, packaging machines, and material handling equipment.
• Basic operator panels for pumps, fans, and simple process control.
• Integration into existing systems where PROFINET (Ethernet) is the primary communication network.

Price and Availability in Bangladesh:

For the BEST PRICE and current availability of the Siemens HMI SIMATIC KTP400 Basic (6AV2123-2DB03-0AX0), please CALL US at Multipurpose Automation Solution in Gazipur, Dhaka Division, Bangladesh. Our team is ready to provide you with a competitive quote and discuss the suitability of this HMI for your specific requirements.
