Panasonic 100W SERVO DRIVE “Model No: MADKT1505E” With Servo Motor “Model No: MSMD012G1U” – High-Performance Servo System at Multipurpose Automation Solution

The Panasonic AC Servo Drive “Model No: MADKT1505E” paired with the Servo Motor “Model No: MSMD012G1U” forms a high-performance servo system offered by Multipurpose Automation Solution in Gazipur, Dhaka Division, Bangladesh. This combination from Panasonic’s MINAS A5 series (likely A5IIE) provides precise and dynamic control for a variety of demanding motion control applications.

Key Features & Specifications (Based on MADKT1505E Driver & MSMD012G1U Motor):

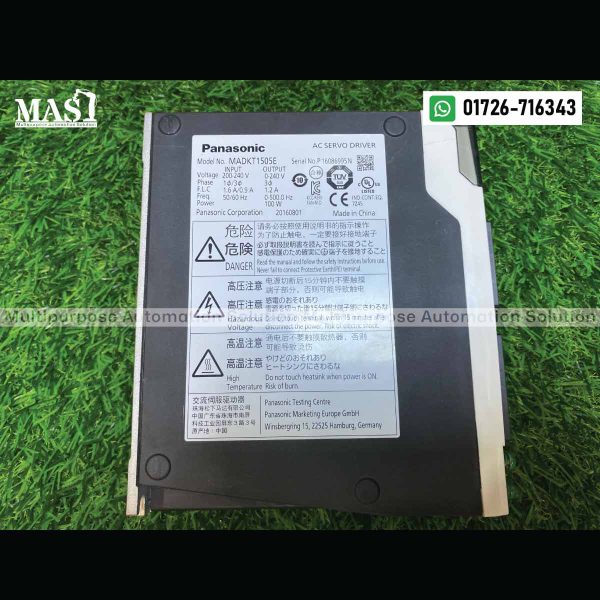

• Servo Driver Model No.: MADKT1505E
  • Series: MINAS A5 (likely A5IIE series Position control type)
  • Input Voltage: Single/3-phase 200-240V AC
  • Output Current: 5 A (Current detector rating), 10 A (Max. current rating)
  • Control Method: Position control
  • Encoder Feedback: 20-bit incremental encoder
  • Communication: USB interface for parameter setting and monitoring. RS-485 communication may be supported depending on the specific model within the A5 series.
  • Frequency Response: 2.3 kHz
  • Protection Features: Over-voltage, over-current, overload, over-speed, overheating, and other protective functions (verify specific manual).
  • Compact Design: Space-saving design for efficient installation.

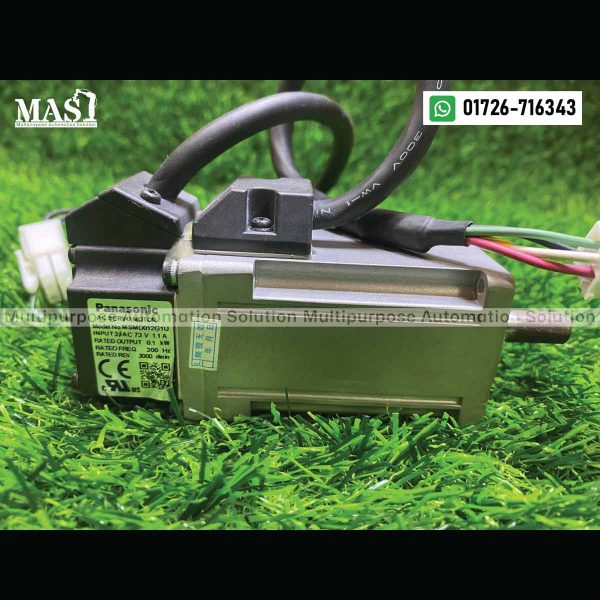

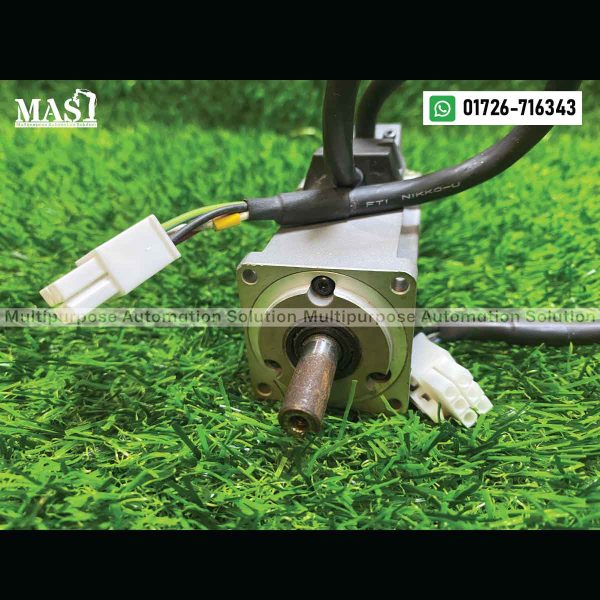

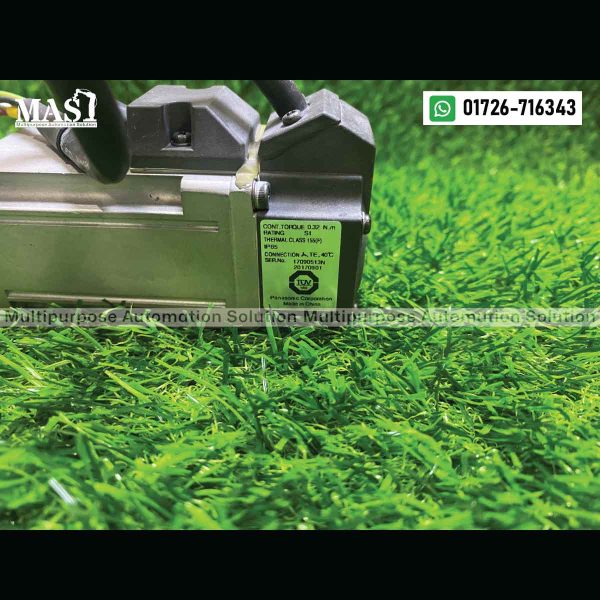

• Servo Motor Model No.: MSMD012G1U
  • Series: MINAS A5 (MSMD series – Compact, High-Inertia)
  • Rated Output Power: 100 W (0.1 kW)
  • Rated Torque: 0.318 Nm
  • Rated Speed: 3000 rpm
  • Maximum Speed: 5000 rpm
  • Encoder Resolution: 20-bit incremental encoder (same as supported by the driver)

Key Benefits:

• Optimized System: The MADKT1505E driver is compatible with the MSMD012G1U motor, ensuring seamless operation.
• High Precision Control: 20-bit encoder in both driver and motor provides accurate positioning.
• High Response: 2.3 kHz frequency response in the driver enables fast and precise motion.
• Versatile Control Modes: Supports position control for various applications.
• Reliable Performance: Panasonic is a globally recognized and trusted brand in automation.
• Integrated Communication: USB interface for easy setup and monitoring. RS-485 for network connectivity (if supported by the driver).
• Comprehensive Protection: Ensures the safety and longevity of the drive and motor.

Applications:

• Robotics
• Semiconductor manufacturing equipment
• Packaging machinery
• Machine tools
• Automated assembly lines
• High-speed and high-accuracy positioning systems requiring a 100W motor.

Why Buy the Panasonic 100W SERVO DRIVE and MOTOR from Multipurpose Automation Solution?

At Multipurpose Automation Solution in Gazipur, Dhaka Division, Bangladesh, we are committed to providing reliable and high-performance motion control solutions. Choosing this Panasonic AC Servo system from us offers several advantages:

• Competitive Pricing: We offer the Panasonic AC Servo Drive (MADKT1505E) and Motor (MSMD012G1U) at a combined price of 20,000 Taka.
• Technical Expertise: Our knowledgeable team can provide guidance on integrating and configuring this servo system for your specific motion control requirements in Gazipur.
• Local Availability: Based in Gazipur, we can offer timely support and address your automation needs efficiently.
• Quality Products: We supply genuine Panasonic servo drives and motors, ensuring reliable and long-lasting performance.

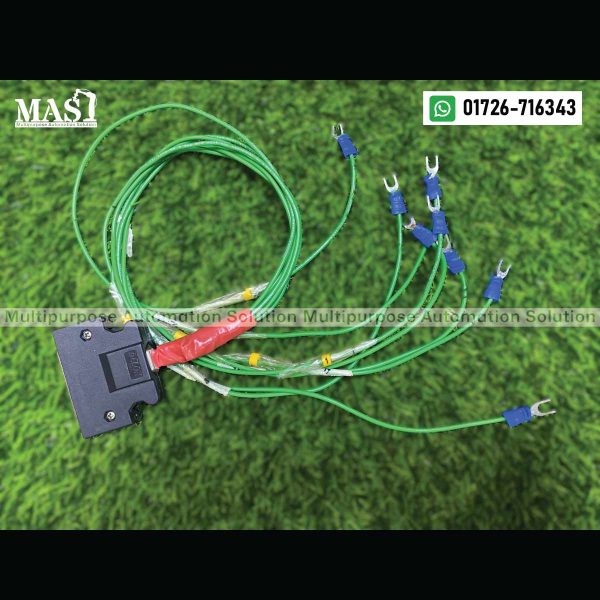

• Comprehensive Solutions: We can assist you with cables and other automation components for a complete motion control solution.

Price & Availability:

The Panasonic 100W SERVO DRIVE (Model No: MADKT1505E) with Servo Motor (Model No: MSMD012G1U) is available at Multipurpose Automation Solution for a price of 20,000 Taka. Contact us today for the most current availability and to discuss your specific motion control application in Gazipur, Dhaka Division, Bangladesh. Our team is ready to help you implement a precise and dynamic motion control system.
