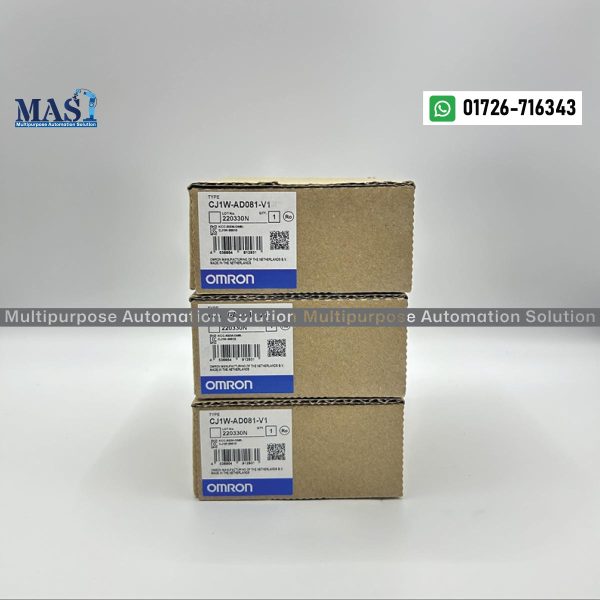

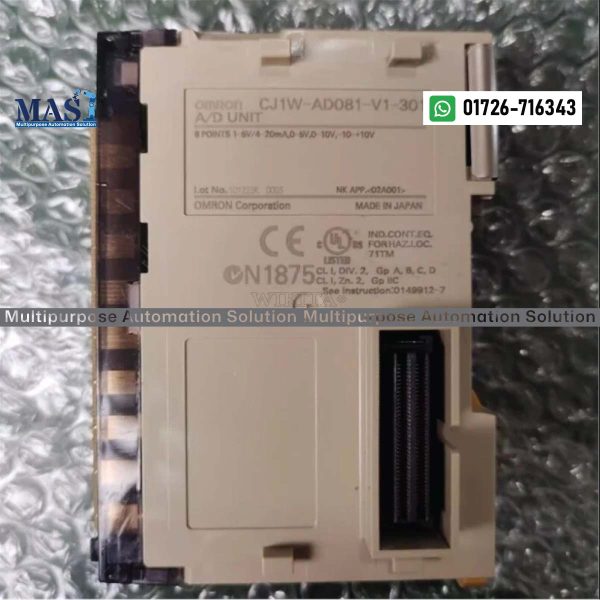

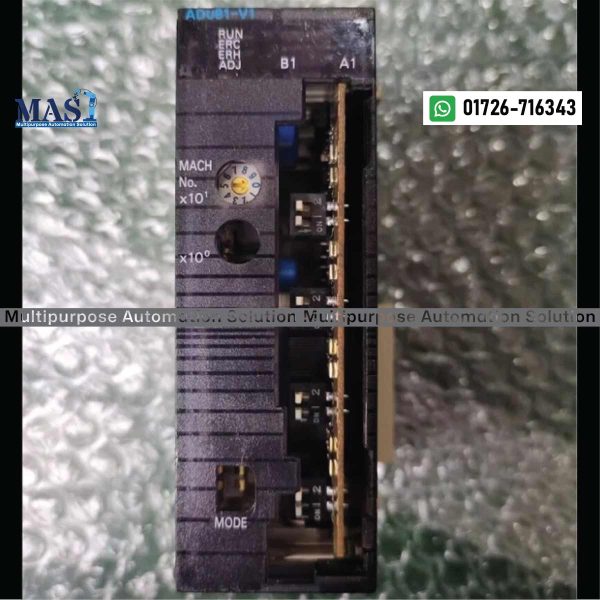

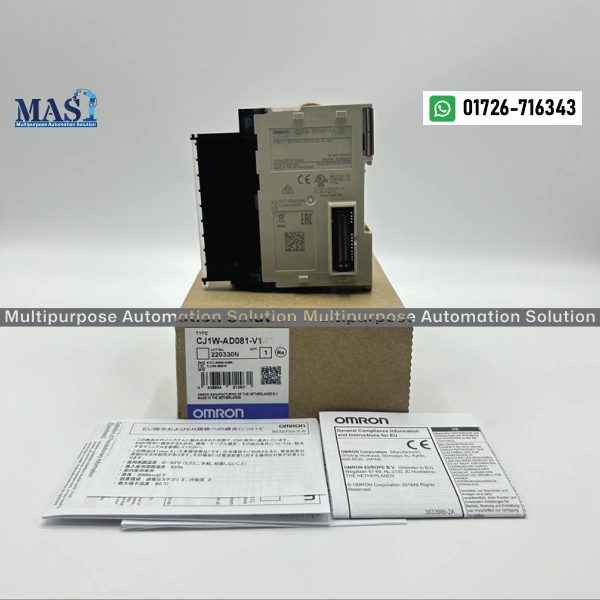

Omron PLC CJ1W-AD081-V1 – 8-Channel Analog Input Unit for CJ-series PLCs – Buy in Bangladesh

Enhance the precision and monitoring capabilities of your Omron CJ-series PLC system with the Omron PLC CJ1W-AD081-V1. This versatile 8-channel analog input unit is designed to seamlessly integrate with Omron CJ1 and CJ1M CPU units, allowing for accurate conversion of various real-world analog signals from sensors and transducers into digital data for your PLC. With configurable input ranges, high resolution, and robust features like averaging and scaling, the CJ1W-AD081-V1 is an indispensable tool for precise process control, data acquisition, and machine monitoring in diverse industrial environments. Available at Multipurpose Automation Solution in Gazipur, Dhaka Division, Bangladesh.

Key Features & Specifications of the Omron PLC CJ1W-AD081-V1:

• Model: CJ1W-AD081-V1
• Manufacturer: Omron Corporation
• Series Compatibility: Omron CJ-series PLCs (CJ1 and CJ1M CPU Units).
• Module Type: Analog Input Unit (Special I/O Unit).
• Number of Channels: 8 independent analog input channels.
• Input Signal Ranges (Configurable per Channel):
  • Voltage: 1 to 5 V, 0 to 5 V, 0 to 10 V, -10 to 10 V.
  • Current: 4 to 20 mA.
• Maximum Rated Input (for 1 point):
  • Voltage Input: ±15 V
  • Current Input: ±30 mA
• Input Impedance:
  • Voltage Input: 1 MΩ min.
  • Current Input: 250 Ω (rated value).
• Resolution: 1/4,000 (settable to 1/8,000). Converted output data is 16-bit binary.
• A/D Conversion Period: 1 ms/point (can be set to 250 μs/point). Note: Resolution and conversion speed are linked (e.g., 1/4,000 resolution corresponds to 1 ms/point).
• Accuracy (at ambient temperature of 25°C):
  • Voltage Input: ±0.2% of F.S. (Full Scale).
  • Current Input: ±0.4% of F.S.
• Accuracy (at 0°C to 55°C):
  • Voltage Input: ±0.4% of F.S.
  • Current Input: ±0.6% of F.S.
• Isolation: Photocoupler isolation between I/O signals and the controller side, ensuring signal integrity.
• Input Functions: Supports various advanced functions including:
  • Mean value processing (averaging).
  • Peak value holding.
  • Scaling to engineering units.
  • Input disconnection detection.
  • Offset/gain adjustment.
• External Terminals: 18-point detachable screw terminal block (M3 screws) for convenient and reliable wiring.
• Power Consumption: 420 mA max. at 5 VDC (supplied internally by the CPU Unit).
• Allocated Unit Numbers: 1 unit number.
• Operating Temperature: 0°C to 55°C (32°F to 131°F).
• Storage Temperature: -25°C to 75°C (-13°F to 167°F).
• Configuration Software: Programmed and configured using Omron’s CX-Programmer (part of the Sysmac Studio suite).
• Key Features:
  • High-resolution analog-to-digital conversion for accurate data.
  • Flexible input ranges for both voltage and current signals.
  • Fast conversion speed suitable for dynamic processes.
  • Built-in functions for enhanced signal processing (averaging, scaling).
  • Photocoupler isolation for robust and reliable operation.
  • Compact design for efficient panel space utilization.
• Dimensions (W x H x D): 31 mm x 90 mm x 65 mm.
• Weight: Approx. 0.14 kg (140 g).
• Certifications: CE, cULus (UC1), NK, Lloyd (L).

Why Choose the Omron PLC CJ1W-AD081-V1 from Multipurpose Automation Solution in Bangladesh?

At Multipurpose Automation Solution, located in Gazipur, Dhaka Division, Bangladesh, we are dedicated to providing genuine and high-quality industrial automation products. Choosing the Omron PLC CJ1W-AD081-V1 from us ensures:

• Best Price in Bangladesh: Contact us directly to get the BEST PRICE for the Omron PLC CJ1W-AD081-V1 in the Bangladesh market. We are committed to offering competitive pricing for this essential analog input module.
• Authentic Omron Product: Guarantee of original Omron quality, ensuring reliable performance, high accuracy, and seamless compatibility with your CJ-series PLC system.
• Enhanced Analog Monitoring: Equip your PLC with 8 precise analog inputs, enabling comprehensive monitoring of crucial process variables like temperature, pressure, flow, and level.
• Versatile Application: Supports a wide array of analog sensors with its multiple input range options, making it adaptable to various industrial control needs.
• Reliable Performance: Omron’s robust design and isolation features ensure stable and accurate data acquisition in demanding industrial environments.
• Local Availability & Expert Support: Being based in Gazipur, we offer convenient access to this PLC module, along with technical understanding and support for Omron CJ-series products, assisting you in optimizing your automation solution.

Applications:

The Omron PLC CJ1W-AD081-V1 is ideally suited for a wide range of industrial applications in Bangladesh requiring precise analog signal acquisition and control, including:

• Process Control: Monitoring and controlling temperature, pressure, flow rates, and liquid levels in chemical plants, food processing, and pharmaceutical industries.
• Machine Monitoring: Acquiring data from sensors on machinery for predictive maintenance, performance analysis, and quality control.
• HVAC Systems: Integrating analog sensor data for precise climate control and energy management.
• Water Treatment Plants: Monitoring water quality parameters, tank levels, and pump pressures.
• Energy Management Systems: Tracking voltage, current, and power consumption for efficiency optimization.

Price and Availability in Bangladesh:

For the BEST PRICE and current availability of the Omron PLC CJ1W-AD081-V1, please CALL US at Multipurpose Automation Solution in Gazipur, Dhaka Division, Bangladesh. Our team is ready to provide you with a competitive quote and discuss the suitability of this module for your specific automation project.
