OMRON HMI NS5-SQ11B-V2 – 5.7-inch Color TFT Touch Screen HMI with Ethernet & Black Case – Buy in Bangladesh

Achieve precise and intuitive control over your industrial processes with the Omron HMI NS5-SQ11B-V2. This 5.7-inch Human Machine Interface features a vibrant color TFT display (QVGA 320×240 pixels), a sleek black case, robust communication options including Ethernet, and ample memory, making it a reliable choice for diverse automation applications, especially where a black aesthetic and compact size are preferred. Available at Multipurpose Automation Solution in Gazipur, Dhaka Division, Bangladesh.

Key Features & Specifications of the OMRON HMI NS5-SQ11B-V2:

• Model: NS5-SQ11B-V2
• Case Color: Black
• Display Size: 5.7-inch TFT Color LCD
• Resolution: 320 x 240 pixels (QVGA)
• Colors: 256 colors (supports 32,768 colors for .BMP/.JPG files)
• Processor: (Specific processor details often not explicitly listed, but designed for responsive HMI operation)
• Memory: 60 MByte (User Memory for screen data)
• Backlight: LED backlight
• Backlight Life: Up to 50,000 hours (some sources indicate 75,000 hours)
• Touchscreen: Matrix Resistive Membrane

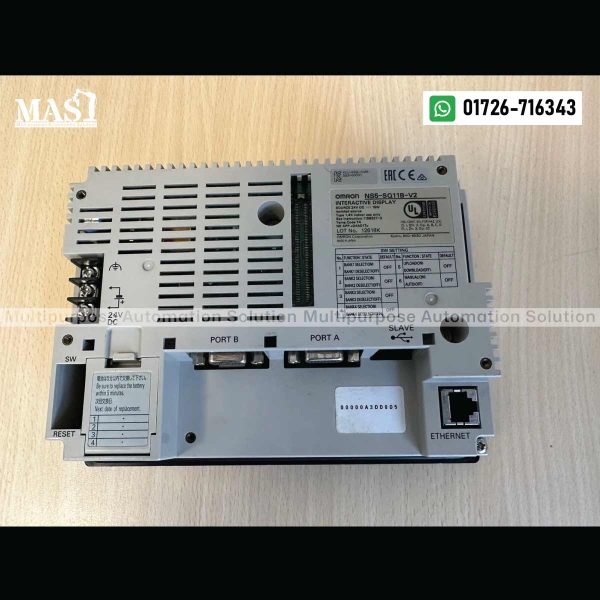

• Communication Ports:
  • RS-232C ports x 2 (9-pin D-Sub connectors)
  • Ethernet (10/100 Base-T) x 1 (RJ45 port)
  • USB Host port x 1
  • USB Slave port x 1 (for programming)
• Real-Time Clock (RTC): Built-in
• Power Supply: 24V DC (Input Range: 20.4V to 27.6V DC)
• Front Panel Protection: IP65 / NEMA 4 (Dust Tight, Water Resistant)
• Cooling System: Fan-less
• Operating Temperature: 0°C to 50°C (32°F to 122°F)
• Software: Programmed with Omron CX-Designer software.
• Advanced Features:
  • Supports Smart Active Parts (SAP) for easy configuration.
  • Ladder Monitor function for direct PLC program monitoring.
  • Data logging capabilities.
  • Multi-language support (up to 16 languages).
  • Supports various protocols including EtherNet/IP and Modbus TCP/IP.
• Dimensions: 195mm (W) x 142mm (H) x 49mm (D)
• Panel Cutout: 184mm x 131mm
• Weight: Approximately 0.85 kg

Why Choose the OMRON HMI NS5-SQ11B-V2 from Multipurpose Automation Solution in Bangladesh?

At Multipurpose Automation Solution, located in Gazipur, Dhaka Division, Bangladesh, we provide genuine and high-quality industrial automation products. Choosing the OMRON HMI NS5-SQ11B-V2 from us ensures:

• Best Price in Bangladesh: Contact us directly to get the BEST PRICE for the OMRON HMI NS5-SQ11B-V2 in the Bangladesh market. We are committed to offering competitive pricing.
• Reliable Omron Quality: Benefit from Omron’s reputation for robust and dependable industrial automation equipment.
• Compact Design with Aesthetic Appeal: The 5.7-inch QVGA display provides a clear interface for smaller applications, complemented by its distinct black casing.
• Local Availability & Support: Being based in Gazipur, we offer convenient access to this HMI, along with technical expertise to assist with integration and basic troubleshooting for this model.
• Versatile Connectivity: Equipped with two RS-232C ports, Ethernet, and USB ports, it offers flexible options for communicating with Omron PLCs and other devices.
• Proven Functionality: The NS series is known for its comprehensive features including data logging, multi-language support, and ladder monitoring, making it suitable for various control applications.

Applications:

The OMRON HMI NS5-SQ11B-V2 is well-suited for a broad spectrum of industrial applications in Bangladesh, including:

• Machine control and process visualization in compact systems.
• Data acquisition and basic supervisory control in space-constrained environments.
• Operator interface for smaller industrial machinery, especially where a black HMI panel is desired.
• Integration with Omron PLCs (Sysmac CS/CJ series, etc.) via serial or Ethernet communication.
• Applications requiring robust HMI functionality without the need for the latest cutting-edge features, in a compact form factor.

Price and Availability in Bangladesh:

For the BEST PRICE and current availability of the OMRON HMI NS5-SQ11B-V2, please CALL US at Multipurpose Automation Solution in Gazipur, Dhaka Division, Bangladesh. Our team is ready to provide you with a competitive quote and discuss the suitability of this model for your specific requirements.
