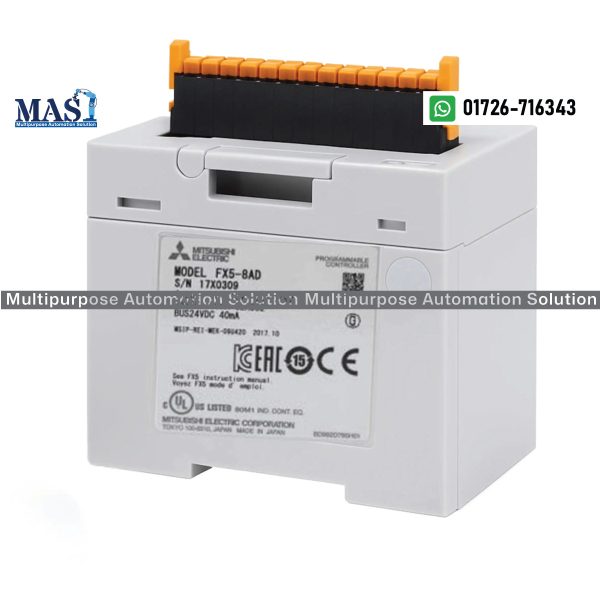

Mitsubishi PLC FX5-8AD – 8-Channel Analog Input Module for MELSEC iQ-F Series – Buy in Bangladesh

For precise measurement and control of analog signals in industrial automation, the Mitsubishi PLC FX5-8AD is an essential analog input module designed for the high-performance MELSEC iQ-F (FX5U/FX5UC) series PLCs. This versatile module provides 8 integrated analog input channels, capable of handling a wide range of voltage, current, thermocouple, and RTD inputs. Its high resolution and fast conversion speed ensure accurate data acquisition for critical process control and monitoring applications. Available at Multipurpose Automation Solution in Gazipur, Dhaka Division, Bangladesh.

Key Features & Specifications of the Mitsubishi PLC FX5-8AD:

• Model: FX5-8AD
• Manufacturer: Mitsubishi Electric
• Series Compatibility: MELSEC iQ-F Series (FX5U, FX5UC, FX5UJ CPU modules)
• Module Type: Analog Input Module (combines Analog Input + Thermocouple/RTD inputs)
• Number of Channels: 8 integrated analog input channels
• Input Types & Ranges:
  • Voltage Input: -10V to +10V DC, 0V to 10V DC, 0V to 5V DC, 1V to 5V DC
  • Current Input: -20mA to +20mA DC, 0mA to 20mA DC, 4mA to 20mA DC
  • Thermocouple Input: Types K, J, T, B, R, S
  • Resistance Temperature Detector (RTD) Input: Pt100, Ni100 (3-wire type only)
• Resolution:
  • Voltage/Current: 16-bit signed binary (-32000 to +32000), offering high precision (e.g., 156.25μV for 0-5V, 500nA for 4-20mA)
  • Thermocouple/RTD: 0.1°C (or 0.1-0.3°C depending on type)
• Conversion Speed:
  • Voltage/Current: 1 ms/channel (or 1 ms/2 channels in 2CH conversion mode)
  • Thermocouple/RTD: 40 ms/channel
• Accuracy: Within ±0.3% to ±0.5% of full scale (depending on ambient temperature and input type)
• Isolation Method: Photocoupler between input terminal and PLC; Non-isolation between input channels.
• Power Supply: 24V DC (supplied from the PLC CPU module, typically 40 mA current consumption)
• Occupied I/O Points on PLC: 8 points
• Front Panel Protection: Not directly applicable (module mounts inside a control panel).
• Operating Temperature: -20°C to 55°C
• Storage/Transport Temperature: -25°C to 70°C
• Configuration Software: Programmed and configured using Mitsubishi Electric’s GX Works3 software.
• Key Features:
  • Highly versatile input capabilities: can combine voltage, current, thermocouple, and RTD inputs within a single module.
  • High-resolution (16-bit) analog-to-digital conversion for accurate measurements.
  • Fast conversion speed suitable for dynamic systems.
  • Supports auto-refresh function for continuous data updates.
  • Easy wiring with spring clamp terminal blocks.
  • Compact and robust design for seamless integration into MELSEC iQ-F systems.
  • Disconnection detection for thermocouples and RTDs to reduce downtime.
• Dimensions (W x H x D): 50 mm x 90 mm x 83 mm
• Weight: Approx. 0.3 kg
• Certifications: CE, UL/cUL, EAC, UKCA, various shipping approvals (ABS, BV, DNV GL, KR, LR, NK, RINA).
• Product Lifecycle: Current / Active Product. (Sales started July 1, 2017)

Why Choose the Mitsubishi PLC FX5-8AD from Multipurpose Automation Solution in Bangladesh?

At Multipurpose Automation Solution, located in Gazipur, Dhaka Division, Bangladesh, we are dedicated to providing genuine and high-quality industrial automation products. Choosing the Mitsubishi PLC FX5-8AD from us ensures:

• Best Price in Bangladesh: Contact us directly to get the BEST PRICE for the Mitsubishi PLC FX5-8AD in the Bangladesh market. We are committed to offering competitive pricing for this essential PLC module.
• Genuine Mitsubishi Electric Product: Guarantee of original Mitsubishi Electric quality, ensuring seamless compatibility and reliable performance with your MELSEC iQ-F series PLCs.
• High Performance & Versatility: Provides 8 channels of high-resolution analog input, supporting a wide range of sensor types (voltage, current, temperature), making it suitable for diverse industrial applications.
• Seamless Integration: Designed specifically for the MELSEC iQ-F series (FX5U/FX5UC), ensuring easy installation and configuration within your existing or new Mitsubishi automation systems using GX Works3.
• Robust & Reliable: Built to Mitsubishi Electric’s high standards for durability and performance in challenging industrial environments.
• Local Availability & Expert Support: Being based in Gazipur, we offer convenient access to this PLC module, along with technical understanding and support for Mitsubishi automation products.

Applications:

The Mitsubishi PLC FX5-8AD is ideally suited for a wide range of industrial applications in Bangladesh where precise analog signal acquisition and processing are critical, including:

• Process Automation: Monitoring and controlling temperature, pressure, flow rates, and levels in chemical plants, food processing, water treatment, and pharmaceuticals.
• Machine Automation: Integrating sensors for real-time data processing in packaging machines, textile machinery, and robotic systems.
• Energy Management: Monitoring voltage and current in power distribution and energy consumption systems.
• Building Management Systems: HVAC control and environmental monitoring.
• Quality Control: Precise measurement of various parameters to ensure product quality.

Price and Availability in Bangladesh:

For the BEST PRICE and current availability of the Mitsubishi PLC FX5-8AD, please CALL US at Multipurpose Automation Solution in Gazipur, Dhaka Division, Bangladesh. Our team is ready to provide you with a competitive quote and discuss the suitability of this module for your specific automation project.
