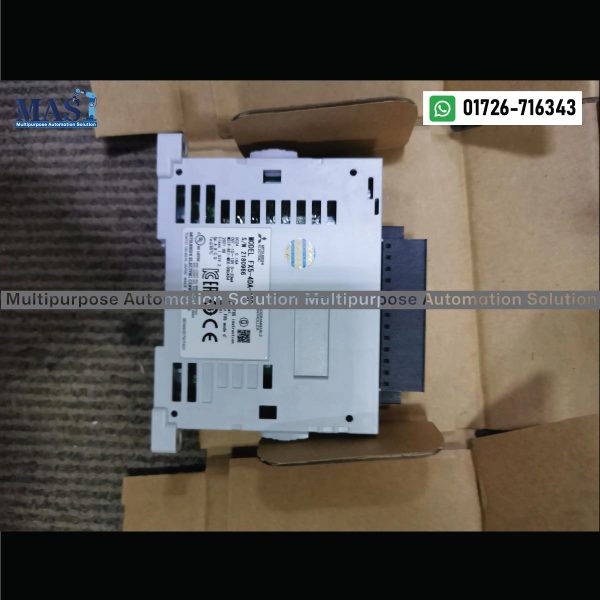

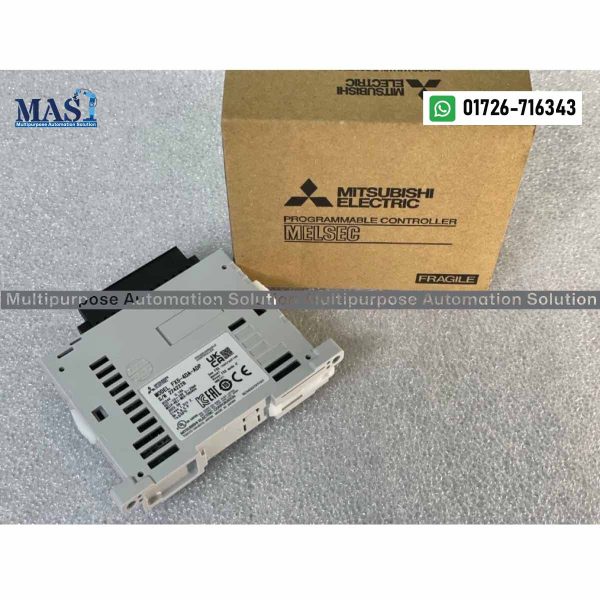

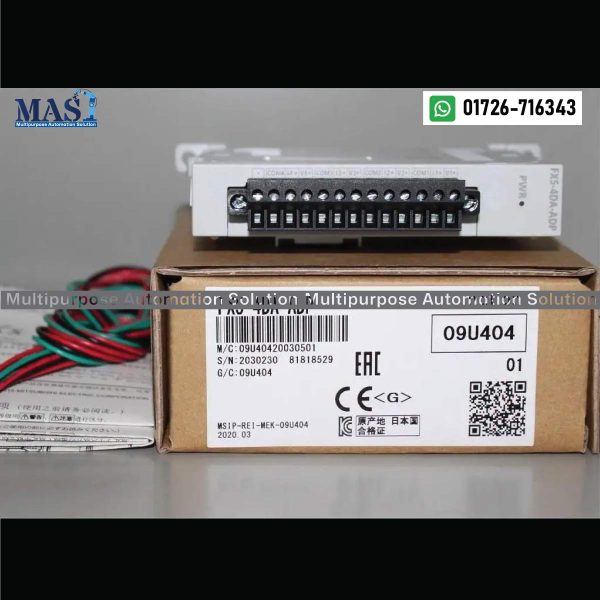

Mitsubishi PLC FX5-4DA-ADP – 4-Channel Analog Output Adapter for MELSEC iQ-F Series – Buy in Bangladesh

Achieve precise and flexible analog control with the Mitsubishi PLC FX5-4DA-ADP, a compact 4-channel analog output adapter designed specifically for the advanced MELSEC iQ-F (FX5U/FX5UC) series compact PLCs. This essential adapter provides flexible output options for both voltage and current signals across its four independent channels. With high resolution and fast conversion speeds, it enables accurate and reliable control of various industrial devices, critical for sophisticated process regulation, motor speed control, and valve modulation applications. Available at Multipurpose Automation Solution in Gazipur, Dhaka Division, Bangladesh.

Key Features & Specifications of the Mitsubishi PLC FX5-4DA-ADP:

• Model: FX5-4DA-ADP
• Manufacturer: Mitsubishi Electric
• Series Compatibility: MELSEC iQ-F Series (FX5U, FX5UC CPU modules from Ver. 1.010 or later). Also compatible with FX5S, FX5UJ.
• Module Type: Analog Output Special Adapter (mounts to the left side of the CPU or other adapters)
• Number of Channels: 4 integrated analog output channels
• Output Types & Ranges (configurable per channel):
  • Voltage Output: -10V to +10V DC, 0V to 10V DC, 0V to 5V DC, 1V to 5V DC
  • Current Output: 0mA to 20mA DC, 4mA to 20mA DC
• Resolution:
  • Voltage Output: Up to 15-bit binary + sign (for -10V to +10V DC range), or 12-bit binary (for 0-10V, 0-5V, 1-5V ranges).
  • Current Output: Up to 14-bit binary (for 0-20mA, 4-20mA ranges).
• D/A Conversion Time (Conversion Speed): Maximum 950 µs per module (data is updated at every PLC scan time).
• Accuracy:
  • Within ±0.1% of full scale (at 25°C ±5°C ambient temperature)
  • Within ±0.2% of full scale (at 0°C to 55°C ambient temperature)
• External Load Resistance:
  • Voltage Output: 1 kΩ to 1 MΩ
  • Current Output: 0 to 500 Ω
• Isolation Method: Photocoupler isolation between the analog output circuit and the PLC internal circuit. Channels are uninsulated from each other.
• Power Supply:
  • 5V DC, 10mA (internal power supply from CPU module)
  • 24V DC, 160mA (external power supply connected to the adapter’s power terminal)
• Occupied I/O Points on PLC: 0 points (Special adapters do not consume standard I/O points, maximizing PLC I/O capacity).
• Operating Temperature: 0°C to 55°C (32°F to 131°F)
• Storage/Transport Temperature: -25°C to 75°C (-13°F to 167°F)
• Configuration Software: Programmed and configured using Mitsubishi Electric’s GX Works3 software (Ver. 1.007H or later for FX5U/FX5UC).
• Key Features:
  • High-resolution digital-to-analog conversion for highly accurate control signals.
  • Versatile output types (voltage/current) configurable per channel.
  • Fast conversion speed suitable for dynamic process control.
  • Compact “adapter” design that connects directly to the PLC’s special adapter slot, saving space and I/O points.
  • Easy connection with spring-clamp terminal blocks, reducing wiring time.
  • Robust design for reliable performance in industrial environments.
• Dimensions (W x H x D): 17.6 mm x 106 mm x 89.1 mm
• Weight: Approx. 0.1 kg (100 grams)
• Certifications: CE, UL/cUL, EAC, UKCA, and various shipping approvals (ABS, BV, DNV GL, KR, LR, NK, RINA).

Why Choose the Mitsubishi PLC FX5-4DA-ADP from Multipurpose Automation Solution in Bangladesh?

At Multipurpose Automation Solution, located in Gazipur, Dhaka Division, Bangladesh, we are dedicated to providing genuine and high-quality industrial automation products. Choosing the Mitsubishi PLC FX5-4DA-ADP from us ensures:

• Best Price in Bangladesh: Contact us directly to get the BEST PRICE for the Mitsubishi PLC FX5-4DA-ADP in the Bangladesh market. We are committed to offering competitive pricing for this essential iQ-F series analog output adapter.
• Authentic Mitsubishi Electric Product: Guarantee of original Mitsubishi Electric quality, ensuring seamless compatibility and reliable performance with your MELSEC iQ-F series PLCs.
• Advanced Analog Control: Benefit from high-resolution, multi-range analog output, enabling precise control of various actuators and devices in your automation system.
• Space-Saving & Efficient: Its compact adapter design connects directly to the CPU, conserving valuable panel space and simplifying wiring, enhancing the overall efficiency of your control system.
• Seamless iQ-F Integration: Designed specifically for the MELSEC iQ-F series, ensuring easy installation and configuration within your advanced automation systems using GX Works3.
• Local Availability & Expert Support: Being based in Gazipur, we offer convenient access to this PLC adapter, along with technical understanding and support for Mitsubishi iQ-F series products, assisting you in optimizing your automation solution.

Applications:

The Mitsubishi PLC FX5-4DA-ADP is ideally suited for a wide range of industrial applications in Bangladesh where precise analog output control is critical, including:

• Process Control: Regulating flow, pressure, temperature, and speed in modern manufacturing, chemical, and food & beverage plants.
• Motor Control: Providing precise speed commands to variable frequency drives (VFDs) and servo drives.
• Valve & Actuator Control: Modulating proportional valves and other analog actuators for fine control of processes.
• Machine Automation: Generating analog setpoints or control signals for various equipment in high-performance machinery and production lines.

Price and Availability in Bangladesh:

For the BEST PRICE and current availability of the Mitsubishi PLC FX5-4DA-ADP, please CALL US at Multipurpose Automation Solution in Gazipur, Dhaka Division, Bangladesh. Our team is ready to provide you with a competitive quote and discuss the suitability of this adapter for your specific automation project.
