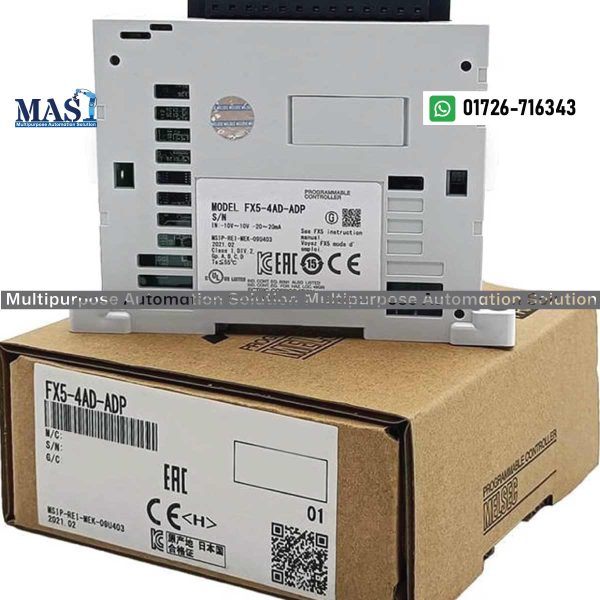

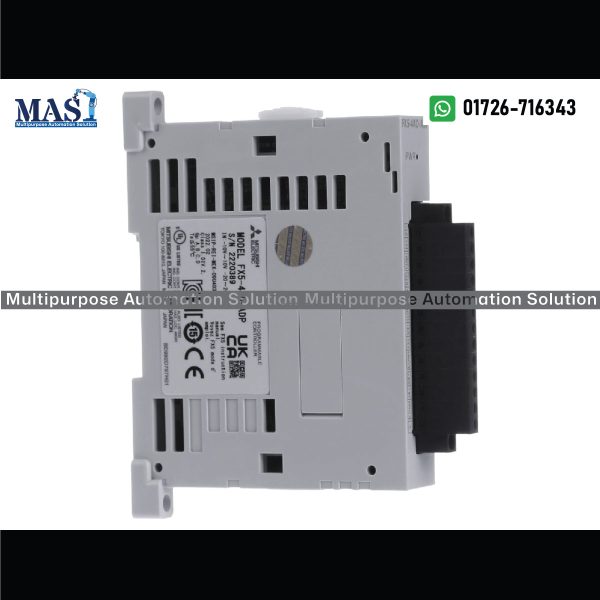

Mitsubishi PLC FX5-4AD-ADP – 4-Channel Analog Input Adapter for MELSEC iQ-F Series – Buy in Bangladesh

Achieve highly precise and versatile analog signal acquisition with the Mitsubishi PLC FX5-4AD-ADP, a compact 4-channel analog input adapter designed specifically for the advanced MELSEC iQ-F (FX5U/FX5UC) series compact PLCs. This essential adapter provides flexible input options for both voltage and current signals across its four independent channels. With high resolution and fast conversion speeds, it enables accurate data collection from a wide array of industrial sensors, critical for sophisticated process control, monitoring, and data logging applications. Available at Multipurpose Automation Solution in Gazipur, Dhaka Division, Bangladesh.

Key Features & Specifications of the Mitsubishi PLC FX5-4AD-ADP:

• Model: FX5-4AD-ADP
• Manufacturer: Mitsubishi Electric
• Series Compatibility: MELSEC iQ-F Series (FX5U, FX5UC CPU modules from Ver. 1.010 or later). Also compatible with FX5S, FX5UJ.
• Module Type: Analog Input Special Adapter (mounts to the left side of the CPU or other adapters)
• Number of Channels: 4 integrated analog input channels
• Input Types & Ranges (configurable per channel):
  • Voltage Input: -10V to +10V DC, 0V to 10V DC, 0V to 5V DC, 1V to 5V DC
  • Current Input: -20mA to +20mA DC, 0mA to 20mA DC, 4mA to 20mA DC
• Resolution:
  • Voltage Input: Up to 15-bit binary + sign (e.g., 0.32 mV for ±10V range), or 12-bit binary for 0-10V, 0-5V, 1-5V ranges.
  • Current Input: Up to 14-bit binary + sign (e.g., 1.25 µA for ±20mA range), or 11-bit binary for 0-20mA, 4-20mA ranges.
• A/D Conversion Time: Maximum 450 µs per module (data is updated at every PLC scan time).
• Accuracy:
  • Within ±0.1% of full scale (at 25°C ±5°C ambient temperature)
  • Within ±0.2% of full scale (at 0°C to 55°C ambient temperature)
• Absolute Maximum Input:
  • Voltage: ±15V DC
  • Current: ±30mA DC
• Isolation Method: Photocoupler isolation between the analog input circuit and the PLC internal circuit. Channels are uninsulated from each other.
• Power Supply:
  • 5V DC, 10mA (internal power supply from CPU module)
  • 24V DC, 20mA (external power supply from CPU module’s 24V DC supply)
• Occupied I/O Points on PLC: 0 points (Special adapters do not consume standard I/O points, maximizing PLC I/O capacity).
• Operating Temperature: 0°C to 55°C (32°F to 131°F)
• Storage/Transport Temperature: -25°C to 75°C (-13°F to 167°F)
• Configuration Software: Programmed and configured using Mitsubishi Electric’s GX Works3 software (Ver. 1.007H or later for FX5U/FX5UC).
• Key Features:
  • High-resolution analog-to-digital conversion for highly accurate measurements.
  • Versatile input types (voltage/current) configurable per channel.
  • Fast conversion speed suitable for dynamic process monitoring.
  • Compact “adapter” design that connects directly to the PLC’s special adapter slot, saving space and I/O points.
  • Easy connection with spring-clamp terminal blocks, reducing wiring time.
  • Robust design for reliable performance in industrial environments.
• Dimensions (W x H x D): 17.6 mm x 106 mm x 89.1 mm
• Weight: Approx. 0.1 kg (100 grams)
• Certifications: CE, UL/cUL, EAC, UKCA, and various shipping approvals (ABS, BV, DNV GL, KR, LR, NK, RINA).

Why Choose the Mitsubishi PLC FX5-4AD-ADP from Multipurpose Automation Solution in Bangladesh?

At Multipurpose Automation Solution, located in Gazipur, Dhaka Division, Bangladesh, we are dedicated to providing genuine and high-quality industrial automation products. Choosing the Mitsubishi PLC FX5-4AD-ADP from us ensures:

• Best Price in Bangladesh: Contact us directly to get the BEST PRICE for the Mitsubishi PLC FX5-4AD-ADP in the Bangladesh market. We are committed to offering competitive pricing for this essential iQ-F series analog input adapter.
• Authentic Mitsubishi Electric Product: Guarantee of original Mitsubishi Electric quality, ensuring seamless compatibility and reliable performance with your MELSEC iQ-F series PLCs.
• Advanced Analog Capabilities: Benefit from high-resolution, multi-range analog input, enabling precise data acquisition for demanding process control and monitoring tasks.
• Space-Saving & Efficient: Its compact adapter design connects directly to the CPU, conserving panel space and simplifying wiring, enhancing the overall efficiency of your control system.
• Seamless iQ-F Integration: Designed specifically for the MELSEC iQ-F series, ensuring easy installation and configuration within your advanced automation systems using GX Works3.
• Local Availability & Expert Support: Being based in Gazipur, we offer convenient access to this PLC adapter, along with technical understanding and support for Mitsubishi iQ-F series products, assisting you in optimizing your automation solution.

Applications:

The Mitsubishi PLC FX5-4AD-ADP is ideally suited for a wide range of industrial applications in Bangladesh where precise analog signal acquisition and processing are critical, including:

• Process Control: Monitoring and controlling temperature, pressure, flow rates, and levels in modern manufacturing, chemical, and food & beverage plants.
• Machine Automation: Integrating advanced sensors for real-time data processing in high-performance machinery, robotics, and complex production lines.
• Quality Assurance: Precise measurement of various analog parameters to maintain consistent product quality and optimize processes.
• Environmental Monitoring: Acquiring data from sensors for industrial facility management and environmental compliance.

Price and Availability in Bangladesh:

For the BEST PRICE and current availability of the Mitsubishi PLC FX5-4AD-ADP, please CALL US at Multipurpose Automation Solution in Gazipur, Dhaka Division, Bangladesh. Our team is ready to provide you with a competitive quote and discuss the suitability of this adapter for your specific automation project.
