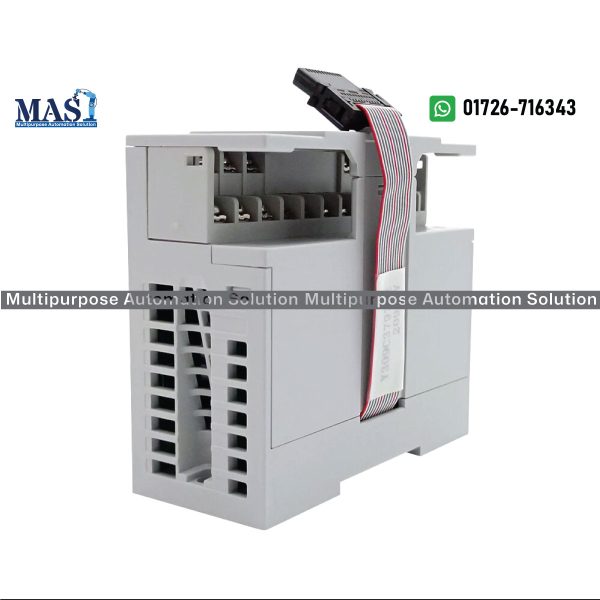

Mitsubishi PLC FX5-16EYT/ES – 16-Point Transistor Output Extension Module for MELSEC iQ-F Series – Buy in Bangladesh

Significantly expand the output capabilities of your MELSEC iQ-F series PLC system with the Mitsubishi PLC FX5-16EYT/ES, a high-density and high-speed 16-point digital output extension module. Designed for seamless integration with FX5U, FX5UC, FX5S, and FX5UJ CPU modules, this module provides ample 24V DC transistor (sink type) outputs, essential for controlling fast-acting loads such as solenoid valves, indicators, and especially for precise pulse output applications like driving stepper motors or servo amplifiers. Its rapid response time and robust design ensure reliable and accurate control for dynamic and complex automation processes. Available at Multipurpose Automation Solution in Gazipur, Dhaka Division, Bangladesh.

Key Features & Specifications of the Mitsubishi PLC FX5-16EYT/ES:

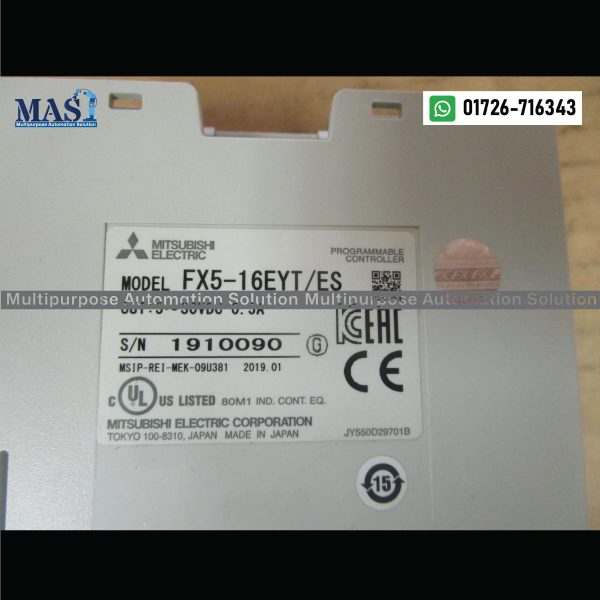

• Model: FX5-16EYT/ES
• Manufacturer: Mitsubishi Electric
• Series Compatibility: MELSEC iQ-F Series (FX5U, FX5UC, FX5S, FX5UJ CPU modules).
• Module Type: Digital Output Extension Module (unpowered type, drawing power from the CPU module).
• Number of Outputs: 16 digital output points.
• Output Type: Transistor output (Sink type / NPN).
• Output Voltage Range: 5V DC to 30V DC.
• Maximum Load Current: 0.5 A per point (500 mA/point).
• Total Load Current: 1.6 A or less per common terminal (typically one common per 8 outputs).
• Open Circuit Leakage Current: 0.1 mA/30V DC or less.
• Voltage Drop at ON: 1.5 V or less.
• Output Response Time: 0.2 ms or less (at 200 mA, 24V DC) for both ON→OFF and OFF→ON.
• Output Circuit Insulation: Photo-coupler isolation between the output circuit and the PLC internal circuit.
• Indication of Output Operation: Integrated LED indicator for each output point (lights up when output is ON).
• Connection Type: Screw terminal block (M3 screws) for secure and reliable wiring.
• Power Supply (Internal Current Consumption):
  • 5V DC: 100 mA (supplied from the CPU module).
  • 24V DC: 125 mA (supplied from the CPU module’s 24V DC service power or external 24V DC supply).
• Occupied I/O Points on PLC: 16 points (This module consumes 16 digital I/O points from the CPU’s total capacity).
• Operating Temperature: 0°C to 55°C (32°F to 131°F).
• Storage/Transport Temperature: -25°C to 75°C (-13°F to 167°F).
• Configuration Software: Programmed and configured using Mitsubishi Electric’s GX Works3 software.
• Key Features:
  • High-density transistor output expansion for MELSEC iQ-F PLCs.
  • High-speed transistor outputs ideal for fast-acting loads and precise pulse control applications.
  • Flexible 5-30V DC output range (sink type).
  • Photo-coupler isolation for improved noise immunity and reliability.
  • Compact and lightweight design for efficient use of panel space.
  • Easy integration and configuration within the GX Works3 environment.
• Dimensions (W x H x D): 40 mm x 90 mm x 83 mm.
• Weight: Approx. 0.2 kg.
• Certifications: CE, UL/cUL, EAC, UKCA, and various shipping approvals (ABS, BV, DNV GL, KR, LR, NK, RINA).

Why Choose the Mitsubishi PLC FX5-16EYT/ES from Multipurpose Automation Solution in Bangladesh?

At Multipurpose Automation Solution, located in Gazipur, Dhaka Division, Bangladesh, we are dedicated to providing genuine and high-quality industrial automation products. Choosing the Mitsubishi PLC FX5-16EYT/ES from us ensures:

• Best Price in Bangladesh: Contact us directly to get the BEST PRICE for the Mitsubishi PLC FX5-16EYT/ES in the Bangladesh market. We are committed to offering competitive pricing for this high-density iQ-F series transistor output expansion module.
• Authentic Mitsubishi Electric Product: Guarantee of original Mitsubishi Electric quality, ensuring reliable performance and seamless compatibility with your MELSEC iQ-F series PLCs.
• Substantial Output Capacity for High-Speed Control: Effortlessly expand your PLC’s digital output capabilities, enabling control of a larger number of devices and actuators, especially where rapid switching or pulse output is required.
• High Performance & Reliability: Benefits from Mitsubishi’s renowned engineering for extremely fast output response and robust operation in demanding industrial environments.
• Seamless iQ-F Integration: Designed specifically for the MELSEC iQ-F series, ensuring easy installation and configuration within your modern automation systems using GX Works3.
• Local Availability & Expert Support: Being based in Gazipur, we offer convenient access to this PLC module, along with technical understanding and support for Mitsubishi iQ-F series products, assisting you in optimizing your automation solution.

Applications:

The Mitsubishi PLC FX5-16EYT/ES is ideally suited for a wide range of industrial applications in Bangladesh where a significant number of additional high-speed transistor output points are required for precise control, including:

• High-Speed Machine Control: Activating numerous solenoid valves, indicators, and small relays in packaging, assembly, and pick-and-place machinery.
• Motion Control: Providing pulse trains to stepper motor drivers or servo amplifiers for multi-axis positioning tasks.
• Semiconductor & Electronics Manufacturing: Applications requiring rapid and precise switching of devices.
• Sorting & Inspection Systems: Controlling high-speed actuators for material diversion or rejection in automated sorting lines.
• Control Panel Expansion: Increasing I/O density in control cabinets for fast-acting discrete control signals.

Price and Availability in Bangladesh:

For the BEST PRICE and current availability of the Mitsubishi PLC FX5-16EYT/ES, please CALL US at Multipurpose Automation Solution in Gazipur, Dhaka Division, Bangladesh. Our team is ready to provide you with a competitive quote and discuss the suitability of this module for your specific automation project.
