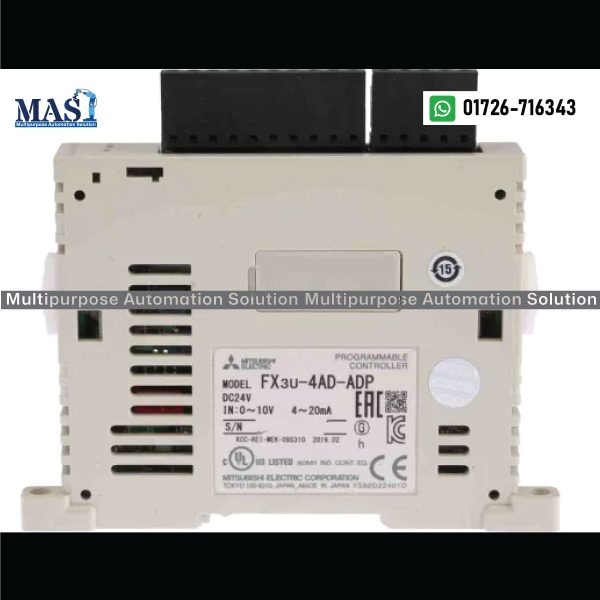

Mitsubishi PLC FX3U-4AD-ADP – 4-Channel Analog Input Adapter for MELSEC FX3U Series – Buy in Bangladesh

For precise and versatile analog signal acquisition in industrial automation, the Mitsubishi PLC FX3U-4AD-ADP is a compact 4-channel analog input adapter designed for seamless integration with the robust MELSEC FX3U series compact PLCs. This essential adapter connects directly to the PLC’s left-side adapter slot, providing flexible input options for both voltage and current signals. Its high resolution and fast conversion speed enable accurate data collection from a wide array of industrial sensors, crucial for various process control and monitoring applications. Available at Multipurpose Automation Solution in Gazipur, Dhaka Division, Bangladesh.

Key Features & Specifications of the Mitsubishi PLC FX3U-4AD-ADP:

• Model: FX3U-4AD-ADP
• Manufacturer: Mitsubishi Electric
• Series Compatibility: MELSEC FX3U Series PLCs (also compatible with FX3S, FX3G, FX3GC, FX3GE, FX3UC CPUs with appropriate adapter cables/settings).
• Module Type: Analog Input Special Adapter
• Number of Channels: 4 integrated analog input channels
• Input Types & Ranges:
  • Voltage Input: 0V to 10V DC (Input resistance: 194 kΩ)
  • Current Input: 4mA to 20mA DC (Input resistance: 250 Ω)
  • Note: Each channel can be independently configured for either voltage or current input.
• Absolute Maximum Input:
  • Voltage: -0.5V, +15V
  • Current: -2mA, +30mA
• Resolution:
  • Voltage Input: 12-bit binary (e.g., 2.5mV for 0-10V range)
  • Current Input: 11-bit binary (e.g., 10µA for 4-20mA range, based on 16mA span)
• Conversion Speed:
  • Approximately 200 µs (for FX3U/FX3UC PLCs)
  • Approximately 250 µs (for FX3S/FX3G/FX3GC PLCs)
  • Data is updated every PLC scan time.
• Accuracy:
  • Within ±0.5% of full scale (at 25°C ±5°C ambient temperature)
  • Within ±1.0% of full scale (at 0°C to 55°C ambient temperature)
• Isolation Method: Photocoupler isolation between analog input circuit and PLC internal circuit; DC/DC converter isolation between power supply and analog input section. Channels are non-isolated from each other.
• Power Supply:
  • 5V DC, 15mA (supplied internally from the PLC CPU unit)
  • 24V DC, 40mA (external power supply connection required for the adapter itself)
• Occupied I/O Points on PLC: 0 points (Special adapters do not consume standard I/O points, allowing for maximum I/O expansion of the CPU).
• Front Panel Protection: Not directly applicable (adapter mounts inside a control panel).
• Operating Temperature: 0°C to 55°C (32°F to 131°F)
• Storage/Transport Temperature: -25°C to 75°C (-13°F to 167°F)
• Configuration Software: Programmed and configured using Mitsubishi Electric’s GX Works2 or GX Works3 software.
• Key Features:
  • High-resolution analog-to-digital conversion for accurate measurements.
  • Versatile input types (voltage/current) configurable per channel.
  • Fast conversion speed suitable for dynamic process monitoring.
  • Compact “adapter” design that connects directly to the PLC’s special adapter slot, saving space and I/O points.
  • Easy connection with screw-clamp terminal blocks.
  • Robust design for seamless integration into MELSEC FX3U systems.
• Dimensions (W x H x D): 17.6 mm x 90 mm x 89.5 mm
• Weight: Approx. 0.1 kg
• Certifications: CE, UL/cUL, EAC, UKCA, and various shipping approvals (ABS, BV, DNV GL, KR, LR, NK, RINA).

Why Choose the Mitsubishi PLC FX3U-4AD-ADP from Multipurpose Automation Solution in Bangladesh?

At Multipurpose Automation Solution, located in Gazipur, Dhaka Division, Bangladesh, we are dedicated to providing genuine and high-quality industrial automation products. Choosing the Mitsubishi PLC FX3U-4AD-ADP from us ensures:

• Best Price in Bangladesh: Contact us directly to get the BEST PRICE for the Mitsubishi PLC FX3U-4AD-ADP in the Bangladesh market. We are committed to offering competitive pricing for this essential PLC adapter.
• Authentic Mitsubishi Electric Product: Guarantee of original Mitsubishi Electric quality, ensuring seamless compatibility and reliable performance with your MELSEC FX3U series PLCs.
• Compact & Efficient: As a special adapter, it offers a compact solution for adding 4 analog inputs without consuming standard I/O points, optimizing your PLC system’s capacity and panel space.
• High Precision & Versatility: Provides accurate analog data acquisition from a wide range of voltage and current sensors, making it ideal for diverse industrial applications.
• Seamless Integration: Designed specifically for the MELSEC FX3U series, ensuring easy installation and configuration within your existing or new Mitsubishi automation systems using GX Works2/3.
• Local Availability & Expert Support: Being based in Gazipur, we offer convenient access to this PLC adapter, along with technical understanding and support for Mitsubishi automation products.

Applications:

The Mitsubishi PLC FX3U-4AD-ADP is ideally suited for a wide range of industrial applications in Bangladesh where precise analog signal acquisition and processing are critical, including:

• Process Control: Monitoring and controlling temperature, pressure, flow rates, and levels in various industrial processes.
• Machine Automation: Integrating analog sensors for real-time data processing in manufacturing, packaging, and assembly machinery.
• Quality Control: Precise measurement of various analog parameters to ensure consistent product quality.
• Energy Monitoring: Acquiring data from analog sensors to monitor energy consumption or power quality in industrial facilities.

Price and Availability in Bangladesh:

For the BEST PRICE and current availability of the Mitsubishi PLC FX3U-4AD-ADP, please CALL US at Multipurpose Automation Solution in Gazipur, Dhaka Division, Bangladesh. Our team is ready to provide you with a competitive quote and discuss the suitability of this adapter for your specific automation project.
