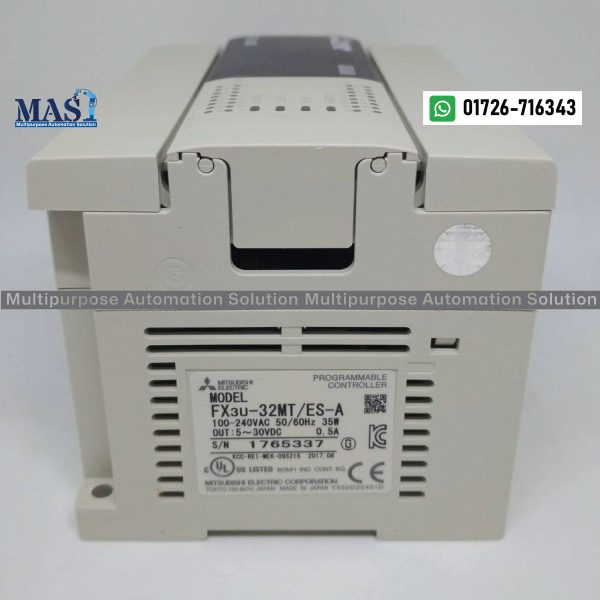

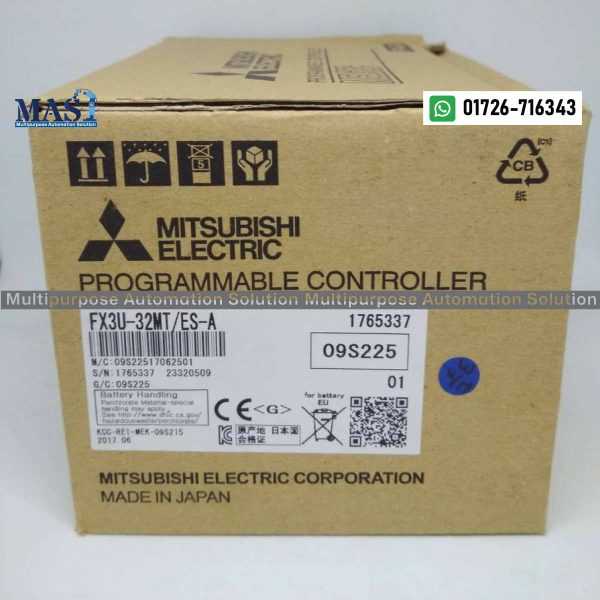

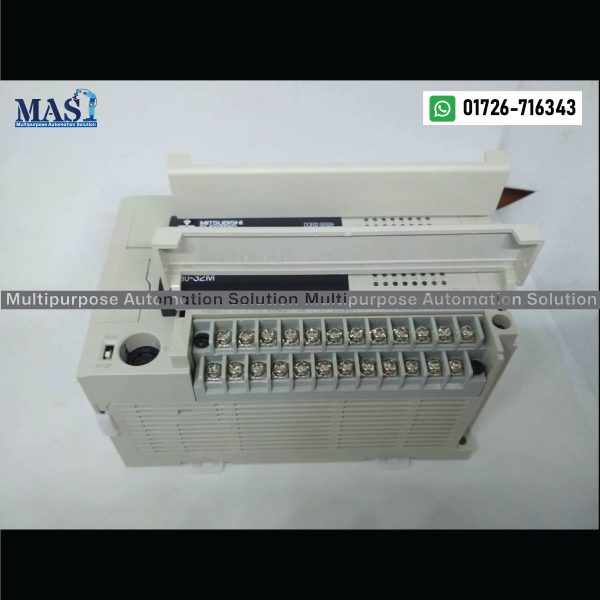

Mitsubishi PLC FX3U-32MT/ES-A – 32-Point AC Powered Transistor Output CPU – Buy in Bangladesh

Experience high-speed processing and robust control with the Mitsubishi PLC FX3U-32MT/ES-A, a powerful 32-point compact main unit from the advanced MELSEC FX3U series. This CPU offers 16 digital inputs and 16 transistor outputs, making it ideal for a wide range of industrial automation applications requiring fast response times and precise control of actuators. Powered by an AC supply (100-240V AC), the FX3U-32MT/ES-A delivers exceptional performance and expandability for demanding systems. Available at Multipurpose Automation Solution in Gazipur, Dhaka Division, Bangladesh.

Key Features & Specifications of the Mitsubishi PLC FX3U-32MT/ES-A:

• Model: FX3U-32MT/ES-A
• Manufacturer: Mitsubishi Electric
• Series: MELSEC FX3U Series (Third Generation Micro PLC)
• Module Type: PLC Main Unit (CPU Base Unit)
• I/O Points: 32 total points
  • Digital Inputs: 16 points (24V DC, Sink/Source compatible)
  • Digital Outputs: 16 points (Transistor, Sink type, high-speed switching)
• Power Supply: 100-240V AC
• Program Memory: 64,000 steps (64K steps) RAM (with battery backup for program and data)
• Processing Speed:
  • Basic Instruction: 65 ns/instruction
  • Application Instruction (MOV): 642 ns/instruction
• Built-in Communication Ports:
  • 1 x RS-422 (for programming, HMI connection, or communication)
  • Expandable with optional communication boards (RS232C, RS485, USB, Ethernet)
• High-Speed Counter Functions:
  • Multiple single-phase and two-phase high-speed counter inputs (e.g., up to 100 kHz for single-phase).
• Pulse Output Functions:
  • Up to 4 channels of 100 kHz pulse outputs for precise positioning control of servo drives or stepper motors.
• Expandability:
  • Maximum control scale up to 384 I/O points (including remote I/O via CC-Link, AnyWireASLINK).
  • Connects to various FX3U and FX2N series special function modules and expansion units.
• Power Consumption: 35W
• Integrated Real-Time Clock (RTC): Yes
• Protection Class: IP10
• Operating Temperature: 0°C to 55°C (32°F to 131°F)
• Storage/Transport Temperature: -25°C to 75°C (-13°F to 167°F)
• Configuration Software: Programmed and configured using Mitsubishi Electric’s GX Works2 or GX Works3 software.
• Key Features:
  • Combines power supply, CPU, and I/O into a compact unit.
  • High-speed processing capability for complex and time-critical applications.
  • Extensive built-in functions including positioning, analog control, and network communication.
  • Flexible expandability with a wide range of FX3U series modules and special adapters.
  • Transistor outputs for direct control of high-speed loads and positioning.
  • Robust design for reliable operation in industrial environments.
• Dimensions (W x H x D): 150 mm x 90 mm x 86 mm
• Weight: Approx. 0.65 kg
• Certifications: CE, UL/cUL, EAC, UKCA, and various shipping approvals (ABS, BV, DNV GL, KR, LR, NK, RINA).

Why Choose the Mitsubishi PLC FX3U-32MT/ES-A from Multipurpose Automation Solution in Bangladesh?

At Multipurpose Automation Solution, located in Gazipur, Dhaka Division, Bangladesh, we are dedicated to providing genuine and high-quality industrial automation products. Choosing the Mitsubishi PLC FX3U-32MT/ES-A from us ensures:

• Best Price in Bangladesh: Contact us directly to get the BEST PRICE for the Mitsubishi PLC FX3U-32MT/ES-A in the Bangladesh market. We are committed to offering competitive pricing for this high-performance PLC CPU.
• Authentic Mitsubishi Electric Product: Guarantee of original Mitsubishi Electric quality, ensuring reliable performance, full compatibility, and long-term stability for your automation systems.
• High Performance & Versatility: This CPU offers industry-leading processing speed, comprehensive built-in functions, and extensive expandability, making it suitable for a wide array of demanding industrial control tasks.
• Robust & Reliable: Built to Mitsubishi Electric’s renowned standards for durability and performance in challenging industrial environments, ensuring continuous and dependable operation.
• Local Availability & Expert Support: Being based in Gazipur, we offer convenient access to this PLC, along with technical understanding and support for Mitsubishi automation products, assisting you from selection to implementation.

Applications:

The Mitsubishi PLC FX3U-32MT/ES-A is ideally suited for a wide range of industrial applications in Bangladesh requiring a powerful and expandable compact PLC, including:

• Machine Automation: Controlling complex machinery, packaging lines, textile machines, and material handling systems.
• Process Control: Managing automated processes in manufacturing, food and beverage, and water treatment plants.
• Positioning Control: High-precision control of servo and stepper motor applications.
• Building Automation: Integrated control systems for HVAC, lighting, and access control.
• General Industrial Control: Any application benefiting from high-speed digital I/O and advanced functionality.

Price and Availability in Bangladesh:

For the BEST PRICE and current availability of the Mitsubishi PLC FX3U-32MT/ES-A, please CALL US at Multipurpose Automation Solution in Gazipur, Dhaka Division, Bangladesh. Our team is ready to provide you with a competitive quote and discuss the suitability of this PLC for your specific automation project.
