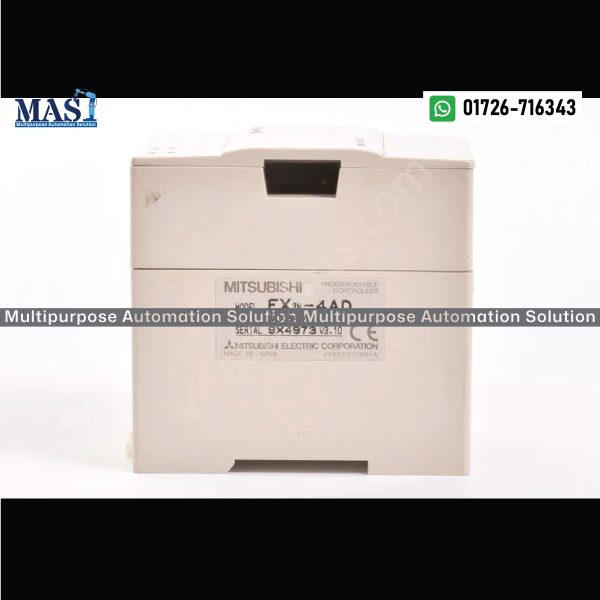

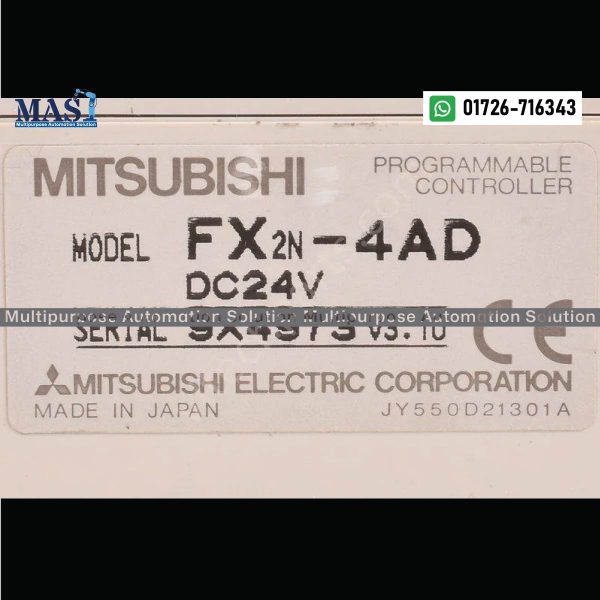

Mitsubishi PLC FX2N-4AD – 4-Channel Analog Input Expansion Module (12-Bit) – Buy in Bangladesh

Expand the analog sensing capabilities of your Mitsubishi MELSEC-F series PLC systems significantly with the Mitsubishi PLC FX2N-4AD analog input module. This versatile special function block provides four high-resolution 12-bit analog input channels, empowering your PLC to accurately read and process various real-world analog signals, including bipolar voltage (-10V to +10V) and bipolar current (-20mA to +20mA), from a wide array of industrial sensors and transducers. Designed for seamless integration with FX2N and other compatible FX series CPUs, the FX2N-4AD is an indispensable component for demanding process control, advanced monitoring, and comprehensive data acquisition applications. Available at Multipurpose Automation Solution in Gazipur, Dhaka Division, Bangladesh.

Key Features & Specifications of the Mitsubishi PLC FX2N-4AD:

• Model: FX2N-4AD
• Manufacturer: Mitsubishi Electric
• Series: MELSEC-F Series (Designed for FX2N, compatible with FX0N, FX1N, FX2NC, FX3G, FX3GE, FX3GC, FX3U, FX3UC PLCs)
• Module Type: Analog Input Expansion Module (Special Function Block)
• Input Channels: 4 independent analog input channels.
• Supported Input Types:
  • Voltage Input: -10V DC to +10V DC (Input resistance: 200kΩ).
  • Current Input: -20mA DC to +20mA DC (Input resistance: 250Ω).
  • (Note: Each channel can be independently configured for either voltage or current input.)
• Resolution: 12-bit (11 bits + sign bit) analog-to-digital conversion, providing precise measurement capability:
  • 5mV resolution for -10V to +10V DC range.
  • 20µA resolution for -20mA to +20mA DC range.
• Accuracy: High overall accuracy, typically ±1% of full scale for both voltage and current inputs.
• A/D Conversion Time: Fast conversion speeds, selectable at 15ms/channel (Normal speed) or 6ms/channel (High speed).
• Occupied I/O Points: Occupies 8 I/O points from the connected PLC’s total I/O capacity.
• Power Supply: Powered directly from the PLC main unit’s internal 5V DC (30mA) and 24V DC (55mA) supplies, simplifying wiring.
• Isolation:
  • Photo-coupler isolation between the analog input circuit and the PLC system for noise immunity.
  • DC/DC converter isolation between the analog input area and the power supply unit.
  • (Channels are not individually isolated from each other.)

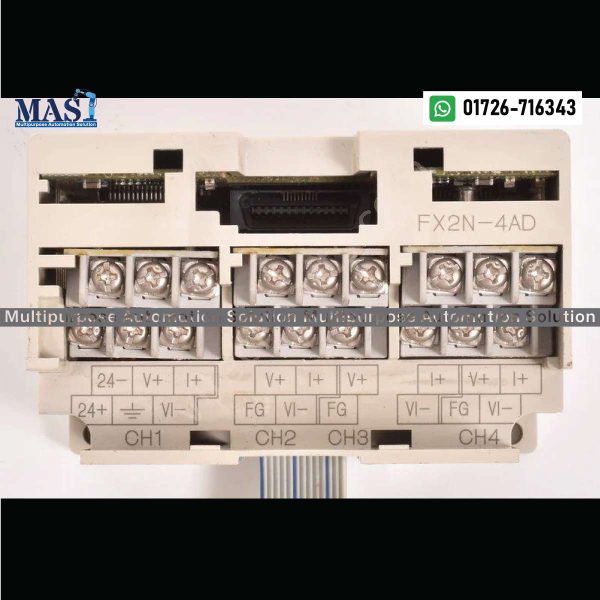

• Connection Type: Reliable screw-clamp terminals for secure and easy wiring.
• Dimensions (W x H x D): Compact size of approximately 55 mm × 90 mm × 87 mm, optimizing cabinet space.
• Weight: Lightweight at approximately 0.3 kg (300g).
• Mounting: Standard DIN rail mounting for easy installation.
• Software Compatibility: Programmed and configured using Mitsubishi Electric’s intuitive GX Developer or GX Works2 software.
• Operating Environment:
  • Operating Temperature: 0°C to 55°C (32°F to 131°F).
  • Storage Temperature: -25°C to 75°C (-13°F to 167°F).
  • Relative Humidity: 5% to 95% RH (non-condensing).
• Certifications: Complies with major international standards including CE, UL/cUL, KC, ABS, DNV GL, KR, NK, EAC, and UKCA, ensuring global usability and safety.

Why Choose the Mitsubishi PLC FX2N-4AD from Multipurpose Automation Solution in Bangladesh?

At Multipurpose Automation Solution, located in Gazipur, Dhaka Division, Bangladesh, we are dedicated to supplying authentic and high-quality industrial automation components. Choosing the Mitsubishi PLC FX2N-4AD from us ensures:

• Competitive Pricing: Acquire this versatile Mitsubishi analog input module for just 8500 BDT. We are committed to providing cost-effective solutions for your automation needs in the Bangladesh market.
• Genuine Mitsubishi Electric Product: Guarantee of an authentic Mitsubishi module, ensuring reliability, compatibility, and consistent performance with your existing FX series PLC systems.
• High-Resolution & Versatile Analog Input: The 12-bit resolution and support for both bipolar voltage and current inputs across four channels provide flexibility and accuracy for diverse sensor types.
• Independent Channel Configuration: Each of the four channels can be set for a different input type (voltage or current), offering great flexibility for complex applications.

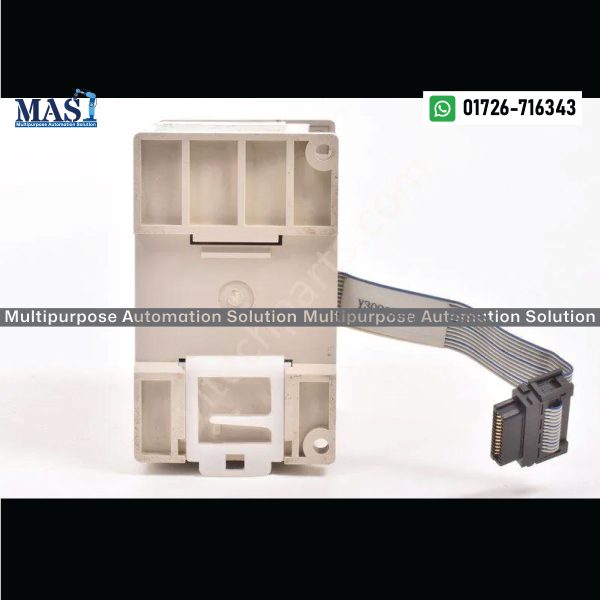

• Seamless Integration: Designed to easily connect to the right side of the FX2N and other compatible FX series PLC CPUs via an integrated extension cable, simplifying system expansion.
• Robust & Reliable: Built to Mitsubishi’s high industrial standards, ensuring long-term reliability and stable operation in challenging factory environments.
• Local Availability & Expert Support: Being based in Gazipur, we offer convenient access to this crucial PLC component, along with local technical understanding and support for Mitsubishi automation products, helping you optimize your control systems.

Applications:

The Mitsubishi PLC FX2N-4AD is widely used in various industrial automation applications across Bangladesh that require accurate and multi-channel analog signal processing, including:

• Process Control: Comprehensive monitoring and control of multiple parameters like temperature, pressure, flow, level, and pH in chemical, food, and pharmaceutical industries.
• Machine Automation: Reading feedback from multiple sensors for precise positioning, force measurement, and real-time adjustment in complex machinery.
• Building Management Systems: Integrating various environmental sensors for advanced HVAC control, energy optimization, and facility monitoring.
• Data Acquisition Systems: Collecting extensive analog process data for trending, analysis, and historical logging across multiple points.
• Quality Control: Simultaneous measurement of multiple analog parameters for product quality assurance and defect detection.
• Factory Automation: Centralized analog input processing for larger production lines and automated systems.

Price and Availability in Bangladesh:

The Mitsubishi PLC FX2N-4AD is available for 8500 BDT. To purchase or inquire further, please contact Multipurpose Automation Solution in Gazipur, Dhaka Division, Bangladesh. Our team is ready to assist you with your industrial automation and control system requirements.
