Mitsubishi PLC FX2N-2DA – 2-Channel Analog Output Expansion Module (12-Bit) – Buy in Bangladesh

Gain precise analog control capabilities for your Mitsubishi MELSEC-F series PLC systems with the Mitsubishi PLC FX2N-2DA analog output module. This powerful special function block provides two high-resolution 12-bit analog output channels, enabling your PLC to accurately generate and control real-world analog signals such as voltage (0-10V, 0-5V) or current (4-20mA). Designed for seamless integration with FX2N and other compatible FX series CPUs, the FX2N-2DA is an essential component for driving variable speed drives, modulating valves, actuators, and other analog-controlled industrial devices, ensuring fine-tuned process control and automation. Available at Multipurpose Automation Solution in Gazipur, Dhaka Division, Bangladesh.

Key Features & Specifications of the Mitsubishi PLC FX2N-2DA:

• Model: FX2N-2DA
• Manufacturer: Mitsubishi Electric
• Series: MELSEC-F Series (Designed for FX2N, compatible with FX0N, FX1N, FX2N, FX2NC, FX3G, FX3GE, FX3GC, FX3U, FX3UC PLCs)
• Module Type: Analog Output Expansion Module (Special Function Block)
• Output Channels: 2 independent analog output channels.
• Supported Output Types:
  • Voltage Output: 0-10V DC, 0-5V DC.
  • Current Output: 4-20mA DC.
  • (Note: Both channels can be configured independently for different output characteristics, e.g., one voltage and one current output.)
• Resolution: 12-bit (binary) digital-to-analog conversion, corresponding to 0 to 4000 digital units, providing fine control:
  • 2.5mV per step for 0-10V DC range.
  • 1.25mV per step for 0-5V DC range.
  • 4µA per step for 4-20mA DC range.
• Accuracy: High overall accuracy, typically ±1% of full scale for both voltage (±0.1V) and current (±0.16mA) outputs.
• D/A Conversion Time: Fast conversion at 4ms per channel, ensuring quick and responsive control.
• Occupied I/O Points: Occupies 8 I/O points from the connected PLC’s total I/O capacity.
• External Load Resistance:
  • For Voltage Output: 2k to 1MΩ.
  • For Current Output: 400Ω or less.
• Power Supply: Powered directly from the PLC main unit’s internal 5V DC (30mA) and 24V DC (85mA) supplies, simplifying power wiring.
• Isolation:
  • Photo-coupler isolation between the analog output circuit and the PLC system for noise immunity.
  • DC/DC converter isolation for the power supply unit.
  • (Channels are not individually isolated from each other.)
• Adjustments: Features physical OFFSET and GAIN adjustment volumes on the module for precise tuning of output characteristics.
• Connection Type: Reliable screw-clamp terminals for secure and easy wiring.
• Dimensions (W x H x D): Compact size of 43 mm × 90 mm × 87 mm, optimizing control panel space.
• Weight: Lightweight at approximately 0.2 kg (200g).
• Mounting: Standard DIN rail mounting for easy installation alongside your PLC.
• Software Compatibility: Programmed and configured using Mitsubishi Electric’s intuitive GX Developer or GX Works2 software.
• Operating Environment:
  • Operating Temperature: 0°C to 55°C (32°F to 131°F).
  • Storage Temperature: -25°C to 75°C ((-13°F to 167°F).
  • Relative Humidity: 5% to 95% RH (non-condensing).
• Certifications: Complies with major international standards including CE, UL/cUL, KC, ABS, DNV GL, KR, NK, EAC, and UKCA, ensuring global usability and safety.

Why Choose the Mitsubishi PLC FX2N-2DA from Multipurpose Automation Solution in Bangladesh?

At Multipurpose Automation Solution, located in Gazipur, Dhaka Division, Bangladesh, we are dedicated to supplying authentic and high-quality industrial automation components. Choosing the Mitsubishi PLC FX2N-2DA from us ensures:

• Competitive Pricing: Acquire this essential Mitsubishi analog output module for just 7500 BDT. We are committed to providing cost-effective solutions for your automation needs in the Bangladesh market.
• Genuine Mitsubishi Electric Product: Guarantee of an authentic Mitsubishi module, ensuring reliability, compatibility, and consistent performance with your existing FX series PLC systems.
• High-Resolution Analog Output: The 12-bit resolution allows for very fine and precise control of analog devices, crucial for applications requiring exact positioning, speed, or flow control.
• Versatile Output Ranges: Supports common voltage and current ranges (0-10V, 0-5V, 4-20mA), making it highly versatile for interfacing with a wide array of industrial actuators and drives.

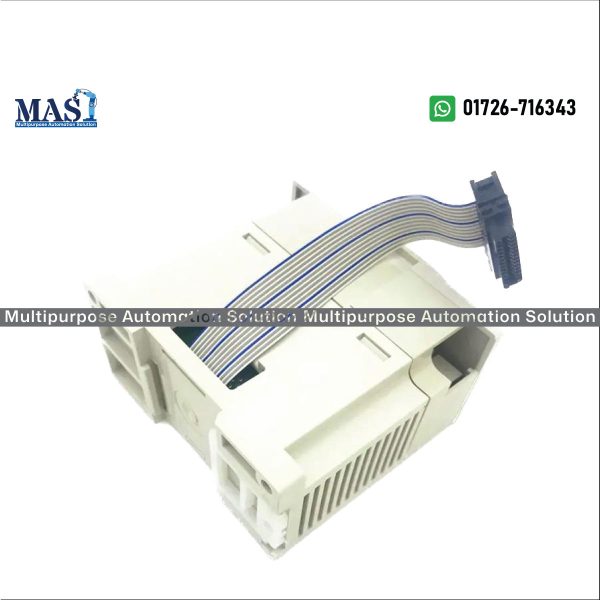

• Seamless Integration: Designed to easily connect to the right side of the FX2N and other compatible FX series PLC CPUs via an integrated extension cable, simplifying system expansion.
• Robust & Reliable: Built to Mitsubishi’s high industrial standards, ensuring long-term reliability and stable operation in challenging factory environments.
• Local Availability & Expert Support: Being based in Gazipur, we offer convenient access to this crucial PLC component, along with local technical understanding and support for Mitsubishi automation products, helping you optimize your control systems.

Applications:

The Mitsubishi PLC FX2N-2DA is widely used in various industrial automation applications across Bangladesh that require precise analog signal generation and control, including:

• Process Control: Controlling flow rates with modulating valves, regulating temperatures with heaters, and managing pressure with proportional actuators.
• Motion Control: Adjusting the speed of variable frequency drives (VFDs) for motors, controlling servo motor positioning, and precise motion sequencing.
• HVAC Systems: Modulating dampers, fans, and pumps in building automation and climate control.
• Industrial Furnaces & Ovens: Precise temperature regulation for heating processes.
• Robotics: Controlling the speed or position of robotic axes or end effectors.
• Test Benches: Generating precise analog signals for stimulating devices under test.

Price and Availability in Bangladesh:

The Mitsubishi PLC FX2N-2DA is available for 7500 BDT. To purchase or inquire further, please contact Multipurpose Automation Solution in Gazipur, Dhaka Division, Bangladesh. Our team is ready to assist you with your industrial automation and control system requirements.
