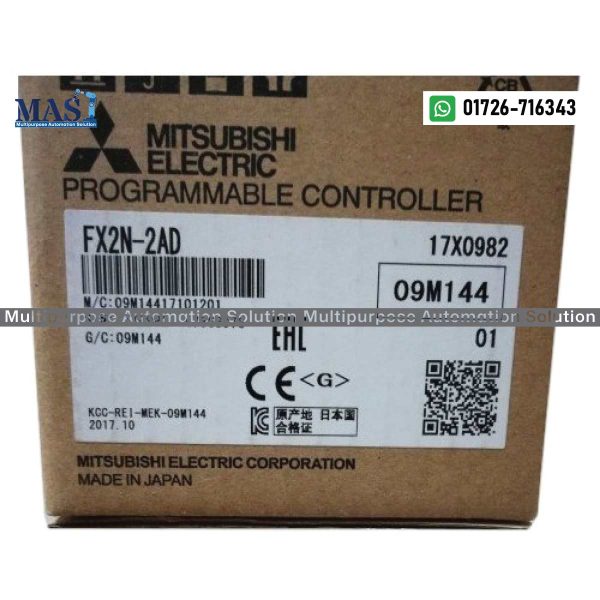

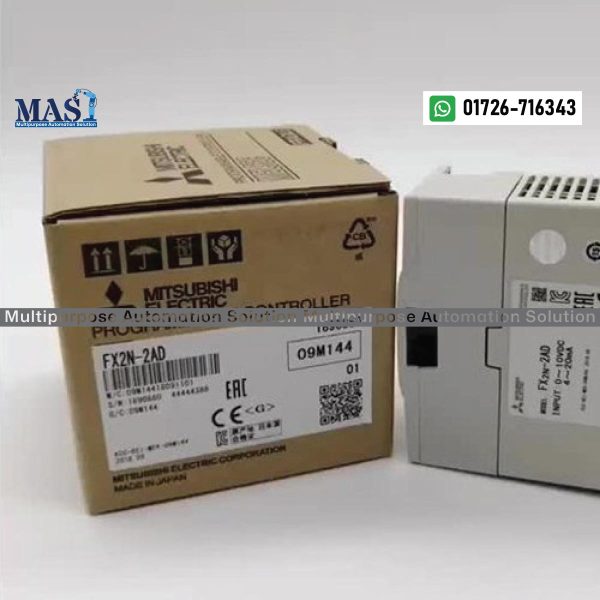

Mitsubishi PLC FX2N-2AD – 2-Channel Analog Input Expansion Module (12-Bit) – Buy in Bangladesh

Enhance the analog sensing capabilities of your Mitsubishi MELSEC-F series PLC systems with the Mitsubishi PLC FX2N-2AD analog input module. This special function block provides two high-resolution 12-bit analog input channels, allowing your PLC to accurately read and process real-world analog signals such as voltage (0-10V, 0-5V) or current (4-20mA) from various sensors and transducers. Designed for seamless integration with FX2N and other compatible FX series CPUs, the FX2N-2AD is a reliable and essential component for precise process control, monitoring, and data acquisition in industrial automation applications. Available at Multipurpose Automation Solution in Gazipur, Dhaka Division, Bangladesh.

Key Features & Specifications of the Mitsubishi PLC FX2N-2AD:

• Model: FX2N-2AD
• Manufacturer: Mitsubishi Electric
• Series: MELSEC-F Series (Designed for FX2N, compatible with FX0N, FX1N, FX2NC, FX3G, FX3GE, FX3GC, FX3U, FX3UC PLCs)
• Module Type: Analog Input Expansion Module (Special Function Block)
• Input Channels: 2 independent analog input channels.
• Supported Input Types:
  • Voltage Input: 0-10V DC, 0-5V DC.
  • Current Input: 4-20mA DC.
  • (Note: Both channels must be configured for either voltage or current input simultaneously. Mixed input types (e.g., one voltage, one current) are not supported on the same module.)
• Resolution: 12-bit (binary) analog-to-digital conversion, providing fine granularity for precise measurements:
  • 2.5mV for 0-10V DC range.
  • 1.25mV for 0-5V DC range.
  • 4µA for 4-20mA DC range.
• Accuracy: High overall accuracy, typically ±1% of full scale for both voltage (±0.1V) and current (±0.16mA) inputs.
• A/D Conversion Time: Fast conversion at 2.5ms per channel, ensuring quick response to changing analog signals.
• Occupied I/O Points: Occupies 8 I/O points from the connected PLC’s total I/O capacity.
• Power Supply: Powered directly from the PLC main unit’s internal 5V DC (20mA) and 24V DC (50mA) supplies, simplifying wiring.
• Isolation:
  • Photo-coupler isolation between the analog input circuit and the PLC system for noise immunity.
  • DC/DC converter isolation for the power supply unit.
  • (Channels are not individually isolated from each other.)
• Connection Type: Reliable screw-clamp terminals for secure and easy wiring.
• Dimensions (W x H x D): Compact size of 43 mm × 90 mm × 87 mm, optimizing cabinet space.
• Weight: Lightweight at approximately 0.2 kg (200g).
• Mounting: Standard DIN rail mounting for easy installation.
• Software Compatibility: Programmed and configured using Mitsubishi Electric’s intuitive GX Developer or GX Works2 software.
• Operating Environment:
  • Operating Temperature: 0°C to 55°C (32°F to 131°F).
  • Storage Temperature: -25°C to 75°C (-13°F to 167°F).
  • Relative Humidity: 5% to 95% RH (non-condensing).
• Certifications: Complies with major international standards including CE, UL/cUL, KC, ABS, DNV GL, KR, NK, EAC, and UKCA, ensuring global usability and safety.

Why Choose the Mitsubishi PLC FX2N-2AD from Multipurpose Automation Solution in Bangladesh?

At Multipurpose Automation Solution, located in Gazipur, Dhaka Division, Bangladesh, we are dedicated to supplying authentic and high-quality industrial automation components. Choosing the Mitsubishi PLC FX2N-2AD from us ensures:

• Competitive Pricing: Acquire this essential Mitsubishi analog input module for just 7500 BDT. We are committed to providing cost-effective solutions for your automation needs in the Bangladesh market.
• Genuine Mitsubishi Electric Product: Guarantee of an authentic Mitsubishi module, ensuring reliability, compatibility, and consistent performance with your existing FX series PLC systems.
• High-Resolution Analog Input: The 12-bit resolution allows for accurate sensing and monitoring of critical process variables, leading to improved control and data quality.
• Versatile Input Ranges: Supports common voltage and current ranges (0-10V, 0-5V, 4-20mA), making it compatible with a wide array of industrial sensors.
• Seamless Integration: Designed to easily connect to the right side of the FX2N and other compatible FX series PLC CPUs via an integrated extension cable, simplifying system expansion.
• Robust & Reliable: Built to Mitsubishi’s high industrial standards, ensuring long-term reliability and stable operation in challenging factory environments.
• Local Availability & Expert Support: Being based in Gazipur, we offer convenient access to this crucial PLC component, along with local technical understanding and support for Mitsubishi automation products, helping you optimize your control systems.

Applications:

The Mitsubishi PLC FX2N-2AD is widely used in various industrial automation applications across Bangladesh that require accurate analog signal processing, including:

• Process Control: Monitoring and controlling temperature, pressure, flow, and level in various industrial processes (e.g., chemical plants, food processing).
• Machine Automation: Reading sensor feedback from positioning systems, force sensors, and other analog transducers in manufacturing machinery.
• Building Automation: Integrating analog sensor data for HVAC control, environmental monitoring, and energy management systems.
• Data Acquisition: Collecting analog process data for trending, analysis, and reporting.
• Quality Control: Measuring analog parameters for quality assurance and defect detection.
• Test Benches: Acquiring data from analog sensors in product testing and development environments.

Price and Availability in Bangladesh:

The Mitsubishi PLC FX2N-2AD is available for 7500 BDT. To purchase or inquire further, please contact Multipurpose Automation Solution in Gazipur, Dhaka Division, Bangladesh. Our team is ready to assist you with your industrial automation and control system requirements.
