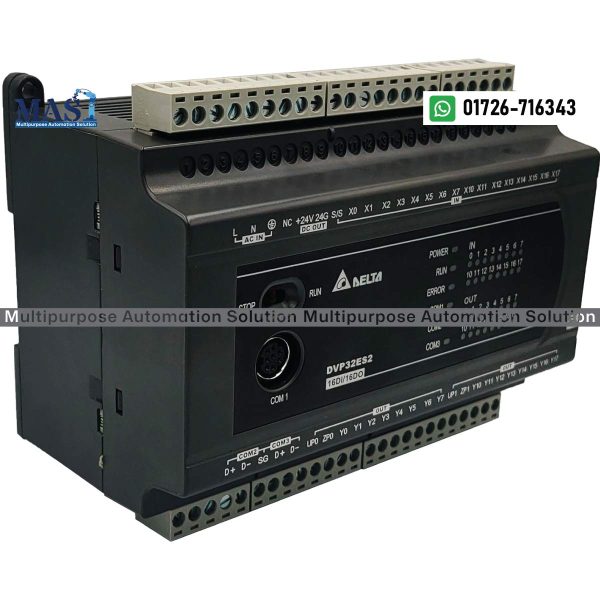

Delta PLC DVP32ES200R – 32-Point (16DI/16DO Relay) Standard CPU for DVP-ES2 Series – Buy in Bangladesh

Elevate your industrial control systems with the powerful and highly capable Delta PLC DVP32ES200R, a flagship CPU module from Delta’s versatile DVP-ES2 series. This standard-type PLC offers a substantial 16 digital inputs and 16 robust relay outputs, providing a comprehensive and reliable solution for complex and large-scale automation applications. With its high-speed 32-bit CPU, extensive program and data memory, and multiple independent communication ports, the DVP32ES200R is engineered for superior efficiency, flexibility, and robust connectivity in demanding industrial environments. Available with expert support at Multipurpose Automation Solution in Gazipur, Dhaka Division, Bangladesh.

Key Features & Specifications of the Delta PLC DVP32ES200R:

• Model: DVP32ES200R
• Manufacturer: Delta Electronics
• Series: DVP-ES2 Series (2nd Generation Standard PLC for Network Applications)
• Module Type: Programmable Logic Controller (PLC) CPU Main Processing Unit (MPU)
• I/O Configuration:
  • Digital Inputs: 16 points (24VDC, Sink/Source selectable, includes high-speed inputs).
  • Digital Outputs: 16 points (Relay type, ensuring robust switching for various loads).
  • Total I/O Points: 32 built-in I/O points.
• Power Supply Voltage: 100 ~ 240VAC (-15% ~ +10%), 50/60Hz ±5%, making it suitable for global industrial power standards.
• Max. Expandable I/O: Highly expandable, supporting up to 256 input points + 16 output points, or 256 output points + 16 input points with various DVP-S series expansion modules.
• Program Capacity: 16k steps, providing extensive space for intricate control logic and complex programs.
• Data Registers: 10k words, for substantial data storage and manipulation.
• Basic Instruction Execution Speed: Ultra-fast 0.35 μs/step, ensuring rapid response times and high throughput for critical operations.
• High-Speed Counters:
  • Built-in 8 high-speed input points.
  • Supports 2 points at up to 100 kHz for high-frequency pulse inputs.
  • Supports 6 points at up to 10 kHz for general high-speed counting.
  • Versatile counting modes including Up/Down, Up/Down Direction, and A/B phase.
• High-Speed Pulse Outputs: While this model features relay outputs (not suitable for continuous high-frequency pulse trains for precise motion control), the ES2 series CPU itself supports advanced motion control instructions, which can be utilized with external pulse generators or transistor output expansion modules for multi-axis applications.
• Communication Ports:
  • Built-in 1 x RS-232 port for programming and point-to-point communication.
  • Built-in 2 x RS-485 ports, all capable of operating independently (Master/Slave).
  • Supports Modbus ASCII/RTU protocol, facilitating seamless communication with HMIs, VFDs, temperature controllers, and other Modbus devices.
• Max. Power Consumption: Approximately 30VA.
• Power Protection: Includes a 2A/250VAC fuse for robust protection.
• Built-in Features:
  • High-performance 32-bit CPU for superior processing capabilities.
  • No battery required for program and latched data retention; utilizes high-speed flash memories for reliable data integrity.
  • Offers 4 levels of password protection to secure your intellectual property and source programs.
  • Includes handy instructions specifically designed for controlling Delta’s AC motor drives (forward, reverse, RUN, STOP).
  • Supports connection with various DVP-S series expansion modules (digital, analog, temperature, communication, etc.).
  • Plug-in terminals for ease of wiring and maintenance.
• Operating Temperature: 0°C to 55°C (32°F to 131°F).
• Storage Temperature: -25°C to 70°C (-13°F to 158°F).
• Operating/Storage Humidity: 5%~95% RH (non-condensing), Pollution degree 2.
• Mounting: Standard DIN-rail or chassis mounting for flexible installation.
• Dimensions (H x D): Approx. 145 mm (H) x 78 mm (D). (Note: This is a larger base unit compared to slimline series).
• Weight: Approximately 0.7 kg (700 g).
• Software: Programmed using Delta’s intuitive ISPSoft or WPLSoft programming software.
• Programming Languages: Supports Ladder Diagram (LD), Instruction List (IL), and Sequential Function Chart (SFC).
• Certifications: CE, cULus.

Why Choose the Delta PLC DVP32ES200R from Multipurpose Automation Solution in Bangladesh?

At Multipurpose Automation Solution, located in Gazipur, Dhaka Division, Bangladesh, we are dedicated to providing genuine and high-quality industrial automation products. Choosing the Delta PLC DVP32ES200R from us ensures:

• Best Price in Bangladesh: Contact us directly to get the BEST PRICE for the Delta PLC DVP32ES200R in the Bangladesh market. We are committed to offering competitive pricing for this powerful standard PLC.
• Authentic Delta Electronics Product: Guarantee of original Delta quality, ensuring reliable performance, robust functionality, and seamless integration into your automation projects.
• High I/O Density & Performance: With 32 built-in I/O points and high-speed processing, it’s an excellent choice for complex machines and processes requiring extensive digital control.
• Extensive Communication Capabilities: Featuring three independent COM ports (RS-232, 2xRS-485), it provides excellent networking capabilities for distributed control, HMI connectivity, and system integration.
• Reliable Relay Outputs: The 16 relay outputs provide sturdy and dependable switching for a wide array of industrial loads, offering durability and versatility.
• Highly Expandable & Adaptable: Easily expandable with a comprehensive range of DVP-S series expansion modules, allowing you to tailor the PLC system precisely to your evolving and future application needs.
• Local Availability & Expert Support: Being based in Gazipur, we offer convenient access to this PLC, along with local technical understanding and support for Delta DVP series products, assisting you in optimizing your automation solution and ensuring smooth operation.

Applications:

The Delta PLC DVP32ES200R is an excellent choice for a broad spectrum of industrial automation applications in Bangladesh that require extensive digital I/O, robust communication, and expanded control capabilities, including:

• HVAC Systems: Sophisticated control for large-scale climate management, including comprehensive fan, pump, and damper control.
• Molding Injection Machines: Control of machine sequencing, heating elements, and hydraulic systems.
• Large Storage Management Systems: Automation of warehousing, inventory control, and retrieval systems.
• Packaging Machinery: Advanced control of multi-stage packaging, conveying, sealing, and labeling processes.
• Precise Textile Machinery: Coordinated control of various textile processes.
• Logistic Systems: Automation of sorting, conveying, and material flow in logistics centers.
• Water Treatment Plants: Comprehensive control of pump stations, valve sequencing, and basic process monitoring.
• General Industrial Automation: Versatile control for complex manufacturing lines, assembly processes, and distributed control systems across various industries.

Price and Availability in Bangladesh:

For the BEST PRICE and current availability of the Delta PLC DVP32ES200R, please CALL US at Multipurpose Automation Solution in Gazipur, Dhaka Division, Bangladesh. Our team is ready to provide you with a competitive quote and discuss the suitability of this PLC for your specific automation project.
