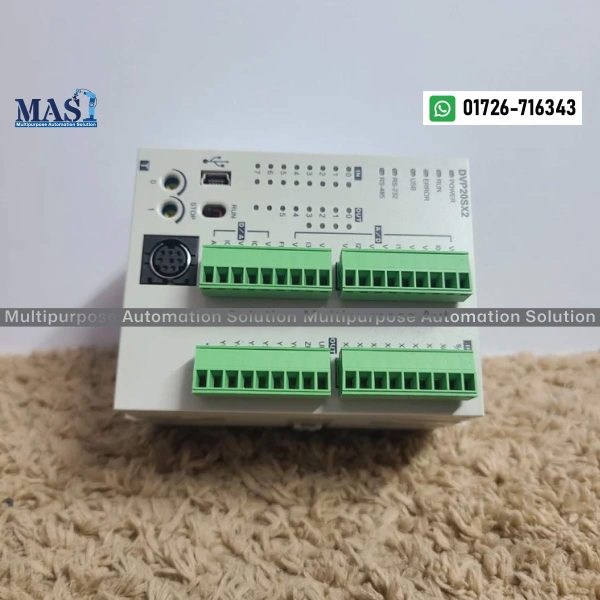

Delta PLC DVP20SX211T – 20-Point (8DI/6DO Transistor, 4AI/2AO) Slim Type CPU for DVP-SX2 Series – Buy in Bangladesh

Achieve highly integrated and precise control with the Delta PLC DVP20SX211T, a versatile CPU module from Delta’s advanced DVP-SX2 series. This powerful slimline PLC combines 8 digital inputs, 6 high-speed NPN transistor outputs, 4 analog inputs, and 2 analog outputs, making it an all-in-one solution for complex automation challenges. With its 32-bit CPU, extensive program and data memory, and multiple communication ports, the DVP20SX211T excels in applications requiring high-speed motion control, accurate analog sensing, and precise analog output, all within a compact footprint. Available at Multipurpose Automation Solution in Gazipur, Dhaka Division, Bangladesh.

Key Features & Specifications of the Delta PLC DVP20SX211T:

• Model: DVP20SX211T
• Manufacturer: Delta Electronics
• Series: DVP-SX2 Series (2nd Generation Slim Type Analog I/O PLC)
• Module Type: Programmable Logic Controller (PLC) CPU Main Processing Unit (MPU) with Integrated Analog I/O
• I/O Configuration:
  • Digital Inputs: 8 points (24VDC, Sink/Source selectable).
  • Digital Outputs: 6 points (High-speed Transistor NPN type).
  • Analog Inputs: 4 channels (12-bit resolution, configurable for Voltage: -10V~+10V, 0~10V; Current: -20mA~+20mA, 4~20mA).
  • Analog Outputs: 2 channels (12-bit resolution, configurable for Voltage: -10V~+10V; Current: 0~20mA, 4~20mA).
  • Total I/O Points: 20 built-in I/O (8 DI + 6 DO + 4 AI + 2 AO).
• Max. Expandable I/O: Expandable up to 494 I/O points by connecting DVP-S series expansion modules (digital I/O, analog, temperature, etc.).
• Program Capacity: 16k steps, providing ample space for intricate control logic.
• Data Registers: 10k words, for extensive data storage and manipulation.
• Basic Instruction Execution Speed: Ultra-fast 0.35 μs/step, ensuring rapid response and high throughput.
• High-Speed Counters:
  • Built-in 8 high-speed input points.
  • Supports 2 points at 100 kHz (X0, X2), 2 points at 25 kHz (X1, X3), and 4 points at 10 kHz (X4-X7) pulse input.
  • Includes 1 set of A/B phase 50 kHz counter.
• High-Speed Pulse Outputs:
  • Supports 4 points of high-speed pulse output.
  • 2 points (Y0, Y2) at up to 100 kHz independent pulse output.
  • 2 points (Y1, Y3) at up to 10 kHz independent pulse output.
  • Ideal for precise control of stepper motors, servo drives, and other pulse-driven devices.
  • Supports 2-axis linear and arc interpolation, along with S-curve acceleration/deceleration for advanced motion control.
• Communication Ports:
  • 1 x Built-in RS-232 port.
  • 1 x Built-in RS-485 port.
  • 1 x Built-in Mini USB port.
  • All ports compatible with Modbus ASCII/RTU protocol (master/slave functionality).
• Power Supply: 24V DC (-15% to +20%).
• Max. Power Consumption: 4W.
• Built-in Features:
  • High-performance 32-bit CPU.
  • No battery required for program and latched data retention; utilizes high-speed flash memories.
  • Supports DVP-S series left-side (high-speed) and right-side expansion modules.
  • Plug-in terminals for ease of wiring and maintenance.
  • Integrated PID control function for precise analog process control.
• Analog Accuracy: Typically ±0.5% of full scale at 25°C, ±1% over full operating temperature range.
• Operating Temperature: 0°C to 55°C (32°F to 131°F).
• Storage Temperature: -25°C to 70°C (-13°F to 158°F).
• Operating/Storage Humidity: 5%~95% RH (non-condensing), Pollution degree 2.
• Mounting: Standard DIN-rail or chassis mounting.
• Dimensions (W x H x D): Approx. 37.4 mm x 90 mm x 60 mm (Compact slimline design).
• Weight: Approx. 0.224 kg (224 g).
• Software: Programmed using Delta’s user-friendly ISPSoft or older WPLSoft programming software.
• Programming Languages: Supports Instruction List (IL), Ladder Diagram (LD), and Sequential Function Chart (SFC).
• Certifications: CE, cULus.

Why Choose the Delta PLC DVP20SX211T from Multipurpose Automation Solution in Bangladesh?

At Multipurpose Automation Solution, located in Gazipur, Dhaka Division, Bangladesh, we are dedicated to providing genuine and high-quality industrial automation products. Choosing the Delta PLC DVP20SX211T from us ensures:

• Best Price in Bangladesh: Contact us directly to get the BEST PRICE for the Delta PLC DVP20SX211T in the Bangladesh market. We are committed to offering competitive pricing for this advanced slim type PLC.
• Authentic Delta Electronics Product: Guarantee of original Delta quality, ensuring reliable performance, robust functionality, and seamless integration into your automation projects.
• Integrated Analog & Digital Control: Combines digital I/O with high-resolution analog inputs and outputs in a single unit, simplifying system design and wiring, making it ideal for processes requiring both discrete and continuous control.
• Superior Motion Control: The transistor outputs and advanced motion control instructions (including interpolation) make it perfect for precise control of stepper/servo motors, enabling complex positioning and synchronization.
• High-Speed Operations: Benefit from ultra-fast instruction execution and high-speed pulse I/O, critical for applications requiring rapid response and accurate timing.
• Versatile Connectivity: Equipped with RS-232, RS-485, and USB ports, providing excellent connectivity options for HMIs, VFDs, servo drives, sensors, and other smart devices.
• Expandable & Flexible: Easily expandable with a wide range of DVP-S series extension modules, allowing you to tailor the PLC system to your evolving application needs.
• Local Availability & Expert Support: Being based in Gazipur, we offer convenient access to this PLC, along with local technical understanding and support for Delta DVP series products, assisting you in optimizing your automation solution.

Applications:

The Delta PLC DVP20SX211T is ideally suited for a wide range of industrial automation applications in Bangladesh that require integrated digital and analog control, along with high-speed motion capabilities, including:

• PID Temperature/Humidity Control: Precise regulation of environmental conditions in ovens, chambers, and HVAC systems.
• 2-Axis Motion Control: Accurate positioning and synchronization for packaging, cutting, and assembly machines.
• Process Control: Control of flow, pressure, and level in chemical, food & beverage, and pharmaceutical industries.
• Machine Tools: Small CNC machines, grinding machines, and automated welding equipment.
• Plastic & Rubber Machinery: Injection molding machines, extruders with temperature and pressure control.
• Water Treatment: Advanced control of pumps, valves, and chemical dosing based on analog sensor feedback.
• Building Automation: Integrated control of smart building systems with analog sensors and actuators.

Price and Availability in Bangladesh:

For the BEST PRICE and current availability of the Delta PLC DVP20SX211T, please CALL US at Multipurpose Automation Solution in Gazipur, Dhaka Division, Bangladesh. Our team is ready to provide you with a competitive quote and discuss the suitability of this PLC for your specific automation project.
