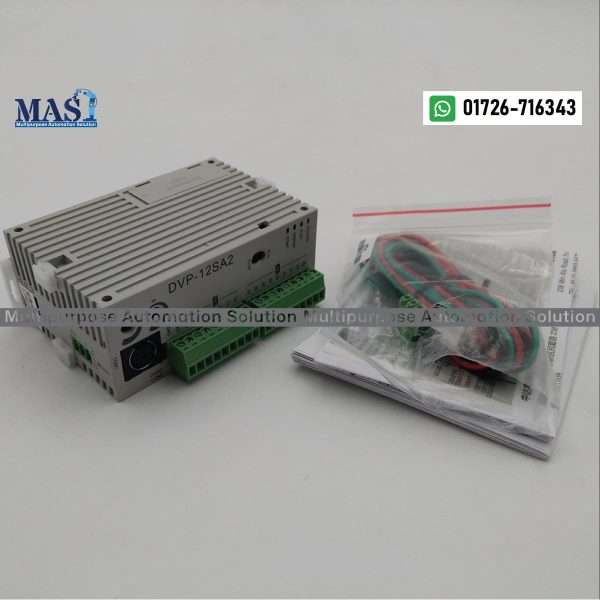

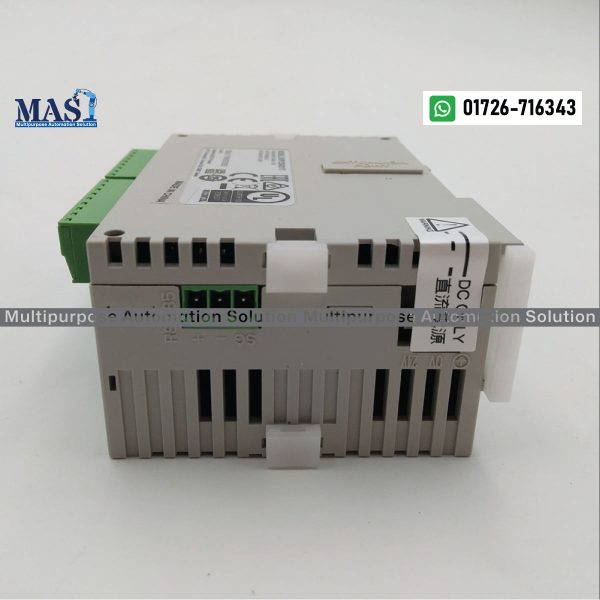

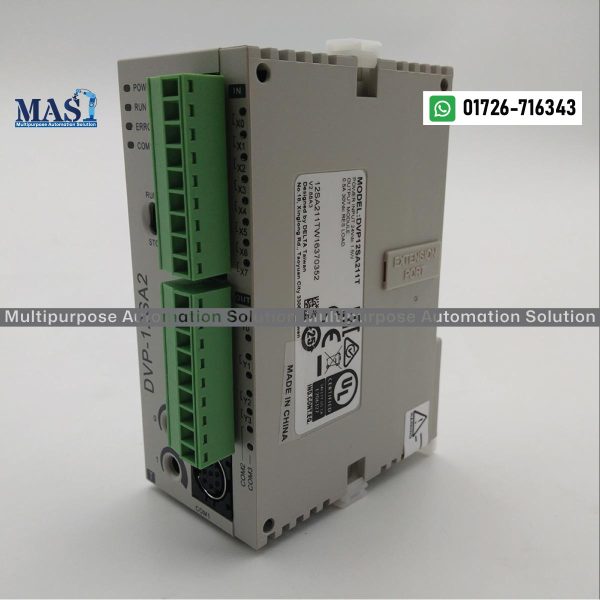

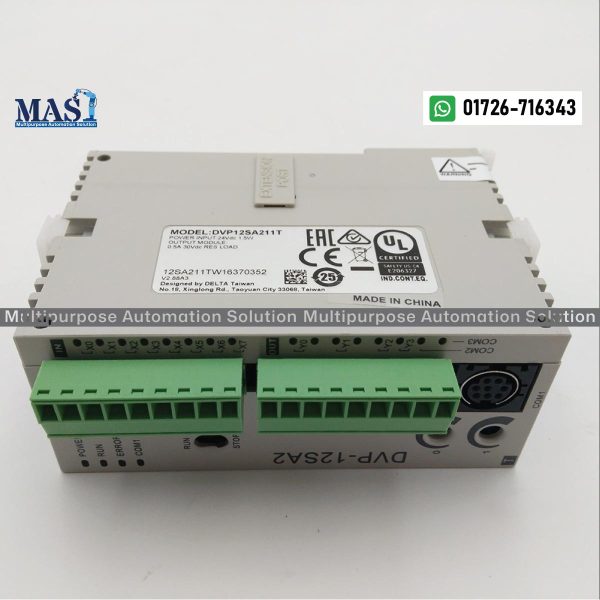

Delta PLC DVP12SA211T – 12-Point (8DI/4DO Transistor) Slim Type CPU for DVP-SA2 Series – Buy in Bangladesh

Unlock advanced motion control and high-speed automation with the Delta PLC DVP12SA211T, a powerful CPU module from Delta’s cutting-edge DVP-SA2 series. This compact PLC features 8 digital inputs and 4 high-speed NPN transistor outputs, making it the ideal choice for applications requiring precise pulse control for stepper/servo motors, high-speed counting, and rapid response. Built with a 32-bit CPU, ample memory, and versatile communication ports (RS-232 and RS-485), the DVP12SA211T provides superior performance, expandability, and reliability in a slimline design. Perfect for intricate machine control and integrated automation systems. Available at Multipurpose Automation Solution in Gazipur, Dhaka Division, Bangladesh.

Key Features & Specifications of the Delta PLC DVP12SA211T:

• Model: DVP12SA211T
• Manufacturer: Delta Electronics
• Series: DVP-SA2 Series (2nd Generation Slim Type PLC)
• Module Type: Programmable Logic Controller (PLC) CPU Main Processing Unit (MPU)
• I/O Configuration:
  • Digital Inputs: 8 points (24VDC, Sink/Source selectable).
  • Digital Outputs: 4 points (High-speed Transistor NPN type).
  • Total I/O Points: 12 built-in I/O points.
• Max. Expandable I/O: Expandable up to 492 I/O points by connecting DVP-S series expansion modules (digital I/O, analog, temperature, etc.).
• Program Capacity: 16k steps.
• Data Registers: 10k words.
• Basic Instruction Execution Speed: As fast as 0.35 μs/step, enabling ultra-high-speed processing for demanding applications.
• High-Speed Counters:
  • Built-in 8 sets of high-speed counter functions.
  • Supports up to 2 points of 100 kHz (e.g., X0, X1) and 6 points of 10 kHz (e.g., X2-X7) pulse input.
  • 1 set of A/B phase 50 kHz counter.
• High-Speed Pulse Outputs:
  • Supports 4 points of high-speed pulse output.
  • 2 points (Y0, Y2) at up to 100 kHz independent pulse output.
  • 2 points (Y1, Y3) at up to 10 kHz independent pulse output.
  • Ideal for controlling stepper motors, servo drives, and other pulse-driven devices.
  • Supports 2-axis linear and arc interpolation, along with S-curve acceleration/deceleration for advanced motion control.
• Communication Ports:
  • 1 x Built-in RS-232 port.
  • 2 x Built-in RS-485 ports (compatible with Modbus ASCII/RTU protocol, can operate as master or slave).
• Power Supply: 24V DC (-15% to +20%).
• Power Consumption: 1.5W max, ensuring excellent energy efficiency.
• Power Protection: Features counter-connection protection on the polarity of DC input power.
• Built-in Features:
  • High-performance 32-bit CPU for rapid program execution.
  • Supports DVP-S series left-side (high-speed) and right-side expansion modules.
  • Plug-in terminals for ease of wiring and maintenance.
  • No battery required for program and latched data retention; uses high-speed flash memories.
  • Built-in Real-Time Clock (RTC) function (retains time for up to 15 days after power off).
• Operating Temperature: 0°C to 55°C (32°F to 131°F).
• Storage Temperature: -25°C to 70°C (-13°F to 158°F).
• Operating/Storage Humidity: 5%~95% RH (non-condensing), Pollution degree 2.
• Mounting: Standard DIN-rail or chassis mounting.
• Dimensions (W x H x D): Approx. 37.4 mm x 90 mm x 60 mm (Compact slimline design).
• Weight: Approx. 0.131 kg (131 g).
• Software: Programmed using Delta’s user-friendly ISPSoft or older WPLSoft programming software.
• Programming Languages: Supports Instruction List (IL), Ladder Diagram (LD), and Sequential Function Chart (SFC).
• Certifications: CE, cULus.

Why Choose the Delta PLC DVP12SA211T from Multipurpose Automation Solution in Bangladesh?

At Multipurpose Automation Solution, located in Gazipur, Dhaka Division, Bangladesh, we are dedicated to providing genuine and high-quality industrial automation products. Choosing the Delta PLC DVP12SA211T from us ensures:

• Best Price in Bangladesh: Contact us directly to get the BEST PRICE for the Delta PLC DVP12SA211T in the Bangladesh market. We are committed to offering competitive pricing for this high-performance slim type PLC.
• Authentic Delta Electronics Product: Guarantee of original Delta quality, ensuring reliable performance, robust functionality, and seamless integration into your automation projects.
• Superior Motion Control: The transistor outputs and advanced motion control features make it perfect for precise control of stepper/servo motors, enabling complex positioning and interpolation.
• High-Speed Operations: Benefit from ultra-fast instruction execution and high-speed pulse I/O, critical for applications requiring rapid response and accurate timing.
• Versatile Connectivity: Equipped with multiple serial communication ports (RS-232, RS-485), providing excellent connectivity options for HMIs, VFDs, servo drives, and other smart devices.
• Expandable & Flexible: Easily expandable with a wide range of DVP-S series extension modules, allowing you to tailor the PLC system to your evolving application needs.
• Reliable & Maintenance-Free: Features like no-battery design for program retention and robust construction ensure long-term, reliable operation with minimal maintenance.
• Local Availability & Expert Support: Being based in Gazipur, we offer convenient access to this PLC, along with local technical understanding and support for Delta DVP series products, assisting you in optimizing your automation solution.

Applications:

The Delta PLC DVP12SA211T is ideally suited for a wide range of industrial automation applications in Bangladesh that require high-speed digital I/O and precise motion control, including:

• Packaging Machinery: High-speed packaging, labeling, and filling machines.
• Textile Machinery: Precise control of cutting, weaving, and sewing processes.
• Printing Machinery: Accurate registration and material handling.
• Automated Assembly & Inspection: Robotic cells, pick-and-place systems, and quality inspection lines.
• Material Handling: Conveyor systems with indexing, precise positioning, and synchronization.
• Semiconductor Manufacturing: Equipment requiring highly accurate motion and process control.
• General Motion Control: Any application needing precise control of stepper or servo motors for positioning, speed, or synchronization.

Price and Availability in Bangladesh:

For the BEST PRICE and current availability of the Delta PLC DVP12SA211T, please CALL US at Multipurpose Automation Solution in Gazipur, Dhaka Division, Bangladesh. Our team is ready to provide you with a competitive quote and discuss the suitability of this PLC for your specific automation project.
