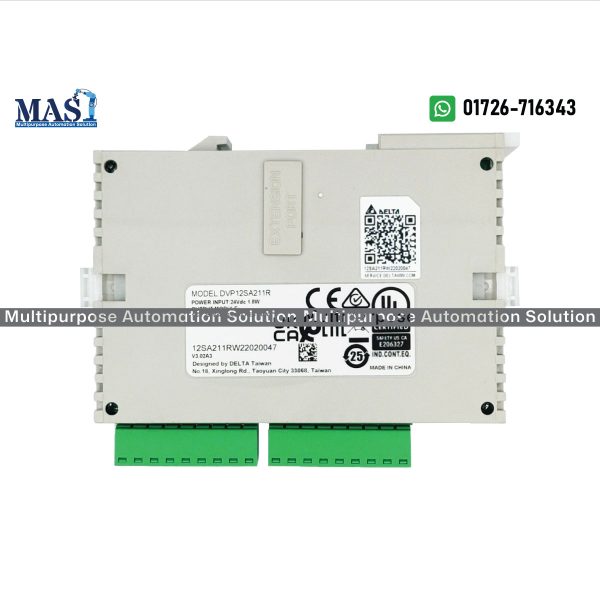

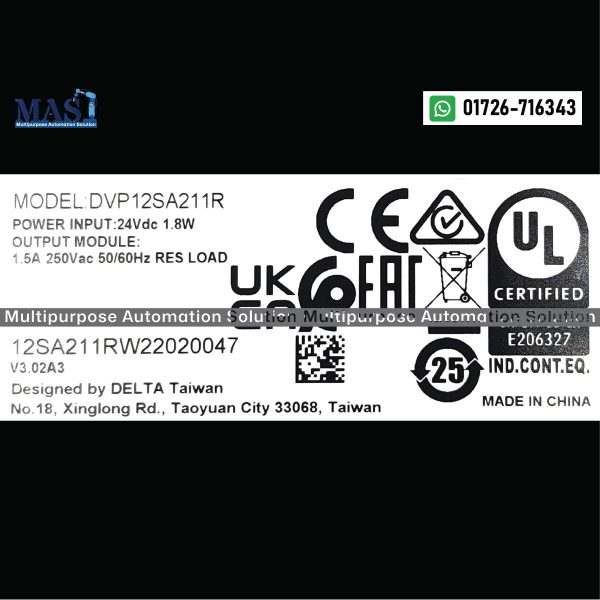

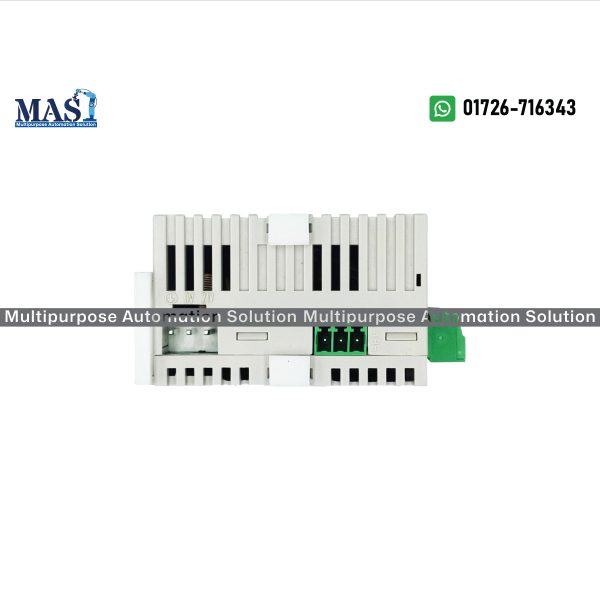

Delta PLC DVP12SA211R – 12-Point (8DI/4DO Relay) Slim Type CPU for DVP-SA2 Series – Buy in Bangladesh

Experience high-performance and versatile control with the Delta PLC DVP12SA211R, a core CPU module from Delta’s advanced DVP-SA2 series. This compact and powerful PLC integrates 8 digital inputs and 4 relay outputs, making it ideal for a wide range of small to medium-scale industrial automation applications. Featuring a 32-bit CPU for high-speed processing, substantial program and data memory, and dual communication ports (RS-232 and RS-485), the DVP12SA211R offers exceptional functionality and expandability. Its slimline design, robust features, and maintenance-free operation make it a reliable choice for efficient machine control and system integration. Available at Multipurpose Automation Solution in Gazipur, Dhaka Division, Bangladesh.

Key Features & Specifications of the Delta PLC DVP12SA211R:

• Model: DVP12SA211R
• Manufacturer: Delta Electronics
• Series: DVP-SA2 Series (2nd Generation Slim Type PLC)
• Module Type: Programmable Logic Controller (PLC) CPU Main Processing Unit (MPU)
• I/O Configuration:
  • Digital Inputs: 8 points (24VDC, Sink/Source selectable).
  • Digital Outputs: 4 points (Relay type, ensuring robust switching for various loads).
  • Total I/O Points: 12 built-in I/O points.
• Max. Expandable I/O: Expandable up to 492 I/O points by connecting DVP-S series expansion modules (digital I/O, analog, temperature, etc.).
• Program Capacity: 16k steps.
• Data Registers: 10k words.
• Basic Instruction Execution Speed: As fast as 0.35 μs/step, enabling high-speed processing for demanding applications.
• High-Speed Counters:
  • Built-in high-speed counter functions.
  • Supports up to 2 points of 100 kHz and 6 points of 10 kHz pulse input.
  • 1 set of A/B phase 50 kHz counter.
• High-Speed Pulse Outputs: The DVP-SA2 series platform supports high-speed pulse output functions (up to 2 x 100 kHz and 2 x 10 kHz independent pulse outputs on transistor models), allowing for advanced motion control capabilities (e.g., 2-axis linear and arc interpolation). While this model has relay outputs, the CPU supports the logic for such functions if paired with appropriate external drivers or transistor output expansion modules.
• Communication Ports:
  • 1 x Built-in RS-232 port.
  • 2 x Built-in RS-485 ports (compatible with Modbus ASCII/RTU protocol, can operate as master or slave).
• Power Supply: 24V DC (-15% to +20%).
• Power Consumption: 1.8W max, ensuring energy efficiency.
• Power Protection: Features counter-connection protection on the polarity of DC input power.
• Built-in Features:
  • High-performance 32-bit CPU.
  • Supports DVP-S series left-side (high-speed) and right-side expansion modules.
  • Plug-in terminals for ease of wiring and maintenance.
  • No battery required for program and latched data retention; uses high-speed flash memories.
  • Built-in Real-Time Clock (RTC) function (retains time for up to 15 days after power off).
• Operating Temperature: 0°C to 55°C (32°F to 131°F).
• Storage Temperature: -25°C to 70°C (-13°F to 158°F).
• Operating/Storage Humidity: 5%~95% RH (non-condensing), Pollution degree 2.
• Mounting: Standard DIN-rail or chassis mounting.
• Dimensions (W x H x D): Approx. 37.4 mm x 90 mm x 60 mm (Compact slimline design).
• Weight: Approx. 0.14 kg (140 g).
• Software: Programmed using Delta’s user-friendly ISPSoft or older WPLSoft programming software.
• Programming Languages: Supports Instruction List (IL), Ladder Diagram (LD), and Sequential Function Chart (SFC).
• Certifications: CE, cULus.

Why Choose the Delta PLC DVP12SA211R from Multipurpose Automation Solution in Bangladesh?

At Multipurpose Automation Solution, located in Gazipur, Dhaka Division, Bangladesh, we are dedicated to providing genuine and high-quality industrial automation products. Choosing the Delta PLC DVP12SA211R from us ensures:

• Best Price in Bangladesh: Contact us directly to get the BEST PRICE for the Delta PLC DVP12SA211R in the Bangladesh market. We are committed to offering competitive pricing for this high-performance slim type PLC.
• Authentic Delta Electronics Product: Guarantee of original Delta quality, ensuring reliable performance, robust functionality, and seamless integration into your automation projects.
• Compact & Powerful Control: Offers a powerful 32-bit CPU and essential I/O in a slim form factor, ideal for space-constrained control panels while delivering high execution speeds.
• Versatile Connectivity: Equipped with multiple serial communication ports (RS-232, RS-485), providing excellent connectivity options for HMIs, VFDs, and other smart devices.
• Expandable & Flexible: Easily expandable with a wide range of DVP-S series extension modules, allowing you to tailor the PLC system to your evolving application needs.
• Reliable & Maintenance-Free: Features like no-battery design for program retention and robust construction ensure long-term, reliable operation with minimal maintenance.
• Local Availability & Expert Support: Being based in Gazipur, we offer convenient access to this PLC, along with local technical understanding and support for Delta DVP series products, assisting you in optimizing your automation solution.

Applications:

The Delta PLC DVP12SA211R is ideally suited for a wide range of industrial automation applications in Bangladesh that require a compact, high-performance PLC with digital I/O and strong communication capabilities, including:

• Small to Medium-Sized Machines: Packaging machines, textile machinery, printing machines, and assembly equipment.
• Building Automation: HVAC control, lighting systems, and access control.
• Material Handling: Conveyor systems, sorting machines, and automated storage.
• Pump & Fan Control: Basic sequential control for pumps, fans, and blowers.
• Process Automation: Simple batching, mixing, and dispensing systems.
• General Industrial Automation: Wherever cost-effective and reliable digital control with expansion capability is needed.

Price and Availability in Bangladesh:

For the BEST PRICE and current availability of the Delta PLC DVP12SA211R, please CALL US at Multipurpose Automation Solution in Gazipur, Dhaka Division, Bangladesh. Our team is ready to provide you with a competitive quote and discuss the suitability of this PLC for your specific automation project.
