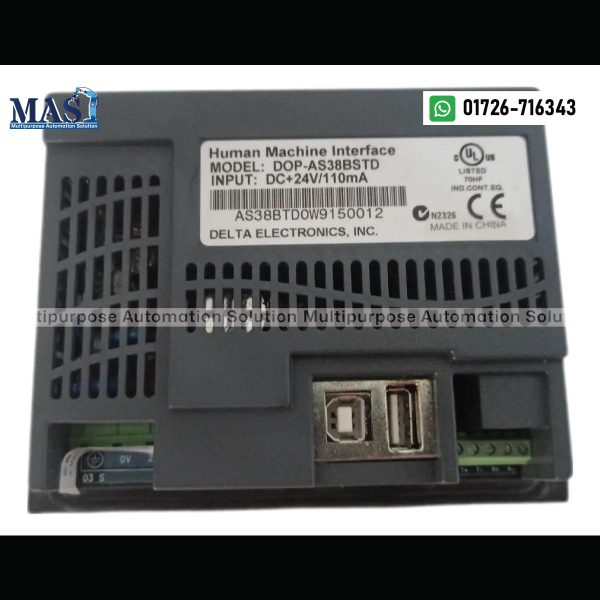

Delta HMI DOP-AS38BSTD – 3.8-inch STN LCD Touch Screen HMI with Function Keys – Buy in Bangladesh

For compact and straightforward industrial automation tasks, choose the Delta HMI DOP-AS38BSTD. This 3.8-inch Human Machine Interface features an 8-shades of blue STN LCD display, a responsive touch screen, and dedicated function keys, offering a reliable and space-saving solution for basic control and monitoring. Available at Multipurpose Automation Solution in Gazipur, Dhaka Division, Bangladesh.

Key Features & Specifications of the Delta HMI DOP-AS38BSTD:

• Model: DOP-AS38BSTD (AS Series Basic HMI)
• Display Size: 3.8-inch STN LCD
• Resolution (Pixels): 320 x 240 (QVGA)
• Colors: 8 shades of blue
• CPU: ARM9 32-bit CPU
• Flash Memory: 1 MB
• SRAM (RAM): 128 KB
• Touchscreen: 4-wire resistive type
• Function Keys: 4 user-defined function keys + 1 system key
• Communication Ports:
  • COM Ports: 3 sets (supporting RS-232, RS-422, RS-485 protocols for different communication needs)
  • USB Slave: 1 (USB 1.1, for high-speed program and data download)
  • USB Host: 1 (for direct connection to USB disk and printer)
  • Note: This model does NOT include a built-in Ethernet port.
• Real-Time Clock (RTC): Built-in (with 3V lithium battery CR2032, battery life approx. 5 years)
• Buzzer: 85dB
• Power Supply: DC 24V (-10% to +15%)
• Power Consumption: (Typically low for this class, exact figure often around 5W or less, check datasheet for precise value)
• Front Panel Protection: IP65 / NEMA4 (Touch screens comply with standards)
• Cooling Method: Natural Air Circulation (Fan-less)
• Operation Temperature: 0°C to 50°C (32°F to 122°F)
• Storage Temperature: -20°C to 60°C (-4°F to 140°F)
• Ambient Humidity: 10% to 90% RH (0~40°C), 10% to 55% RH (41~50°C), Pollution Degree 2
• Software: Programmed with Delta DOPSoft software (compatible with Windows XP/Vista/7/8/10 32/64bit).
• Advanced Features:
  • Supports up to 8 different languages for multilingual screen editing.
  • Efficient program and data download via USB.
  • Data backup/restore using USB Host.
  • Designed for reliability in industrial environments.
• Dimensions (W x H x D): 140.8 x 104.8 x 44.8 mm
• Panel Cutout (W x H): 118.8 x 92.8 mm
• Weight: Approximately 310 g (0.31 kg)

Note: The Delta DOP-AS series is an older generation of HMIs and may be considered discontinued or mature by Delta. While still functional and potentially available from stock or surplus, for new designs, Delta typically recommends newer series such as the DOP-100 series (e.g., DOP-103WQ for a small color HMI) which offer enhanced features, faster processors, and broader connectivity options. Please inquire about the availability and suitability for your specific project.

Why Choose the Delta HMI DOP-AS38BSTD from Multipurpose Automation Solution in Bangladesh?

At Multipurpose Automation Solution, located in Gazipur, Dhaka Division, Bangladesh, we provide genuine and high-quality industrial automation products. Choosing the Delta HMI DOP-AS38BSTD from us ensures:

• Best Price in Bangladesh: Contact us directly to get the BEST PRICE for the Delta HMI DOP-AS38BSTD in the Bangladesh market. We are committed to offering competitive pricing.
• Compact & Cost-Effective: Its small size makes it ideal for applications with limited panel space, offering a budget-friendly solution for basic HMI needs.
• Reliable Performance: Equipped with a 32-bit CPU and robust design, it provides stable operation for control tasks.
• Versatile Serial Communication: Three COM ports allow flexible connectivity to various PLCs and devices via RS-232, RS-422, and RS-485.
• Local Availability & Support: Being based in Gazipur, we offer convenient access to this HMI, along with technical assistance to help with selection, programming, and integration.
• User-Friendly Programming: The straightforward DOPSoft software simplifies project creation for basic applications.

Applications:

The Delta HMI DOP-AS38BSTD is well-suited for a broad spectrum of industrial applications in Bangladesh, including:

• Simple machine control and status monitoring.
• Compact control panels in various industries (e.g., small packaging machines, textile equipment, basic conveying systems).
• Applications requiring basic operator interaction and data display.
• Retrofitting older machines with limited space for an HMI.
• Integration with Delta PLCs and other serial-communicating devices.

Price and Availability in Bangladesh:

For the BEST PRICE and current availability of the Delta HMI DOP-AS38BSTD, please CALL US at Multipurpose Automation Solution in Gazipur, Dhaka Division, Bangladesh. Our team is ready to provide you with a competitive quote and discuss the suitability of this model for your specific requirements.
