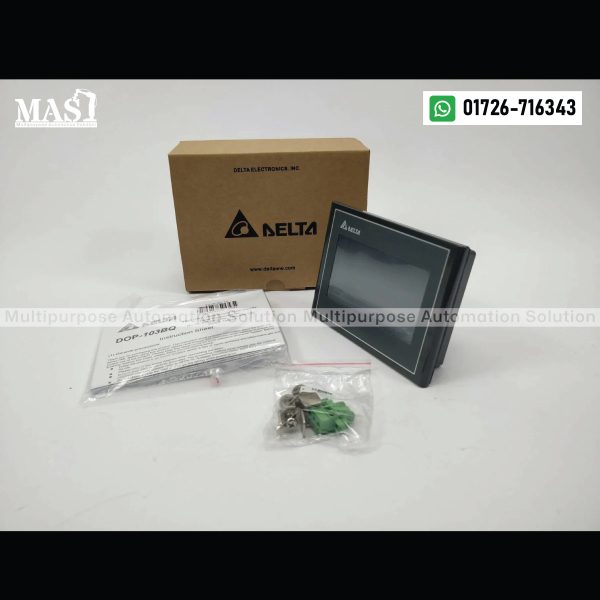

Delta HMI DOP-103BQ – 4.3-inch Widescreen TFT Touch Screen HMI – Buy in Bangladesh

Optimize your industrial automation with the compact and efficient Delta HMI DOP-103BQ. This 4.3-inch Human Machine Interface features a clear WVGA (480 x 272 pixels) widescreen TFT display and a powerful 800MHz ARM Cortex-A8 processor, offering a reliable and cost-effective solution for basic control and monitoring tasks in space-constrained environments. Part of Delta’s DOP-100 Basic Series, it provides essential HMI functionalities with robust performance. Available at Multipurpose Automation Solution in Gazipur, Dhaka Division, Bangladesh.

Key Features & Specifications of the Delta HMI DOP-103BQ:

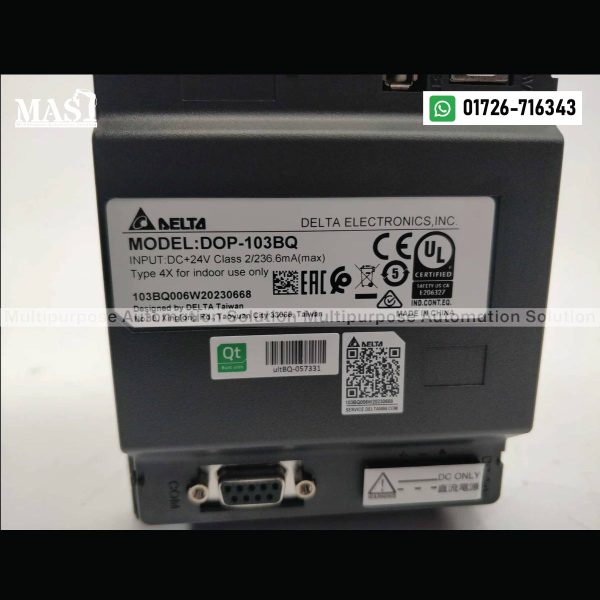

• Model: DOP-103BQ (B-Type Basic HMI)
• Display Size: 4.3-inch TFT LCD
• Resolution (Pixels): 480 x 272 (WVGA)
• Colors: 16-bit (65,536 colors)
• Luminance (Brightness): 400 cd/m² (Typical)
• Backlight: LED Backlight
• Backlight Life: > 20,000 hours (at 25°C)
• CPU: ARM Cortex-A8 (800 MHz)
• Flash ROM: 256 MB
• RAM: 256 MB
• Touchscreen: 4-wire resistive type, with a lifespan of > 1,000,000 presses

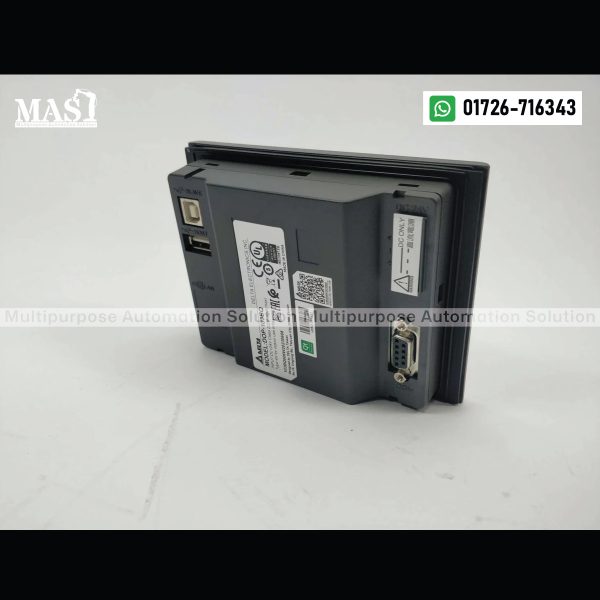

• Communication Ports:
  • COM1: RS-232 (supports hardware flow control) / RS-485
  • COM2: RS-422 / RS-485 (Total 2 serial COM ports)
  • Note: This ‘BQ’ model does NOT include a built-in Ethernet port or SD card slot.
  • USB Slave: 1 (Ver 2.0, Type B, for program download)
  • USB Host: 1 (Ver 2.0, Type A, for USB memory stick)
• Real-Time Clock (RTC): Built-in (with backup battery CR2032, approx. 3 years life at 25°C)
• Audio Output: Buzzer (Multi-tone frequency 2K – 4K Hz / 80 dB)
• Power Supply: 24V DC (-15% to +15%) (Please use an isolated power supply; Supplied by Class 2 or SELV circuit)
• Power Consumption: Max. 5.67 W
• Front Panel Protection: IP65 / NEMA4 / UL Type 4X (indoor use only)
• Cooling Method: Natural Air Circulation (Fan-less)
• Operating Temperature: 0°C to 50°C (32°F to 122°F)
• Storage Temperature: -20°C to 60°C (-4°F to 140°F)
• Software: Programmed with Delta DOPSoft.
• Dimensions (W x H x D): 137 x 103 x 37.1 mm
• Mounting Dimensions (W x H): 118.8 x 92.8 mm
• Weight: Approx. 280 g
• Certifications: CE / UL

Why Choose the Delta HMI DOP-103BQ from Multipurpose Automation Solution in Bangladesh?

At Multipurpose Automation Solution, located in Gazipur, Dhaka Division, Bangladesh, we provide genuine and high-quality industrial automation products. Choosing the Delta HMI DOP-103BQ from us ensures:

• Best Price in Bangladesh: Contact us directly to get the BEST PRICE for the Delta HMI DOP-103BQ in the Bangladesh market. We are committed to offering competitive pricing.
• Compact & Cost-Effective: Its small size and basic feature set make it an economical choice for applications with limited panel space and straightforward HMI requirements.
• Reliable Performance: Equipped with an 800MHz Cortex-A8 CPU, it provides stable operation for common control and monitoring tasks.
• Essential Serial Communication: Features two versatile serial COM ports for connectivity to a wide range of PLCs and industrial devices.
• Clear Widescreen Display: The 4.3-inch WVGA (480×272) resolution TFT LCD offers clear graphics and ample screen real estate for compact control panels.
• Robust Industrial Design: With IP65 / NEMA4 / UL Type 4X front panel protection and a fan-less design, the DOP-103BQ is built to withstand demanding industrial environments.
• Local Availability & Support: Being based in Gazipur, we offer convenient access to this HMI, along with expert technical support to assist with selection, programming, and seamless integration into your systems.

Applications:

The Delta HMI DOP-103BQ is ideally suited for a broad spectrum of industrial applications in Bangladesh, including:

• Basic machine control and visualization in compact systems (e.g., small packaging machines, individual pump controls, simple conveying lines).
• Applications requiring essential operator interaction and data display without the need for complex networking.
• Data acquisition and basic historical logging with data transfer via USB.
• Integration with Delta PLCs and other brands of controllers using serial communication.

Price and Availability in Bangladesh:

For the BEST PRICE and current availability of the Delta HMI DOP-103BQ, please CALL US at Multipurpose Automation Solution in Gazipur, Dhaka Division, Bangladesh. Our team is ready to provide you with a competitive quote and discuss the suitability of this model for your specific requirements.
